Flange pipe inner polishing machine

Flange pipe inner polishing machine is an electric machine with abrasive wheels to grind the inner side of a stainless steel double end flange pipe. The small polishing wheel will go into the inner side of the metal tube and polish the inner surface. There is also polishing machine to polishing pipe outer side and inner side together in one time.

SPECIFICATION OF FLANGE PIPE INNER POLISHING MACHINE

• Technical Details
• Flange pipe inner polishing machine
• Model no.: WSPI-1-100
• Working capacity (min.and max. Inner diameter): customized
• Working capacity (maximum pipe length): 1800mm
• Main motor: 4kw * 1piece
• Feeding motor: 0.75kw
• Polishing head moving motor: 0.4kw (with reducer, speed can be adjusted)
• Voltage: 3-phase customized
• Standard with 1 set grinding wheel
• Gross weight: 1500kgs
• Dimension: 4600x700x1500

VIDEO OF FLANGE PIPE INNER POLISHING MACHINE

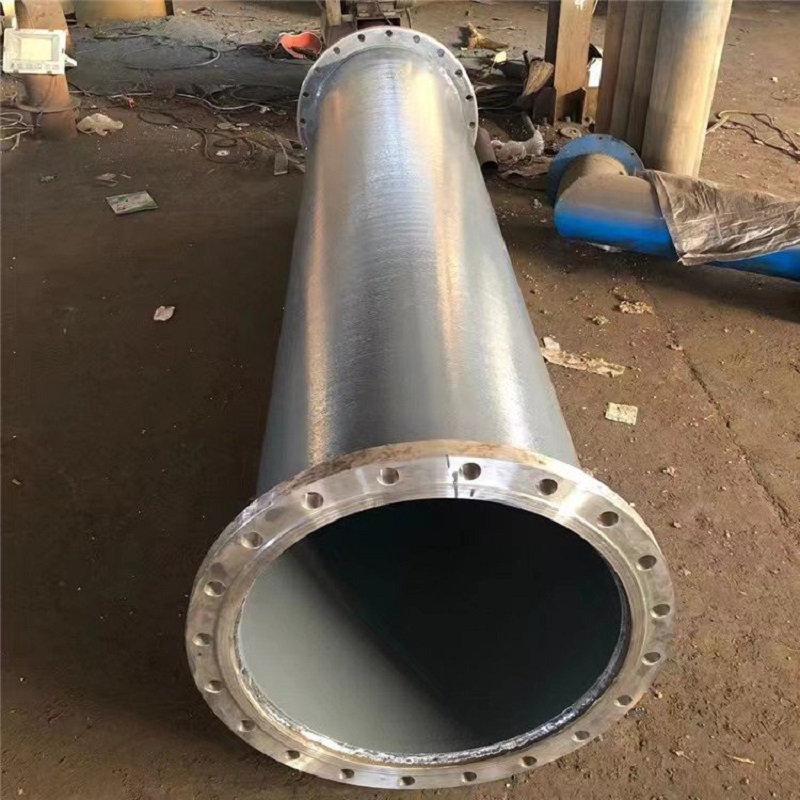

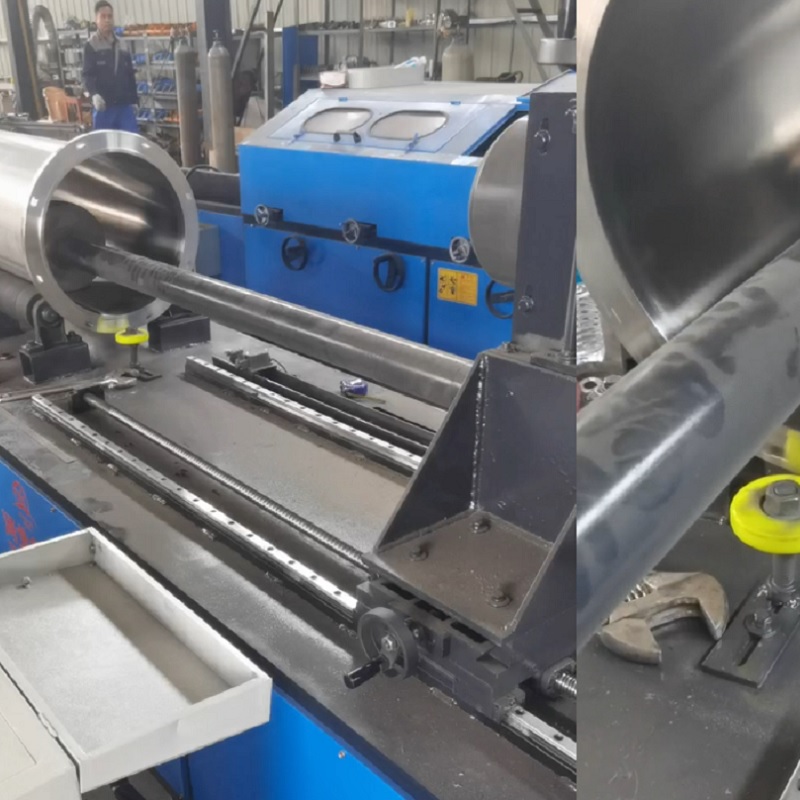

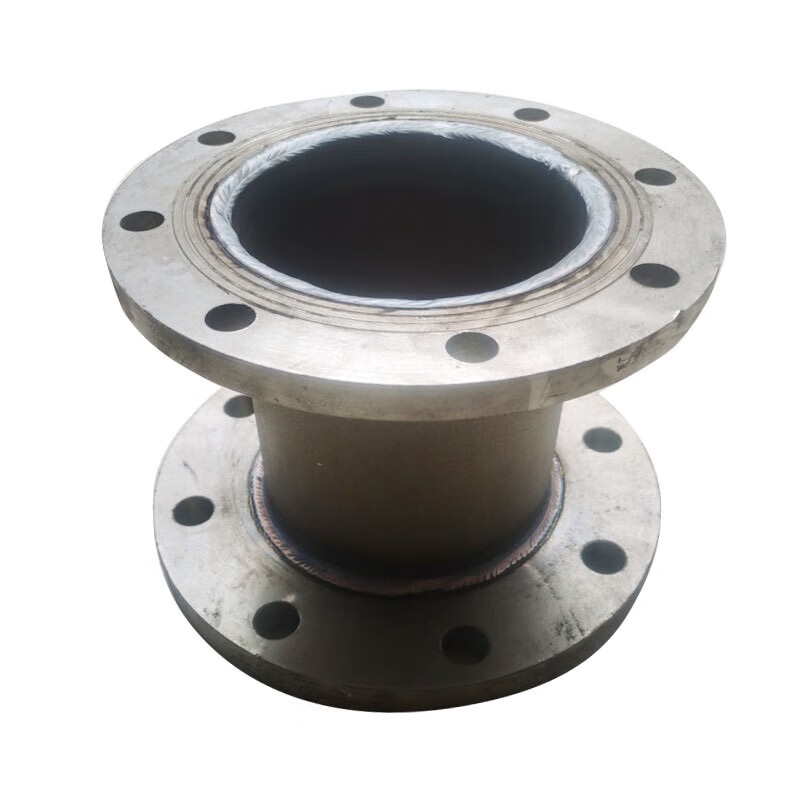

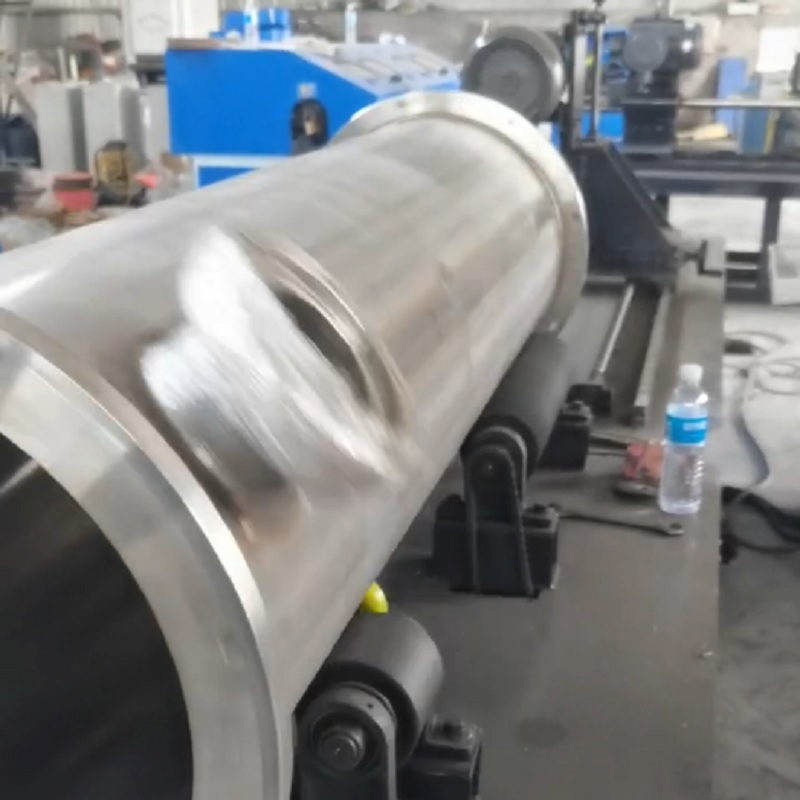

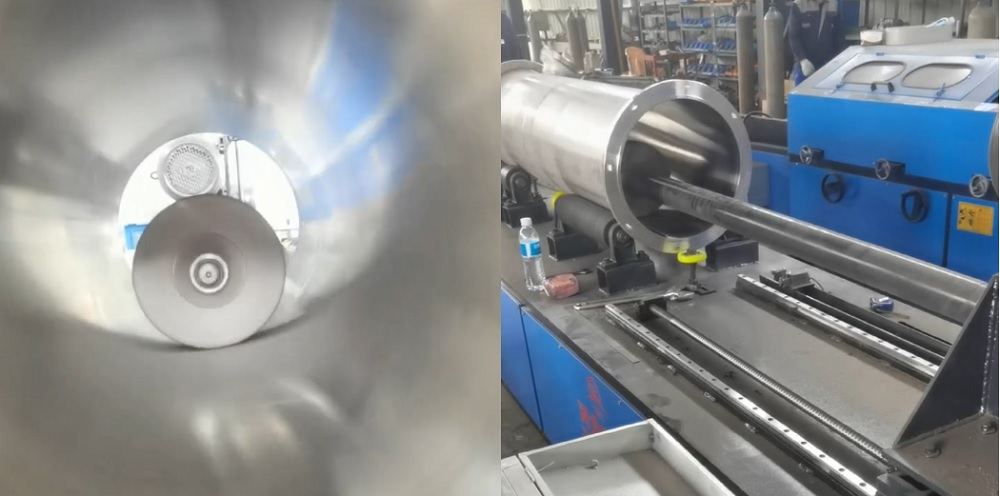

PICTURE OF PIPE INNER POLISHING MACHINE

FIND MORE PIPE POLISHING MACHINE

FIND MORE POLISHING FINISH

POLISHING MACHINE MANUFACTURER

Hangzhou Wise Machinery Co., Ltd. is a factory based in China for producing and exporting polishing machine.
Our main products pipe polishing machine is suitable for polishing metal tubes such as steel pipe, stainless steel pipe, copper pipe and aluminium piping, etc. We have got a wide variety of pipe polishing machine, for instance the round pipe polishing machine, round bar polishing machine, square and rectangular pipe polishing machine as well as the polishing machine for steel sheet plate. Our goal is to provide our client with the good value and durable polishing machine.
