How To Use Pipe Polishing Machine Introduction of the centerless pipe polishing machine – Working theory of tube polishing machine 1. The polishing wheel driven by the main motor belt will rotate to polishing the surface of the pipes. The minimum diameter of pipe can be 3mm, while the maximum diameter of pipe is 100mm. The speed of main polishing wheel motor is 1420rpm, while the no-load polishing wheel speed is 2840rpm. 2. Guide wheel is driven by a DC motor 1700rpm connecting with a belt and a reducer becoming 200-500rpm. The rubber guide wheel are rotating in same direction but slower speed than abrasive wheel to keep the pipe rotating. In the new design, the guide wheel is not vertical to the tray, but inclined (in the old design the wooden tray is inclined) so that the pipe can move forward. 3. The speed of the pipe feeding is adjustable. For big diameter pipe such as 100mm the speed can be 3 meters/min, while for small diameter such as 25mm tube the speed can be 8 meters/min. There is a speed regulation knob on the electrical cabinet. 4. The right side hand wheel is set before shipment, there is

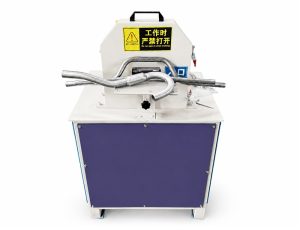

How To Run A Planetary Pipe Polishing Machine For Bent Pipe Introduction Of Bent Pipe Polishing Machine The planetary pipe polishing machine is made for polishing both straight and bending metal pipe and tubes such as stainless steel pipe, steel pipe, aluminium pipe and copper pipes. The machine are equipped with one electric motor, which are connected to the belt and drive the aluminum round plate to rotate. When we run the machine, both the big aluminum plate and sand belt will be rotating. The common two models are 1mm-70mm and 1mm-160mm. The blue plastic gear drive the belt to move. User’s Manual Of Planetary Pipe Polishing Machine Loosen the two screw in the back of aluminum plate, install the correct grit sand belt to the machine. Tighten the screw make sure the sand belt have got the correct tension and the distance between two send belt fits the pipe diameter. The frequency converter makes it possible to adjust the speed of sand belt.

How To Use Steel Plate Polishing Machine Description Of Metal Sheet Plate Polishing Machine How To Use Steel Plate Polishing Machine – The PG-400-Q metal sheet plate polishing machine is designed for polishing stainless steel, brass, aluminum and other alloy metal sheet plate. 1.There is totally 4 motors on this machine. (Two of them are polishing motors.One is conveyor motor. One is sand belt ascending and descending motor.) 2.The maximum width of plate that this machine can polish is 400mm, while the maximum thickness of the plate can be up to 100mm. 3.The machine have automatic deviation correction function, when the sand belt move to left or right, it will be adjusted to the right position automatically. 4.There is four roller with spring that press the machine fix the steel plate on the platform. 5.The life span a sand belt is 2000-3500 meters polishing. (This data vary depending on to the material, actual roughness and pressing force etc..) Preparation Before Operating The Plate Sanding Machine Plate should be flat, if the plate is deformed, the polishing might be not successful. Prepare 0.4Mpa air compressor for this machine. Technical Specification Of Metal Polishing Machine As Example Name Data MODEL PG-400-Q VOLTAGE

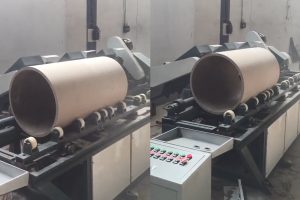

The Maximum And Minimum Diameter Capacity Of A Pipe Polishing Machine So far the maximum and minimum diameter capacity of a pipe polishing machine is 1mm to 800mm, we can also customize machine as client requirement. For big diameter heavy pipes, an extra feeding platform (feed-in & feed-out) is a must.

The Life Of Polishing Wheel The life span of an abrasive wheel will be around 3000 meters to 3500 meters tube polishing.

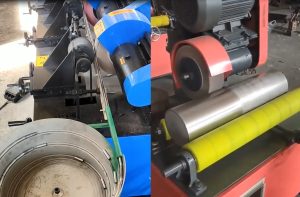

The Difference Of Vertical Type And Horizantal Type Tube Polishing Machine The left one are horizantal type and the right one in below picture are vertical type tube polishing machine. It is different design, the horizantal type is suitable for short and small diameter tubings, while the vertical type fits big diameter pipes and long pipes.

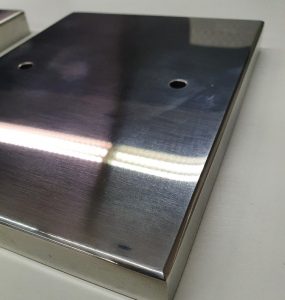

Metal Plate Mirror Polishing Usually to polish a stainless steel sheet plate require the machine to have multiple polishing wheels on a single machine, for below products if you want to polish it from a rough surface to mirror finish, you will have to use a 12-station machine (with 12 polishing head).

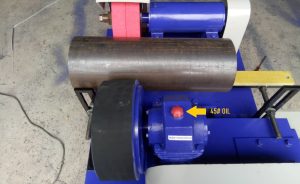

Maintenance Of Tube Polishing Machine Inject 30# grease lubricant on the main shaft, transmission and screw rod. Add 45# oil to the gearbox of guide wheel.
