Embossed pipe polishing machine

Embossed pipe polishing machine is for round shape pipe or bolt polishing, especially for embossed part grinding. We had made a special groove on the polishing wheel, so even if your work piece have some embossed part on it our polishing machine also can handle it.

TECHNICAL DATA OF EMBOSSED PART POLISHING MACHINE

• Embossed pipe polishing machine
• Model:WSPR-1-100
• Working capacity (min.and max.diameter):3-100mm
• Working capacity (min.and max.pipe length):1-3000mm
• Station no.:1
• Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
• Abrasive wheel speed: 2800rpm
• Abrasive wheel size:Dia250xthickness80mm,hole32mm
• Wheel motor:4kw
• Feeding motor:4kw
• Total power:4kw
• Consumption:9A
• Voltage:single-phase / 3-phase customized
• Standard with 1 set grinding wheel
• Gross weight:200kgs
• Dimension:950x950x1100mm (wooden case size)

VIDEO OF EMBOSSED TUBE POLISHING MACHINE

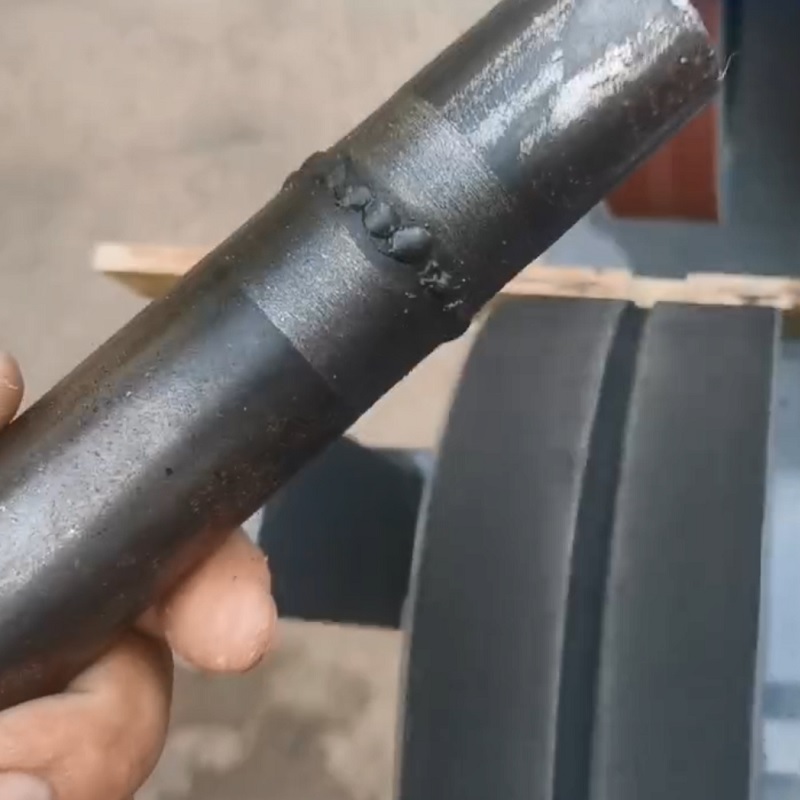

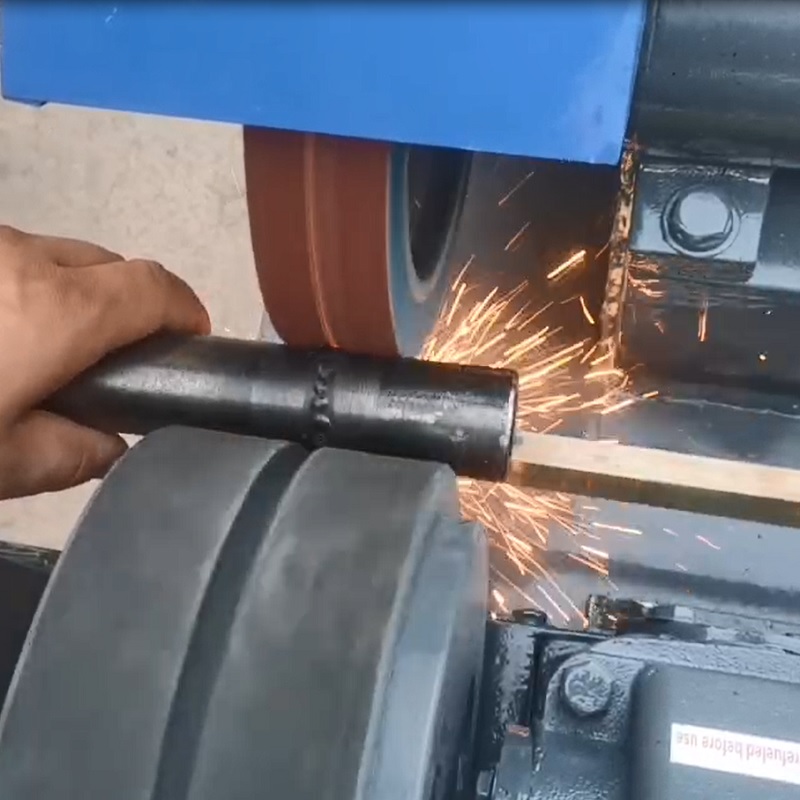

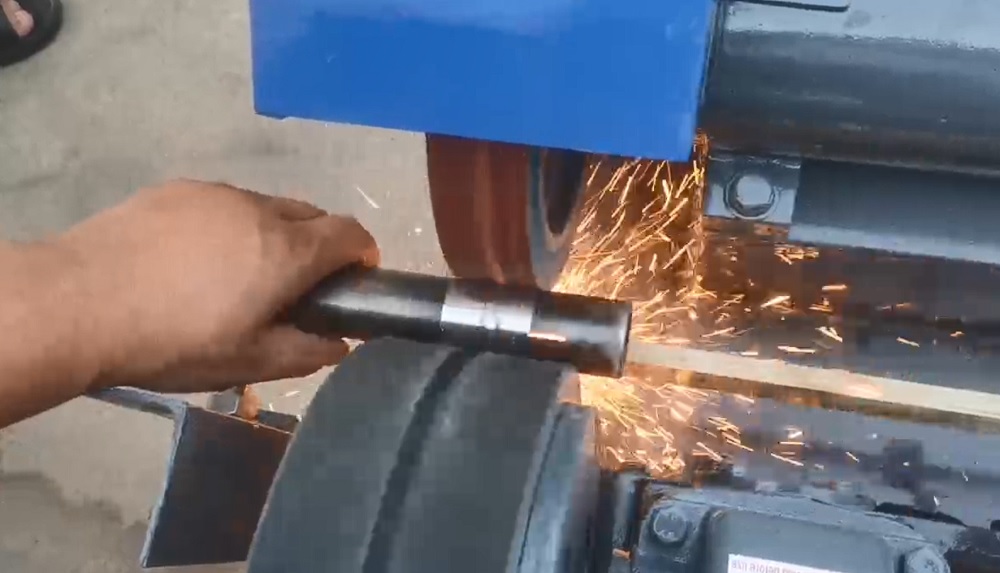

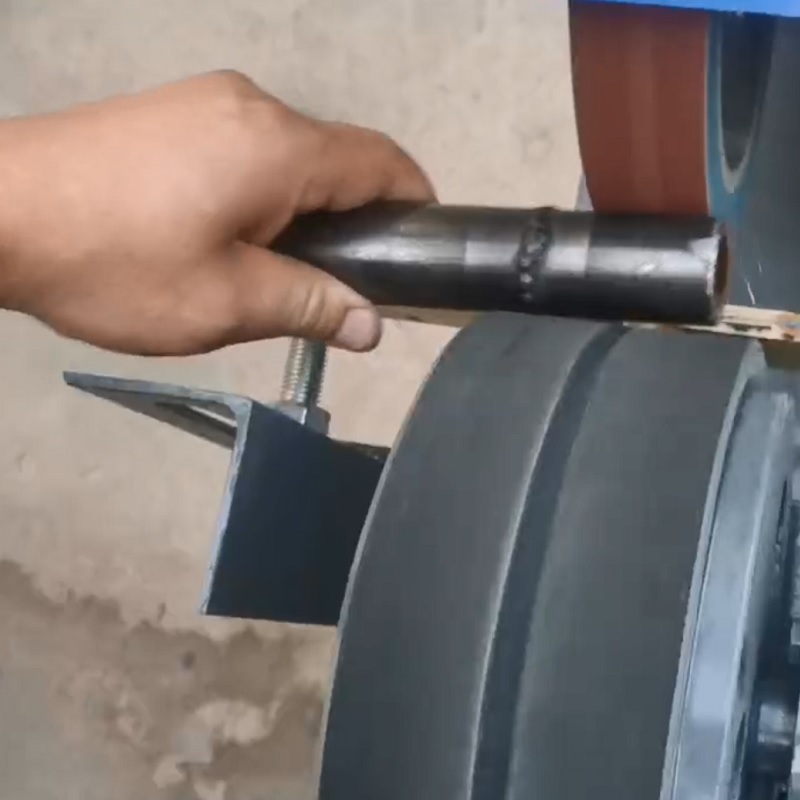

PICTURES OF EMBOSSED PIPE POLISHING MACHINE

FIND MORE PIPE POLISHING MACHINE

FIND MORE POLISHING FINISH

POLISHING MACHINE MANUFACTURER

Hangzhou Wise Machinery Co., Ltd. is a factory based in China for producing and exporting polishing machine.
Our main products pipe polishing machine is suitable for polishing metal tubes such as steel pipe, stainless steel pipe, copper pipe and aluminium piping, etc. We have got a wide variety of pipe polishing machine, for instance the round pipe polishing machine, round bar polishing machine, square and rectangular pipe polishing machine as well as the polishing machine for steel sheet plate. Our goal is to provide our client with the good value and durable polishing machine.
