Angle steel grinding machine
- Technical Details
- Angle steel grinding machine
- Model no. WSAS-1-120
- Station no. 1
- Abrasive wheel speed 2800rpm
- Abrasive wheel size Dia250xthickness80mm,hole32mm
- Wheel motor 4kw
- Feeding motor 0.75kw
- Total power 18kw
- Voltage 3-phase customized
- Standard with up/down/left/righttotally four grinding wheel each working position
- Gross weight 1300kgs
- Dimension 1800x1700x1500 (wooden case size)
Angle steel grinding machine-PRODUCT DESCRIPTION

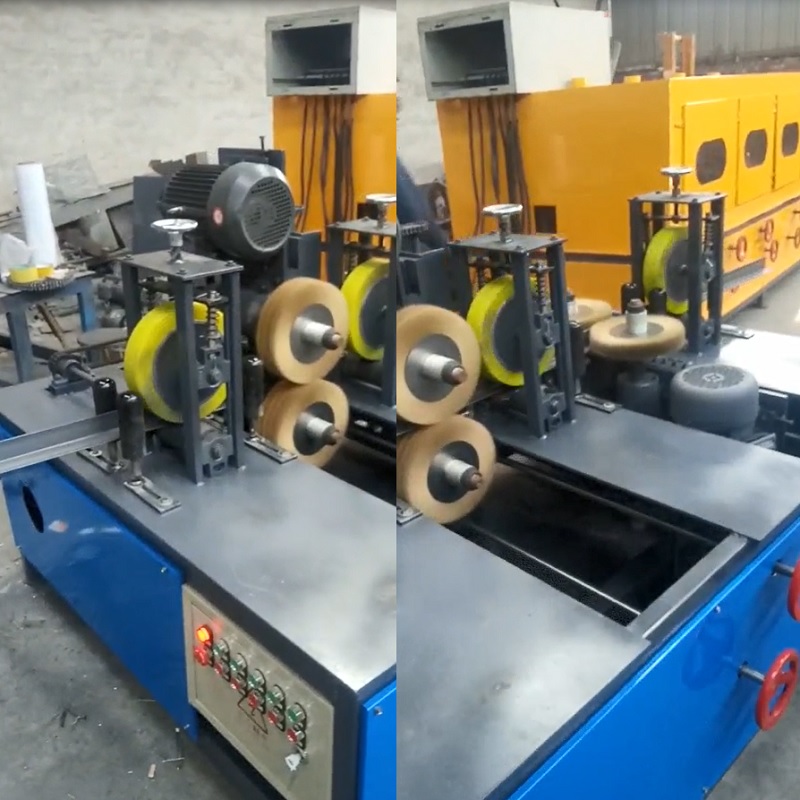

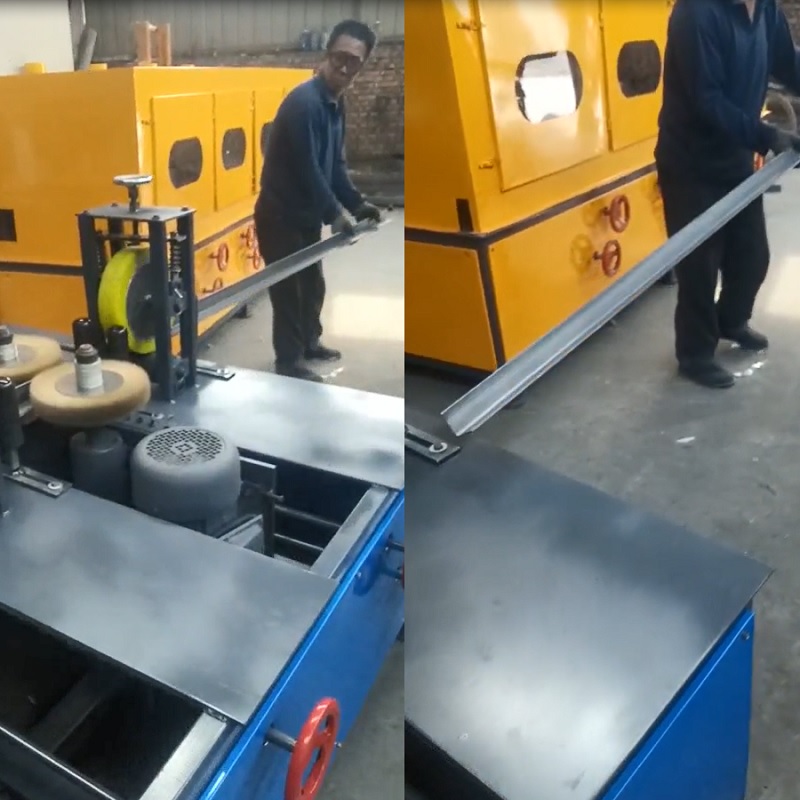

Angle steel grinding machine is designed for polishing four side of the angle steel surface. Each working position have 4 polishing wheels on it.
| Item# | WSAS-1-120 | Abrasive wheel size | Dia250xthickness80mm | |||
| Working capacity | 120mm | Wheel motor | 4kw x 4pieces | |||
| Working capacity | any | Feeding motor | 0.75kw | |||
| Station no. | 1 Station up/down/left/right | Voltage | single-phase / 3-phase | |||
| Feeding speed | 1-6m/min(adjustable) | Gross weight | 1300kgs | |||
| Abrasive wheel speed | 2800rpm | Dimension | 1800*1700*1500mm |
APPLICATION OF ANGLE STEEL POLISHING MACHINE
Angle steel grinding machine are for below applications.

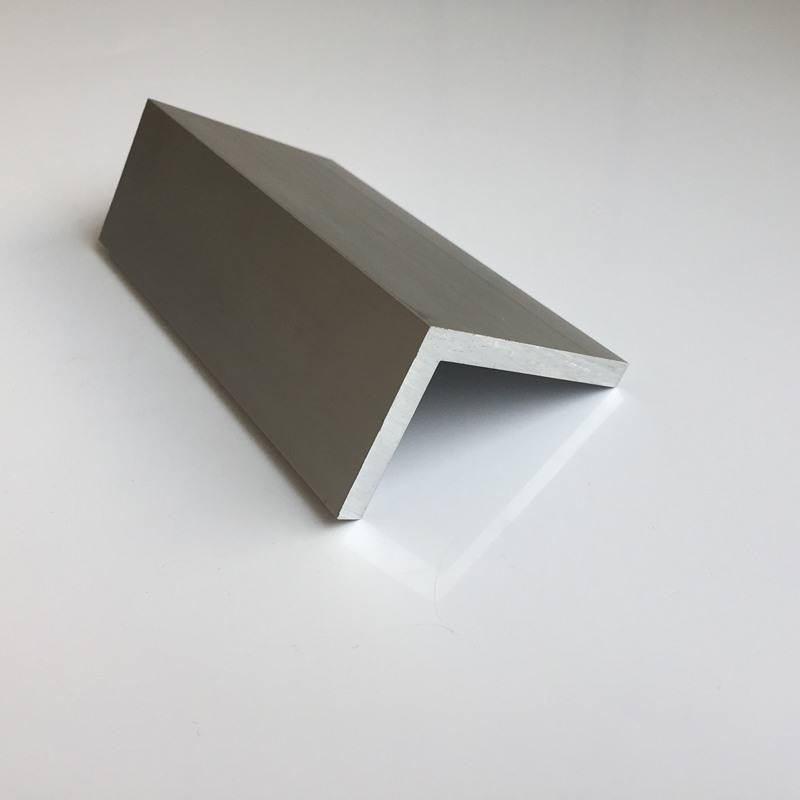

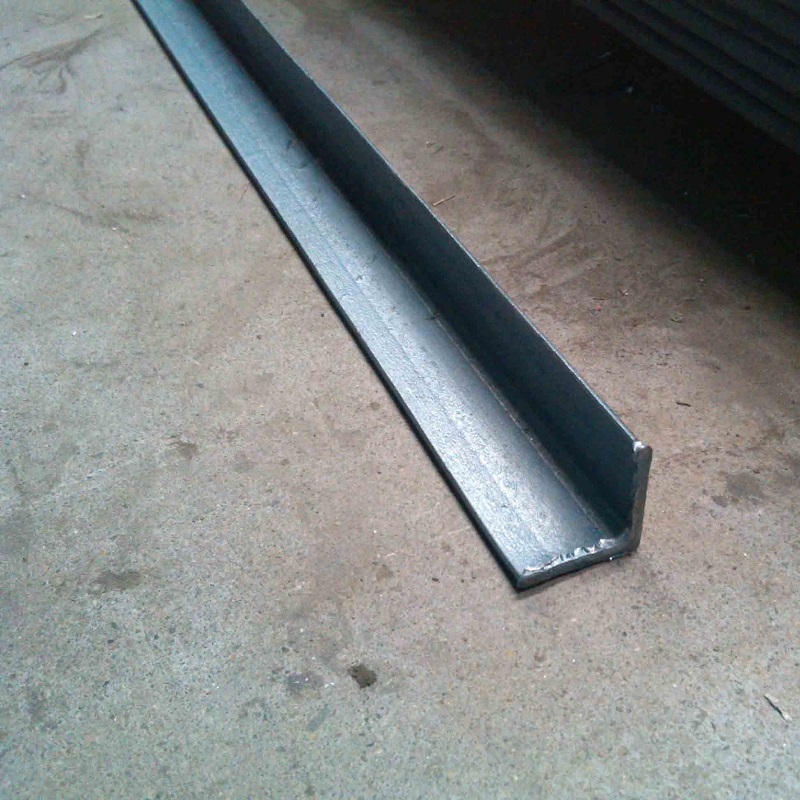

- Angle steel polishing
- U-steel polishing
- Profile polishing
- Rectangular tube polishing
VIDEO OF ANGLE STEEL GRINDING MACHINE
FIND MORE POLISHING MACHINE
| Please click below links to see more options of polishing machines. | |
| ROUND STRAIGHT PIPE POLISHING MACHINE | SINGLE-HEAD PIPE POLISHING MACHINE |
| MULTI-HEAD PIPE POLISHING MACHINE | |
| ROUND BENT PIPE POLISHING MACHINE | BENT PIPE POLISHING MACHINE |
| ROUND ROD POLISHING MACHINE | BOLT AND ROD POLISHING MACHINE |
| SQUARE PIPE POLISHING MACHINE | SQUARE AND RECTANGULAR PIPE POLISHING MACHINE |
| PLATE POLISHING MACHINE | METAL SHEET PLATE POLISHING MACHINE |
FIND MORE POLISHING FINISH
| Please click below links to see more options of polishing effect. | |
| RUST REMOVAL | REMOVE THE RUST |
| SATIN POLISHING | SATIN FINISH |
| HAIR LINE POLISHING | HAIR LINE FINISH |
| MIRROR POLISHING | MIRROR FINISH |
| REMOVE PITS | REMOVE ALL PITS |
POLISHING MACHINE MANUFACTURER
Hangzhou Wise Machinery Co., Ltd. is a factory based in China for producing and exporting polishing machine.
Our main products is suitable for polishing metal tubes such as steel pipe, stainless steel pipe, copper pipe and aluminium piping, etc. We have got a wide variety of polishing machine, for instance the round pipe, round bar, square and rectangular polishing as well as the polishing machine for steel sheet plate. Our goal is to provide our client with the good value and durable polishing machine.
F.A.Q.
We have both manual feeding and automatic feeding.
We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.
We have two different type machine, one is to polish two side of pipe, while another is 4-side polishing which can polish left, right, top and bottom side in one time.
Single-head machine means there is only single one polishing head (with up/down/left/right) four wheels while for multi-head machine there is several working position with different material of polishing wheels. More polishing head bring you brigher grinding finish.
Yes, it works for both of them.
Hangzhou Wise Machinery Co., Ltd. are professional pipe polishing machine manufacturer located in Xingtai city of China, we are close to Port Tianjin and Port Qingdao. We mainly sell to North America, Europe and the Middle East countries.
We accept T/T payment directly to our company account and we can also accept payment through Paypal. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship from one set.
We will test at least one pipes on every polishing machine before shipping out. For all of our machine we offer one year warranty.
We use wrapping film and wooden crate to pack each machine.
Yes, we have ready stock for regular machines, but if your voltage are different from what are in China we will need 7 to 10days to customize motor for you.
Get A Quote
Related Products
Related products
-
angle steel and u-steel polishing machine
U-channel steel polishing machine
Rated 0 out of 5Read more -
rectangular and square tube polishing machine

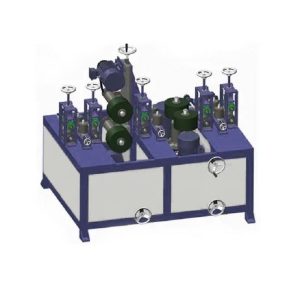

Square Tube Polishing Machine
