Rectangular steel polishing machine
- Technical Details
- rectangular steel polishing machine
- Model no. WSPF-1-120
- Station no. 1
- Abrasive wheel speed 2800rpm
- Abrasive wheel size Dia250xthickness80mm,hole32mm
- Wheel motor 4kw
- Feeding motor 0.75kw
- Total power 18kw
- Voltage 3-phase customized
- Standard with up/down/left/righttotally four grinding wheel each working position
- Gross weight 1300kgs
- Dimension 1800x1500x1450 (wooden case size)

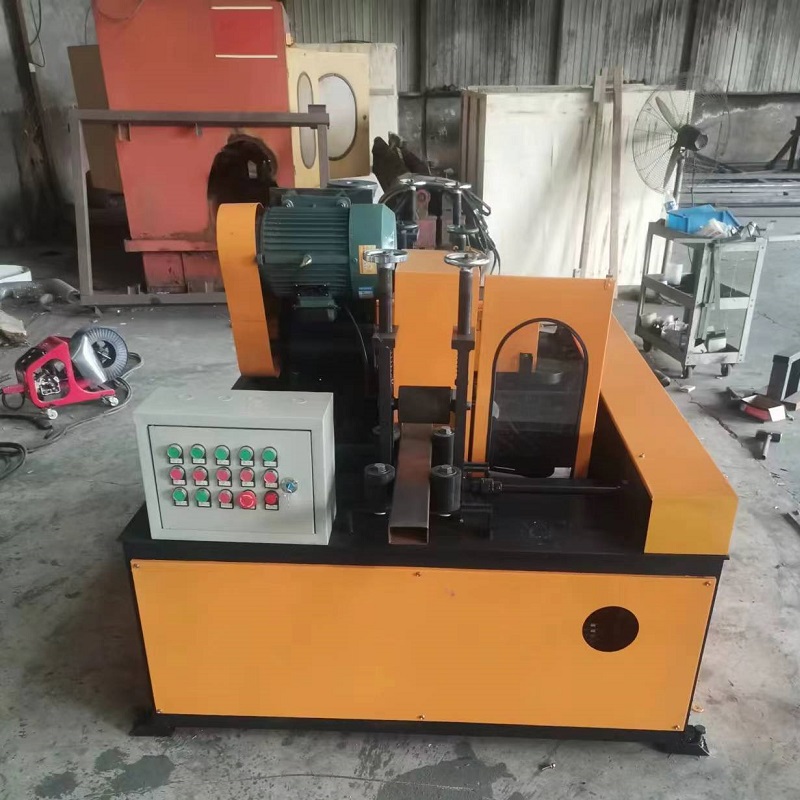

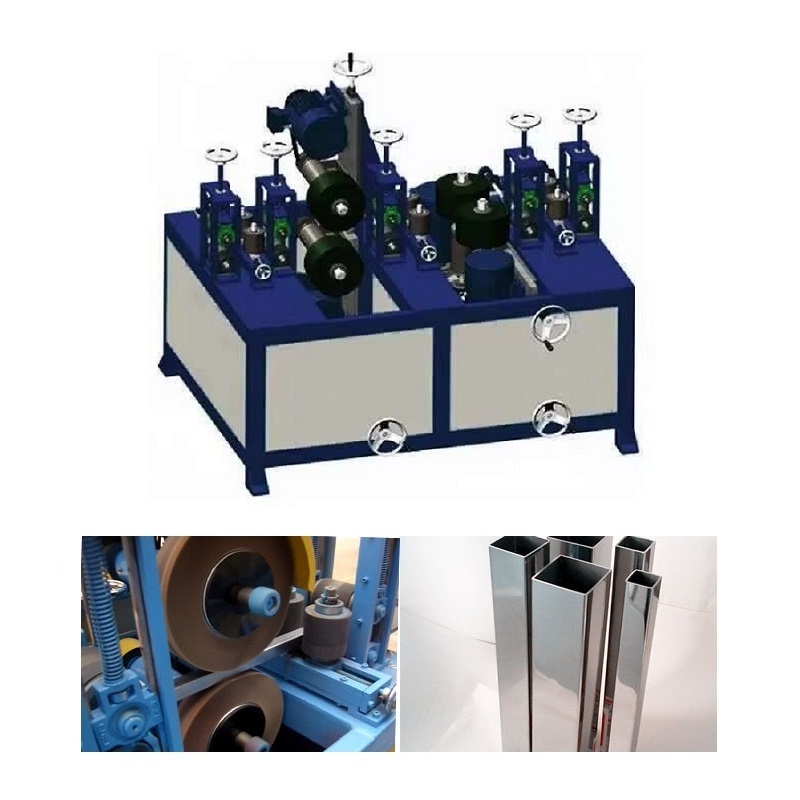

Rectangular steel polishing machine-PRODUCT DESCRIPTION
Rectangular steel polishing machine is a machine that for polishing grinding the four side of a square profile or square bar. Each station of machine has got four polishing wheels on it. Main functions of square tube polishing machine: square tube polishing machine is suitable for rust removal and mirror polishing of various metal outer surfaces of rectangular section and profiles. The polishing adopts the form of dry polishing. It can polish for different thicknesses each time by changing the wheel position. Aluminum, iron, copper, stainless steel square surface for high-quality sanding, polishing, square tube polishing machine is to achieve automatic surface polishing. It is suitable for small workpieces, metal workpieces and automatically polish the surface gloss and remove burrs. One person can operate multiple devices. It is mainly for handicraft processing factories, hardware processing factories, bathroom processing factories and other customer groups.
PRODUCT SPECIFICATION OF RECTANGULAR STEEL POLISHING MACHINE
- rectangular steel polishing machine
- Model no. WSPF-1-120
- Station no. 1
- Abrasive wheel speed 2800rpm
- Abrasive wheel size Dia250xthickness80mm,hole32mm
- Wheel motor 4kw
- Feeding motor 0.75kw
- Total power 18kw
- Voltage 3-phase customized
- Standard with up/down/left/righttotally four grinding wheel each working position
- Gross weight 1300kgs
- Dimension 1800x1500x1450 (wooden case size)
| Item# | WSPF-1-120 | Abrasive wheel size | Dia250xthickness80mm | |||
| Working capacity | 120mm | Wheel motor | 4kw x 4pieces | |||
| Working capacity | any | Feeding motor | 0.75kw | |||
| Station no. | 1 Station up/down/left/right | Voltage | single-phase / 3-phase | |||
| Feeding speed | 1-6m/min(adjustable) | Gross weight | 1300kgs | |||
| Abrasive wheel speed | 2800rpm | Dimension | 1800*1500*1450mm |
APPLICATION OF RECTANGULAR PIPE POLISHING MACHINE

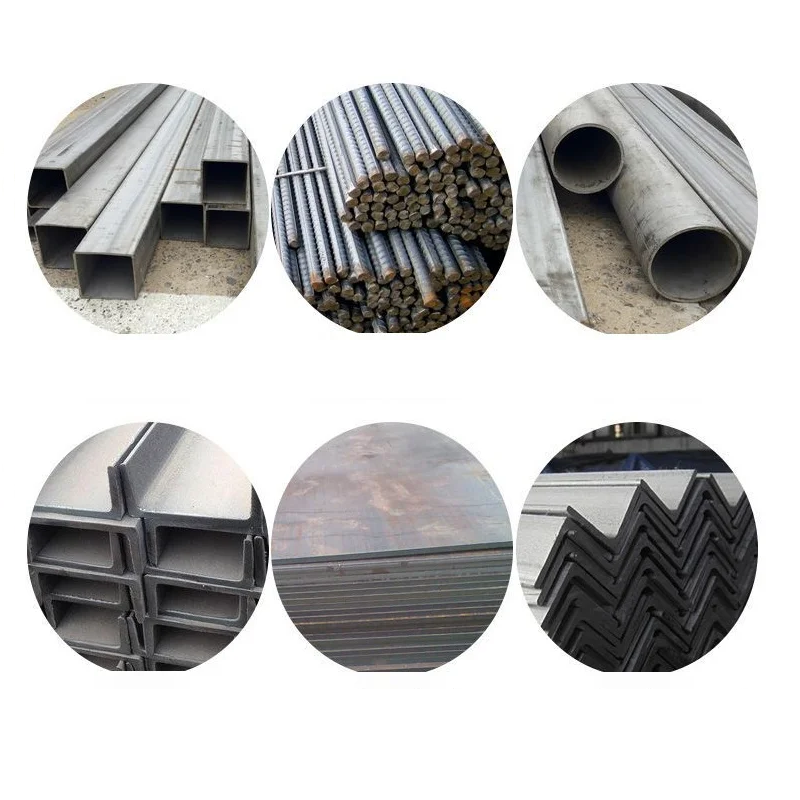

Rectangular steel polishing machine are widely used in below applications.
- Angle steel polishing
- U-steel polishing
- Aluminum profile polishing
- Rectangular tube polishing
VIDEO OF RECTANGULAR TUBE POLISHING MACHINE
FIND MORE PIPE POLISHING MACHINE
| Please click below links to see more options of polishing machines. | |
| ROUND STRAIGHT PIPE POLISHING MACHINE | SINGLE-HEAD PIPE POLISHING MACHINE |
| MULTI-HEAD PIPE POLISHING MACHINE | |
| ROUND BENT PIPE POLISHING MACHINE | BENT PIPE POLISHING MACHINE |
| ROUND ROD POLISHING MACHINE | BOLT AND ROD POLISHING MACHINE |
| SQUARE PIPE POLISHING MACHINE | SQUARE AND RECTANGULAR PIPE POLISHING MACHINE |
| PLATE POLISHING MACHINE | METAL SHEET PLATE POLISHING MACHINE |
FIND MORE POLISHING FINISH
| Please click below links to see more options of polishing effect. | |
| RUST REMOVAL | REMOVE THE RUST |
| SATIN POLISHING | SATIN FINISH |
| HAIR LINE POLISHING | HAIR LINE FINISH |
| MIRROR POLISHING | MIRROR FINISH |
| REMOVE PITS | REMOVE ALL PITS |
POLISHING MACHINE MANUFACTURER
Hangzhou Wise Machinery Co., Ltd. is a factory based in China for producing and exporting polishing machine.
Our main products pipe polishing machine is suitable for polishing metal tubes such as steel pipe, stainless steel pipe, copper pipe and aluminium piping, etc. We have got a wide variety of pipe polishing machine, for instance the round pipe polishing machine, round bar polishing machine, square and rectangular pipe polishing machine as well as the polishing machine for steel sheet plate. Our goal is to provide our client with the good value and durable polishing machine.
F.A.Q.
We have both manual feeding and automatic feeding.
We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.
We have two different type machine, one is to polish two side of pipe, while another is 4-side polishing which can polish left, right, top and bottom side in one time.
Single-head machine means there is only single one polishing head (with up/down/left/right) four wheels while for multi-head machine there is several working position with different material of polishing wheels. More polishing head bring you brigher grinding finish.
Yes, it works for both of them.
Hangzhou Wise Machinery Co., Ltd. are professional pipe polishing machine manufacturer located in Xingtai city of China, we are close to Port Tianjin and Port Qingdao. We mainly sell to North America, Europe and the Middle East countries.
We accept T/T payment directly to our company account and we can also accept payment through Paypal. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship from one set.
We will test at least one pipes on every polishing machine before shipping out. For all of our machine we offer one year warranty.
We use wrapping film and wooden crate to pack each machine.
Yes, we have ready stock for regular machines, but if your voltage are different from what are in China we will need 7 to 10days to customize motor for you.
