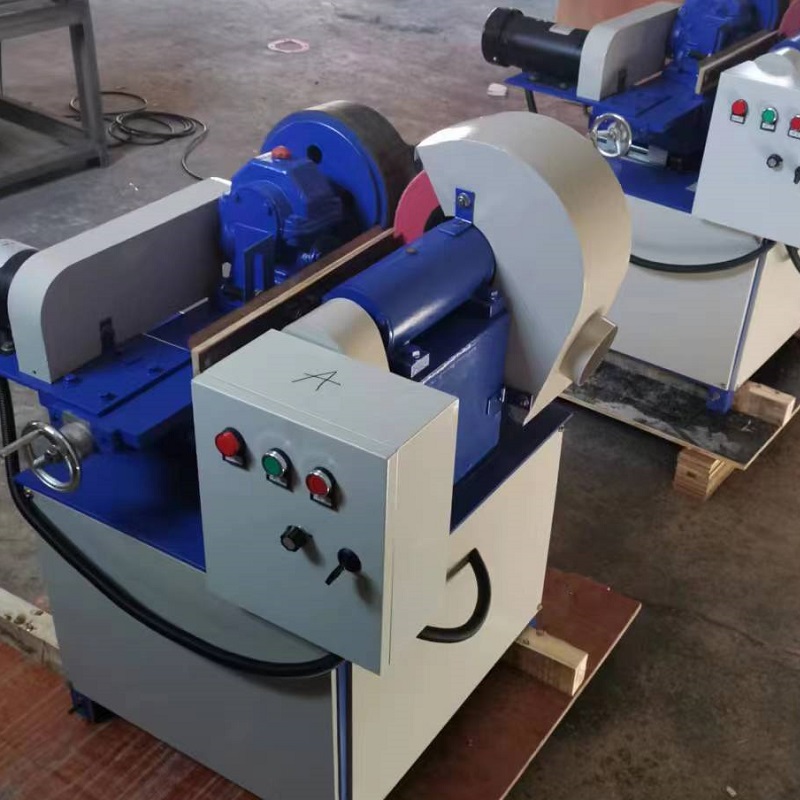

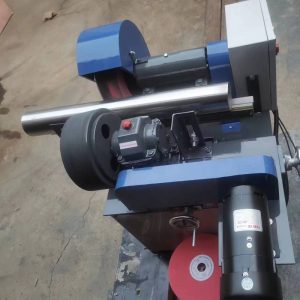

Taper Tube Polishing Machine Reducing Pipe Buffing

Technical Data
Taper Tube Polishing Machine Reducing Pipe Buffing
Model: WSPR-1-100
Capacity of diameter:2-100mm
Station number:one
Feeding speed:0-6m/min(adjustable)
Abrasive wheel speed:1400rpm
Abrasive wheel size:dia250 x thickness80mm, hole32mm
Wheel motor:4kw
Feeding motor:4kw
Total power:4.4kw
Voltage:single phase / three phase
Standard with 1 set grinding wheel
Gross weight:200kgs
Dimension:950x950x1100mm (wooden crate size)

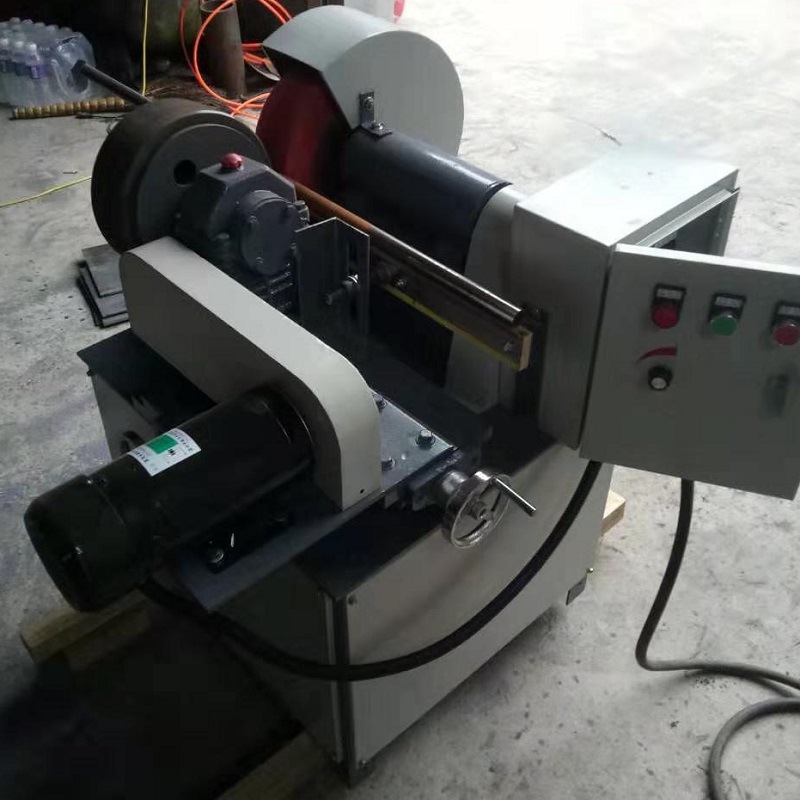

Taper Tube Polishing Machine Reducing Pipe Buffing-PRODUCT DESCRIPTION

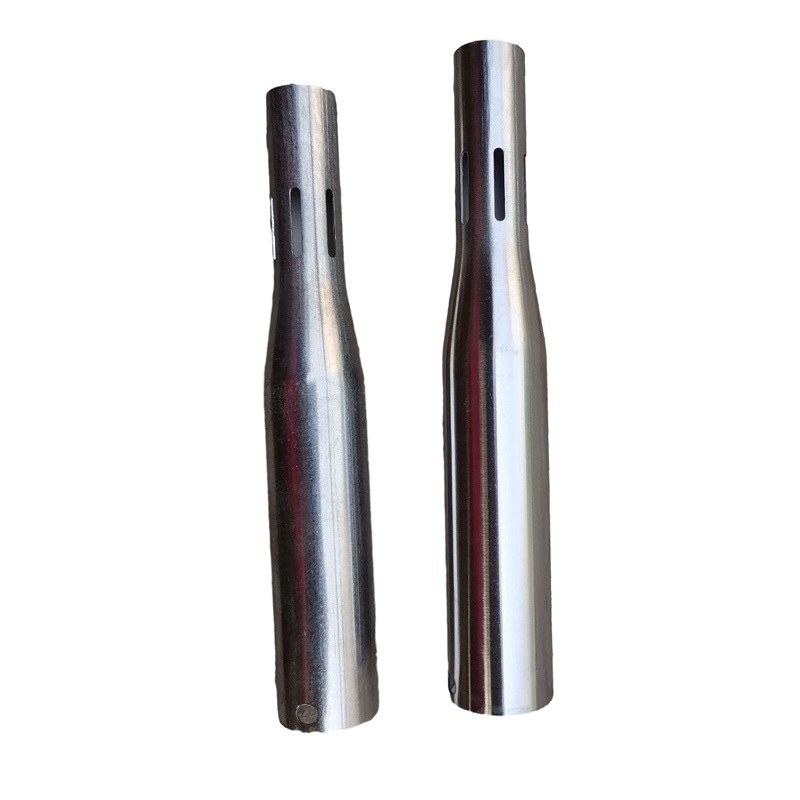

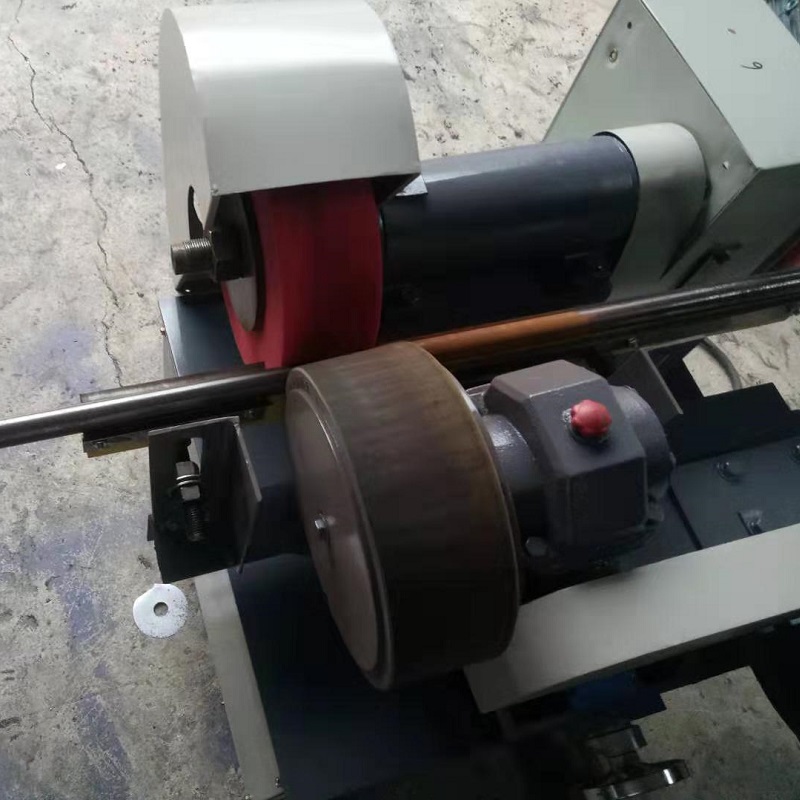

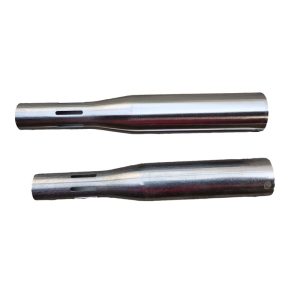

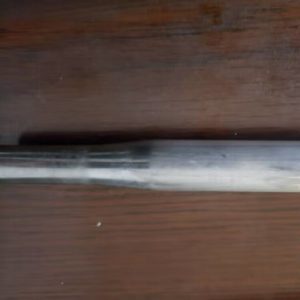

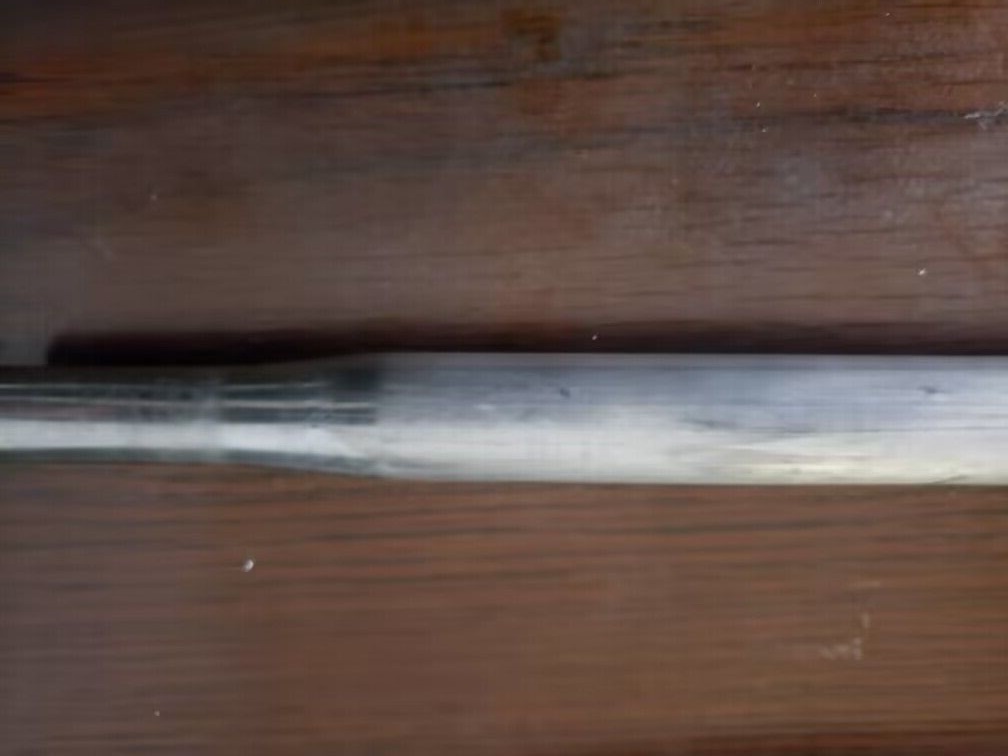

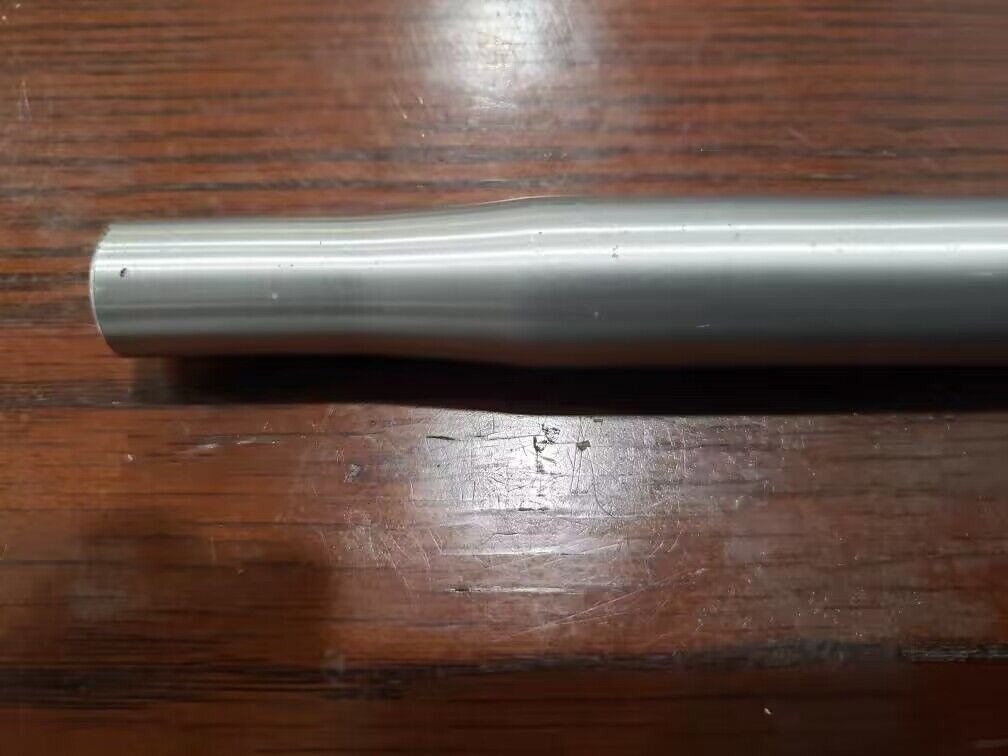

This machine we design for polishing tapered tubes, but the diameter reducing can not be too much from one end of the pipe to another end. For example, one side diameter is 60mm, then the other side can not be less than 30mm. The only thing you need to do is to insert the tube when the machine is on, the polishing wheel and guide wheel will polish both small diameter end and big diameter end and feed-out after finish. Please feel free to send inquiry to us with the size of your metal tapered tube and pipes.

APPLICATION

Tapered pipe polishing machine are widely used for below polishing work.

Reducing pipe polishing
Taper tube polishing
Reduced tube grinding
Cone-shaped tube polishing
Conical pipe polishing
Steel conepipe grinding and polishing

FEATURE

Tapered Tube Polishing Machine Taper Tube Concial Cone Shape Shrinking Reducing Pipe Buffing Suitable for iron pipes, steel pipes, stainless steel pipes, copper pipes, aluminum pipes etc..
Mainly used for rust removal and polishing in hardware manufacturing, vehicle parts, hydraulic cylinders, steel-wood furniture, standard parts, and before and after electroplating, from rough polishing to fine polishing.
The round pipe polishing machine is to polish round pipes, round sticks and slender shafts.
Machine can be standard with various polishing wheels, not only flap wheels, hemp wheels, nylon wheels, but also wool wheels, cloth wheels, PVA wheel etc..
The stepless speed control guide wheel is simple to operate.
The optimized steel structure ensure machine stable and durable, the back side output hole connected with a dust removal blower.

TECHNICAL PARAMETER

Item#	WSPR-1-100	Abrasive wheel size	Dia250xthickness80mm
Working capacity	Diameter 2-100mm	Wheel motor	4kw
Working capacity	Length 1-3000mm	Feeding motor	0.4kw
Station no.	1 Station	Voltage	single-phase / 3-phase
Feeding speed	0-6m/min(adjustable)	Gross weight	200kgs
Abrasive wheel speed	2800rpm	Dimension	9509501100mm

VIDEO

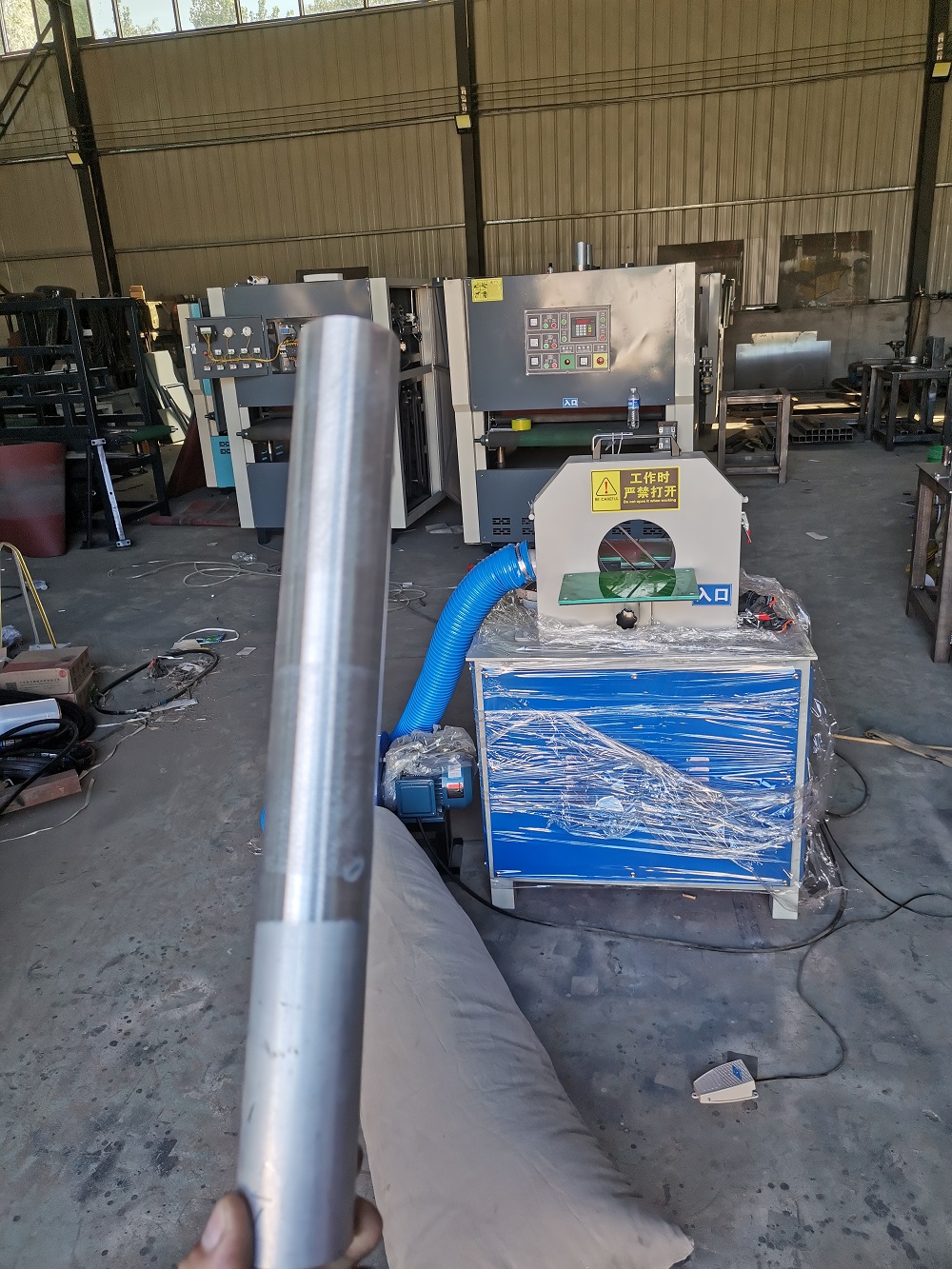

Pipe polishing machine for straight and bent pipe also available.

F.A.Q.

Who are we?

Hangzhou Wise Machinery Co., Ltd. are professional pipe polishing machine manufacturer located in Xingtai city of China, we are close to Port Tianjin and Port Qingdao. We mainly sell to North America, Europe and the Middle East countries.

How to place order?

We accept T/T payment directly to our company account and we can also accept payment through Paypal. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship from one set.

How we guarantee the quality?

We will test at least one pipes on every polishing machine before shipping out. For all of our machine we offer one year warranty.

How is the packaging?

We use wrapping film and wooden crate to pack each machine.

What accessories are included in machine?

One set free abrasive wheel for every machine. The multi-station machine also comes with air blower and dust collector. Every machine has an english manual instruction.

If the budget is limited, can I just purchase a single-station machine and change polishing wheels to get similar function as a multi-head machine?

Yes, this is possible, if you polish small quantity pipes, you can first put on a rough polishing wheels on single-head machine and after all pipes are done for first time polishing, change to another fine polishing wheel and repeat.

Is the tube polishing machine fully automatic?

We have both manual feeding and automatic feeding tube polishing machine.

What is the assembly size of the abrasive wheel?

Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.

What is the difference between single-station machine and multi-station polishing machine?

Single-head machine means there is only single one grinding wheel, while for multi-head machine there is several working position with different material of buffing wheels.

Do you have machine in stock?

Yes, we have ready stock for regular machines, but if your voltage are different from what are in China we will need 7 to 10days to customize motor for you.

What is the main function of a metal tube polishing machine?

Tube polishing machine is used for polishing the surface of a metal round, square and rectangular tube. The tube will be automatically feed in the machine. After passing through the polishing heads the tubing comes out automatically to inspection table.

What is the life span of the polishing wheel?

Each abrasive wheel work for polishing 3500meters tubes.

What kind of abrasive wheel do we use on our polishing machine?

We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.

Is this pipe polishing machine working for both round pipe and round bolt?

Yes, it works for both of them.
