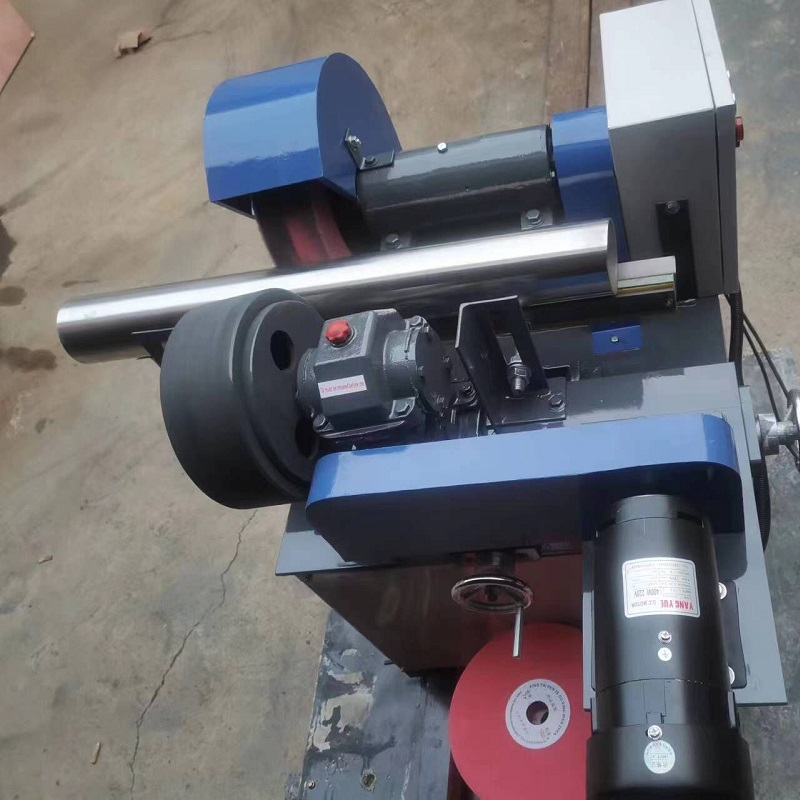

Conical tube polishing machine

  • Technical Data
  • Concial tube polishing machine
  • Model:WSPR-1-100
  • Capacity of diameter:2-100mm
  • Capacityof length: 1-3000mm
  • Station number.:one
  • Feeding speed: 1-6m/min(adjustable)
  • Abrasive wheel speed: 2800rpm
  • Abrasive wheel size:dia250 x thickness80mm, hole32mm
  • Wheel motor:4kw
  • Feeding motor:4kw
  • Total power:4.4kw
  • Voltage:single phase / three phase
  • Standard with 1 set polishingwheel
  • Gross weight:200kgs
  • Dimension:950x950x1100mm (wooden crate size)

Conical tube polishing machine-PRODUCT DESCRIPTION

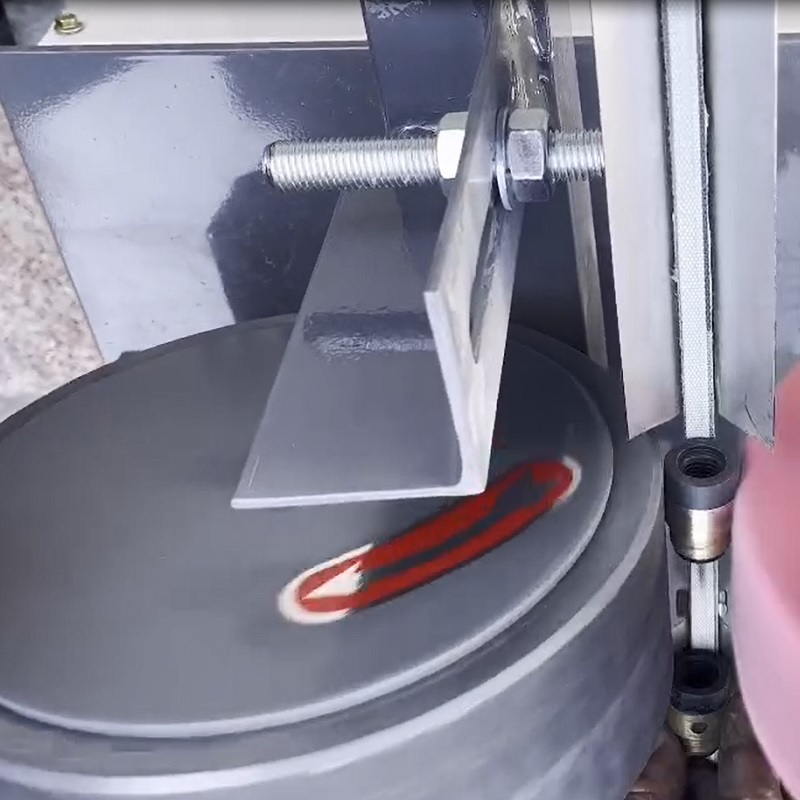

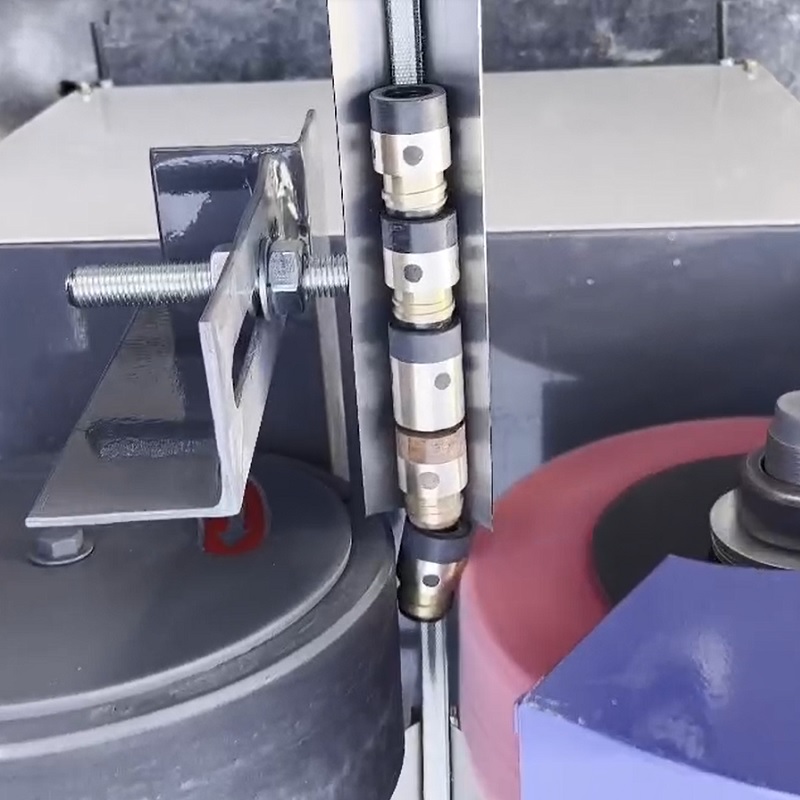

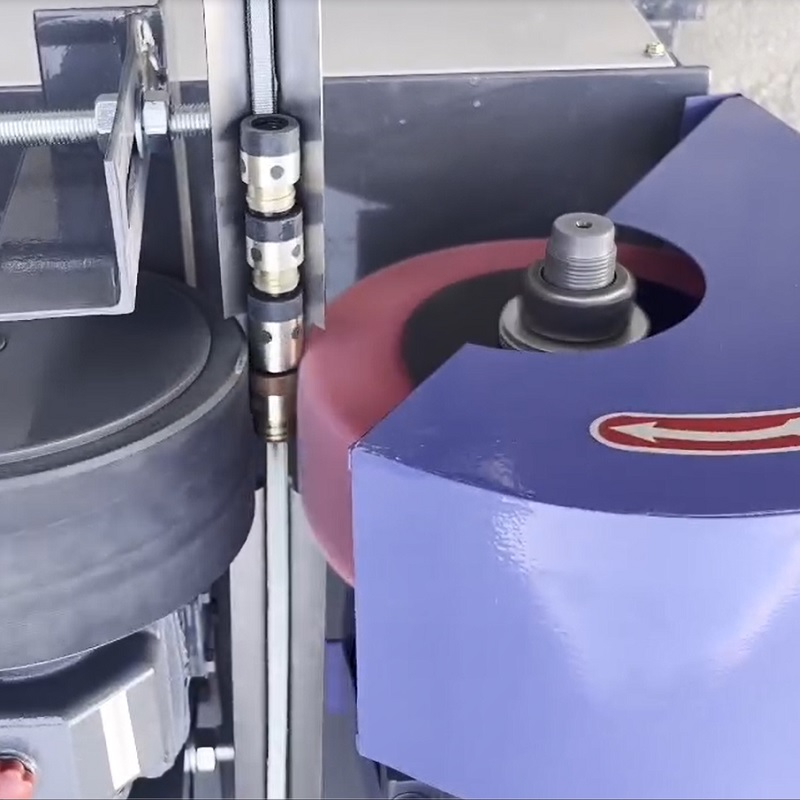

Conical tube polishing machine is for grinding and polishing copper joint lever. This machine also works for various cone shape tapered workpiece polishing.

TECHNICAL DATA OF CONICAL PIPE POLISHING MACHINE

Item# WSPR-1-100 Abrasive wheel size Dia250xthickness80mm
Working capacity Diameter 2-100mm  Wheel motor 4kw
Working capacity Length 1-3000mm Feeding motor 0.4kw
Station no. 1 Station Voltage single-phase / 3-phase
Feeding speed 0-6m/min(adjustable) Gross weight 200kgs
Abrasive wheel speed 2800rpm Dimension 950*950*1100mm

APPLICATION OF TAPER SHAPE PIPE POLISHING

  • Mainly for all kinds of iron pipe (rod), aluminum pipe, copper iron, stainless steel pipe and other hardware surface polishing, sanding, polishing, wire drawing and other processing.
  • The product we transport through the feeding wheel, and polishing wheels of different thickness can be installed to complete the effect of coarse grinding to fine polishing on the surface at one time;  The surface effect is uniform, fine, and easy to operate.
  • The distance between grinding wheels we can adjust rapidly according to the different size of the product pipe diameter.  The feeding speed can be adjusted according to the requirements of the product surface.
  • The main shaft 40 chrome material we treat by conditioning and grinding, and the main shaft adopts the original bearings imported from Japan NSK
  • The dust cover, sand belt grinding wheel and feeding rack can be selected according to requirements.

VIDEO OF TAPERED PIPE SANDING MACHINE

FIND MORE POLISHING MACHINE

Please click below links to see more options of polishing machines.
ROUND STRAIGHT PIPE POLISHING MACHINE SINGLE-HEAD PIPE POLISHING MACHINE
MULTI-HEAD PIPE POLISHING MACHINE
ROUND BENT PIPE POLISHING MACHINE BENT PIPE POLISHING MACHINE
ROUND ROD POLISHING MACHINE BOLT AND ROD POLISHING MACHINE
SQUARE PIPE POLISHING MACHINE SQUARE AND RECTANGULAR PIPE POLISHING MACHINE
PLATE POLISHING MACHINE METAL SHEET PLATE POLISHING MACHINE

FIND MORE POLISHING FINISH

Please click below links to see more options of polishing effect.
RUST REMOVAL REMOVE THE RUST
SATIN POLISHING SATIN FINISH
HAIR LINE POLISHING HAIR LINE FINISH
MIRROR POLISHING MIRROR FINISH
REMOVE PITS REMOVE ALL PITS

POLISHING MACHINE MANUFACTURER

Hangzhou Wise Machinery Co., Ltd. is a factory based in China for producing and exporting polishing machine.
Our main products  is suitable for polishing metal tubes such as steel pipe, stainless steel pipe, copper pipe and aluminium piping, etc. We have got a wide variety of polishing machine, for instance the round pipe, round bar, square and rectangular polishing as well as the polishing machine for steel sheet plate. Our goal is to provide our client with the good value and durable polishing machine.

F.A.Q.

Who are we?

Hangzhou Wise Machinery Co., Ltd. are professional pipe polishing machine manufacturer located in Xingtai city of China, we are close to Port Tianjin and Port Qingdao. We mainly sell to North America, Europe and the Middle East countries.

How to place order?

We accept T/T payment directly to our company account and we can also accept payment through Paypal. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship from one set.

How we guarantee the quality?

We will test at least one pipes on every polishing machine before shipping out. For all of our machine we offer one year warranty.

How is the packaging?

We use wrapping film and wooden crate to pack each machine.

What accessories are included in machine?

One set free abrasive wheel for every machine. The multi-station machine also comes with air blower and dust collector. Every machine has an english manual instruction.

If the budget is limited, can I just purchase a single-station machine and change polishing wheels to get similar function as a multi-head machine?

Yes, this is possible, if you polish small quantity pipes, you can first put on a rough polishing wheels on single-head machine and after all pipes are done for first time polishing, change to another fine polishing wheel and repeat.

Is the tube polishing machine fully automatic?

We have both manual feeding and automatic feeding tube polishing machine.

What is the assembly size of the abrasive wheel?

Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.

What is the difference between single-station machine and multi-station polishing machine?

Single-head machine means there is only single one grinding wheel, while for multi-head machine there is several working position with different material of buffing wheels.

Do you have machine in stock?

Yes, we have ready stock for regular machines, but if your voltage are different from what are in China we will need 7 to 10days to customize motor for you.

What is the main function of a metal tube polishing machine?

Tube polishing machine is used for polishing the surface of a metal round, square and rectangular tube. The tube will be automatically feed in the machine. After passing through the polishing heads the tubing comes out automatically to inspection table.

What is the life span of the polishing wheel?

Each abrasive wheel work for polishing 3500meters tubes.

What kind of abrasive wheel do we use on our polishing machine?

We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.

Is this pipe polishing machine working for both round pipe and round bolt?

Yes, it works for both of them.
