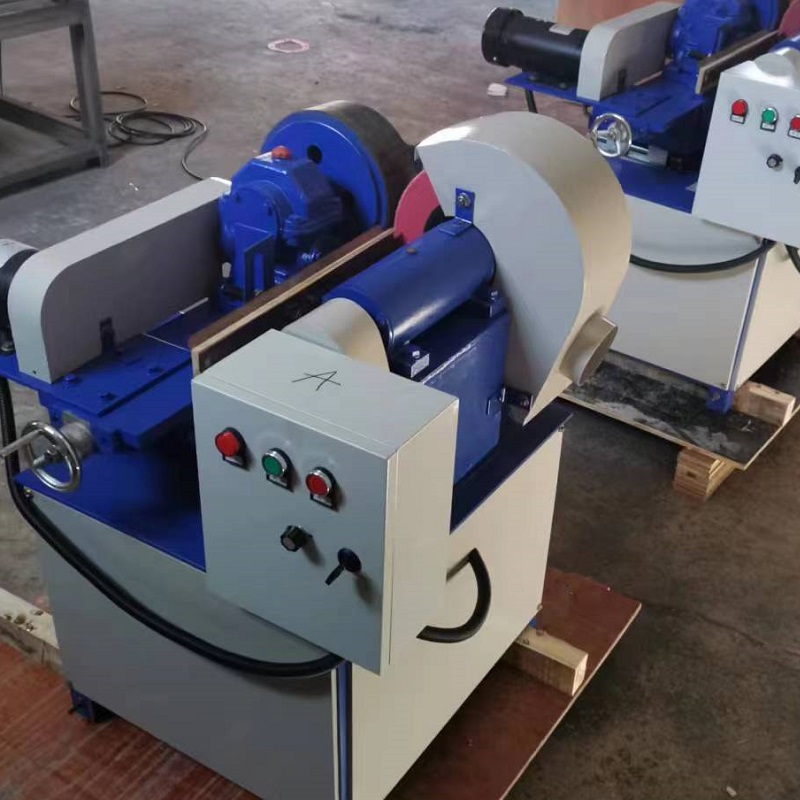

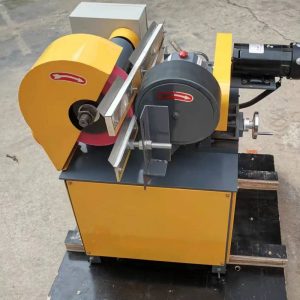

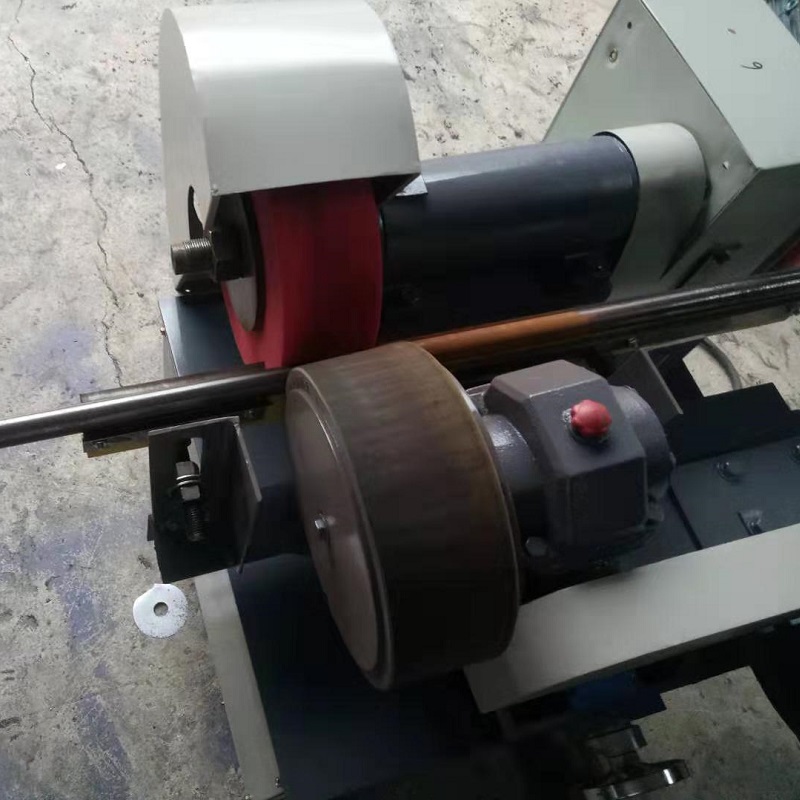

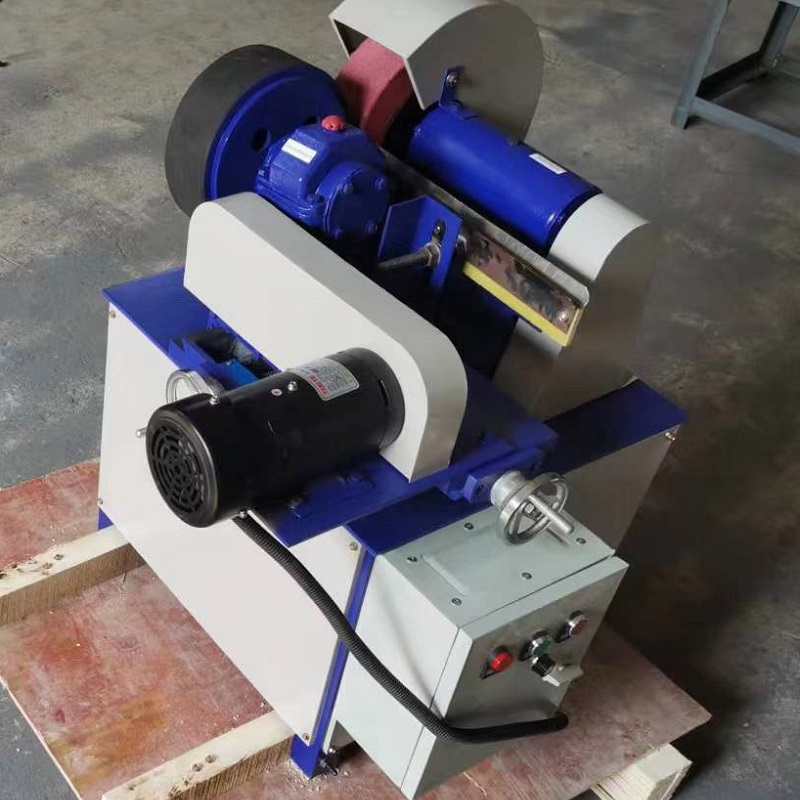

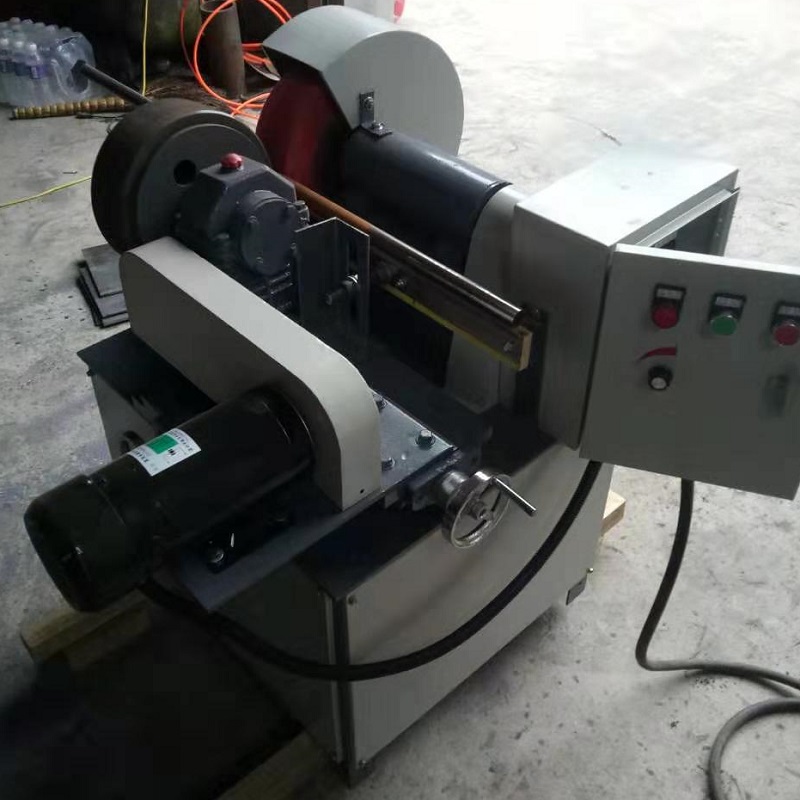

Shrinking tapering tube polishing machine
- Technical Details
- shrinking tapering tube polishing machine
- no: WSPR-1-100
- Working capacity (min.and max.diameter):2-100mm
- Station no.:1
- Feeding speed:0-6m/min(adjustable)
- Abrasive wheel speed:1400rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw
- Feeding motor:4kw
- Total power:4.4kw
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:200kgs
- Dimension:950x950x1100(H) (wooden case size)
Shrinking tapering tube polishing machine-PRODUCT DESCRIPTION
Shrinking tapering tube polishing machine are used for polishing tapered pipes, but the diameter reducing can not be too much from one end of the pipe to another end, for example one side diameter is 60mm, then the other side can not be less than 30mm.
Please feel free to send inquiry to us with the size of your metal tapered tube and pipes.
The equipment is also called round tube polishing machine, round tube derusting machine, straight tube polishing derusting machine, outer round polishing machine, mainly used in hardware manufacturing, vehicle accessories, steel and wood furniture, instrument machinery, standard parts and plating before and after the rust and polishing industries, is the best choice for round tube, round rod, slender shaft polishing. The workpiece processed by the round pipe polishing machine has high brightness and does not affect the original size of the workpiece, especially suitable for the highlight polishing of the workpiece processed by the centerless grinder.
PRODUCT SPECIFICATION OF SHRINKING PIPE POLISHING MACHINE
- Shrinking tapering tube polishing machine
- no: WSPR-1-100
- Working capacity (min.and max.diameter):2-100mm
- Station no.:1
- Feeding speed:0-6m/min(adjustable)
- Abrasive wheel speed:1400rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw
- Feeding motor:4kw
- Total power:4.4kw
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:200kgs
- Dimension:950x950x1100(H) (wooden case size)
| Item# | WSPR-1-100 | Abrasive wheel size | Dia250xthickness80mm | |||
| Working capacity | Diameter 2-100mm | Wheel motor | 4kw | |||
| Working capacity | Length 1-3000mm | Feeding motor | 0.4kw | |||
| Station no. | 1 Station | Voltage | single-phase / 3-phase | |||
| Feeding speed | 0-6m/min(adjustable) | Gross weight | 200kgs | |||
| Abrasive wheel speed | 2800rpm | Dimension | 950*950*1100mm |
APPLICATION OF TAPERING PIPE POLISHING MACHINE
Shrinking tapering tube polishing machine are widely used for below polishing work.

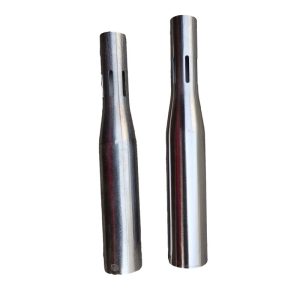

- Reducing pipe polishing
- Taper tube polishing
- Reduced tube grinding
- Cone-shaped tube polishing
- Conical pipe polishing
- Steel conepipe grinding and polishing
VIDEO OF SHRINKING AND TAPER TUBE POLISHING MACHINE
FIND MORE PIPE POLISHING MACHINE
| Please click below links to see more options of polishing machines. | |
| ROUND STRAIGHT PIPE POLISHING MACHINE | SINGLE-HEAD PIPE POLISHING MACHINE |
| MULTI-HEAD PIPE POLISHING MACHINE | |
| ROUND BENT PIPE POLISHING MACHINE | BENT PIPE POLISHING MACHINE |
| ROUND ROD POLISHING MACHINE | BOLT AND ROD POLISHING MACHINE |
| SQUARE PIPE POLISHING MACHINE | SQUARE AND RECTANGULAR PIPE POLISHING MACHINE |
| PLATE POLISHING MACHINE | METAL SHEET PLATE POLISHING MACHINE |
FIND MORE POLISHING FINISH
| Please click below links to see more options of polishing effect. | |
| RUST REMOVAL | REMOVE THE RUST |
| SATIN POLISHING | SATIN FINISH |
| HAIR LINE POLISHING | HAIR LINE FINISH |
| MIRROR POLISHING | MIRROR FINISH |
| REMOVE PITS | REMOVE ALL PITS |
POLISHING MACHINE MANUFACTURER
Hangzhou Wise Machinery Co., Ltd. is a factory based in China for producing and exporting polishing machine.
Our main products pipe polishing machine is suitable for polishing metal tubes such as steel pipe, stainless steel pipe, copper pipe and aluminium piping, etc. We have got a wide variety of pipe polishing machine, for instance the round pipe polishing machine, round bar polishing machine, square and rectangular pipe polishing machine as well as the polishing machine for steel sheet plate. Our goal is to provide our client with the good value and durable polishing machine.
F.A.Q.
Hangzhou Wise Machinery Co., Ltd. are professional pipe polishing machine manufacturer located in Xingtai city of China, we are close to Port Tianjin and Port Qingdao. We mainly sell to North America, Europe and the Middle East countries.
We accept T/T payment directly to our company account and we can also accept payment through Paypal. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship from one set.
We will test at least one pipes on every polishing machine before shipping out. For all of our machine we offer one year warranty.
We use wrapping film and wooden crate to pack each machine.
One set free abrasive wheel for every machine. The multi-station machine also comes with air blower and dust collector. Every machine has an english manual instruction.
Yes, this is possible, if you polish small quantity pipes, you can first put on a rough polishing wheels on single-head machine and after all pipes are done for first time polishing, change to another fine polishing wheel and repeat.
We have both manual feeding and automatic feeding tube polishing machine.
Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.
Single-head machine means there is only single one grinding wheel, while for multi-head machine there is several working position with different material of buffing wheels.
Yes, we have ready stock for regular machines, but if your voltage are different from what are in China we will need 7 to 10days to customize motor for you.
Tube polishing machine is used for polishing the surface of a metal round, square and rectangular tube. The tube will be automatically feed in the machine. After passing through the polishing heads the tubing comes out automatically to inspection table.
Each abrasive wheel work for polishing 3500meters tubes.
We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.
Yes, it works for both of them.
