Stainless Steel Flat Bar Polishing Machine
- MODEL: PG-400-Q
- VOLTAGE: 3PHASE 380V 50HZ
- MACHINE SIZE : 145 X 80 X 175CM
- WEIGHT:580KGS
- MAIN MOTOR: 5.5KW
- LIFTING MOTOR: 0.55KW
- CONVEYOR MOTOR: 0.55KW
- POLISHING WIDTH: MAX 400MM
Stainless Steel Flat Bar Polishing Machine-PRODUCT DESCRIPTION
Stainless Steel Flat Bar Polishing Machine is to polish the two sides of metal sheet plate and metal flat bar. This machine is customized for customer for polishing the metal material – soft iron and also SS316L plate.
SPECIFICATION OF STEEL FLAT BAR GRINDING MACHINE
WSPG-400 Technical Data
| Model | PG-400 | PG-400-Q | PG-600 | PG-600-Q | PG-800 | PG-800-Q | PG-1000 | PG-1000-Q | PG-1200 | PG-1200-Q |
| Weight | 500kg | 580kg | 600kg | 680kg | 700kg | 820kg | 800kg | 920 kg | 900kg | 1030kg |
| Machine Size(m) | 1.4*0.8*1.75 | 1.45*0.8*1.75 | 1.4*1*1.75 | 1.45*1*1.75 | 1.4*1.2*1.75 | 1.45*1.2*1.75 | 1.4*1.4*1.75 | 1.45*1.4*1.75 | 1.4*1.6*1.75 | 1.45*1.6*1.75 |
| Up-Down | Electric | Numerical | Electric | Numerical | Electric | Numerical | Electric | Numerical | Electric | Numerical |
| Voltage | 380V or customize | |||||||||
| Main Motor | 5.5kw | 5.5kw | 7.5kw | 7.5kw | 5.5kw(2pcs) | 5.5kw(2pcs) | 5.5kw(2pcs) | 5.5kw(2pcs) | 7.5kw(2pcs) | 7.5kw(2pcs) |
| Lifting Motor | 0.55kw | |||||||||
| Conveyor Motor | 0.55kw | |||||||||
| Shell Thickness | 1.25mm cold rolling steel plate（powder coating） | |||||||||
| Body | 60*60 square pipe（2.5mm） | |||||||||
| Width | ＜400mm | ＜400mm | ＜600mm | ＜600mm | ＜800mm | ＜800mm | ＜1000mm | ＜1000mm | ＜1200mm | ＜1200mm |
| Thickness | 1-100mm（or customized） | |||||||||
| Sand Belt (mm) | 380*1600 | 380*1600 | 580*1600 | 580*1600 | 780*1600 | 780*1600 | 980*1600 | 980*1600 | 1180*1600 | 1180*1600 |
VIDEO OF OPERATION ON FLAT BAR POLISHING MACHINE

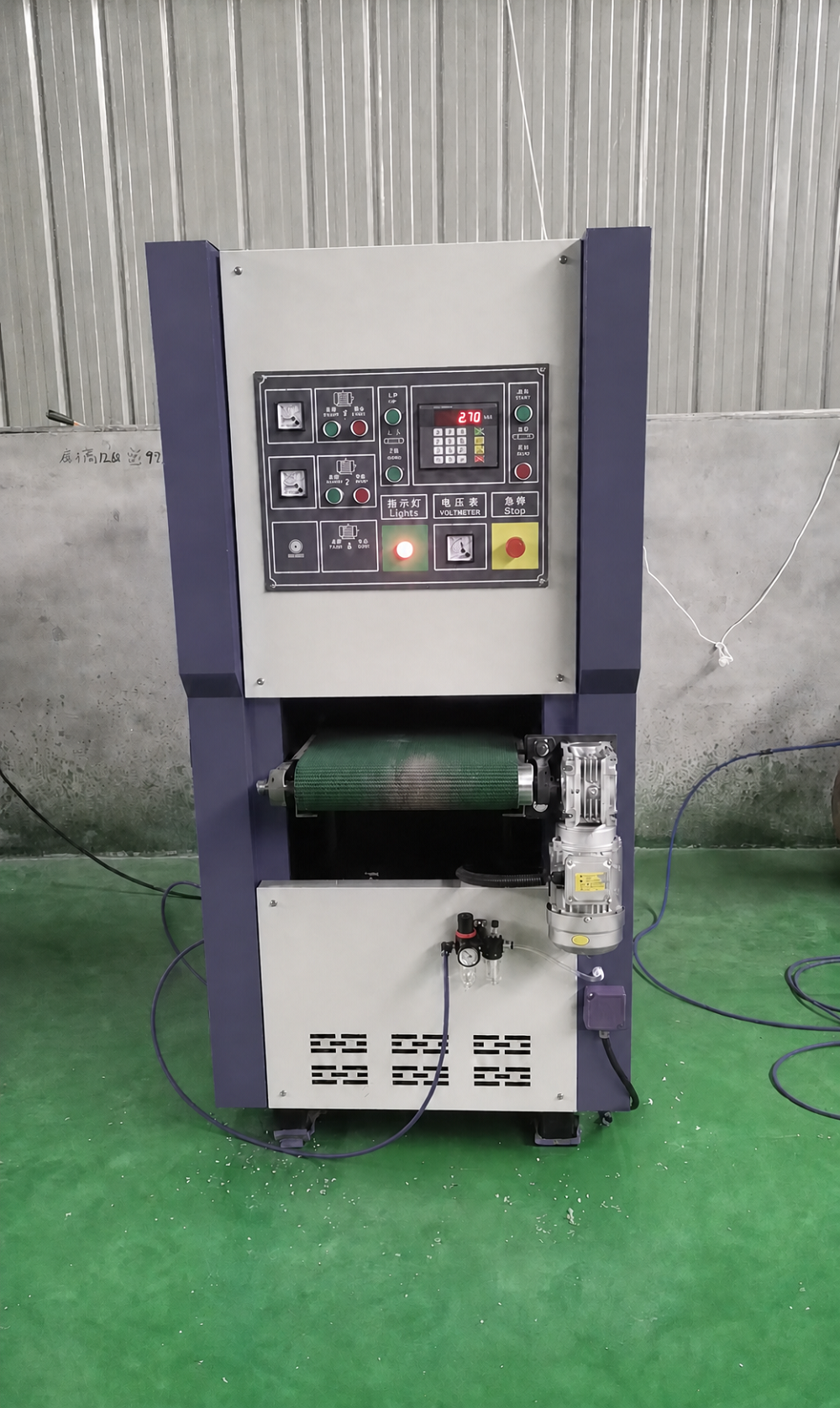

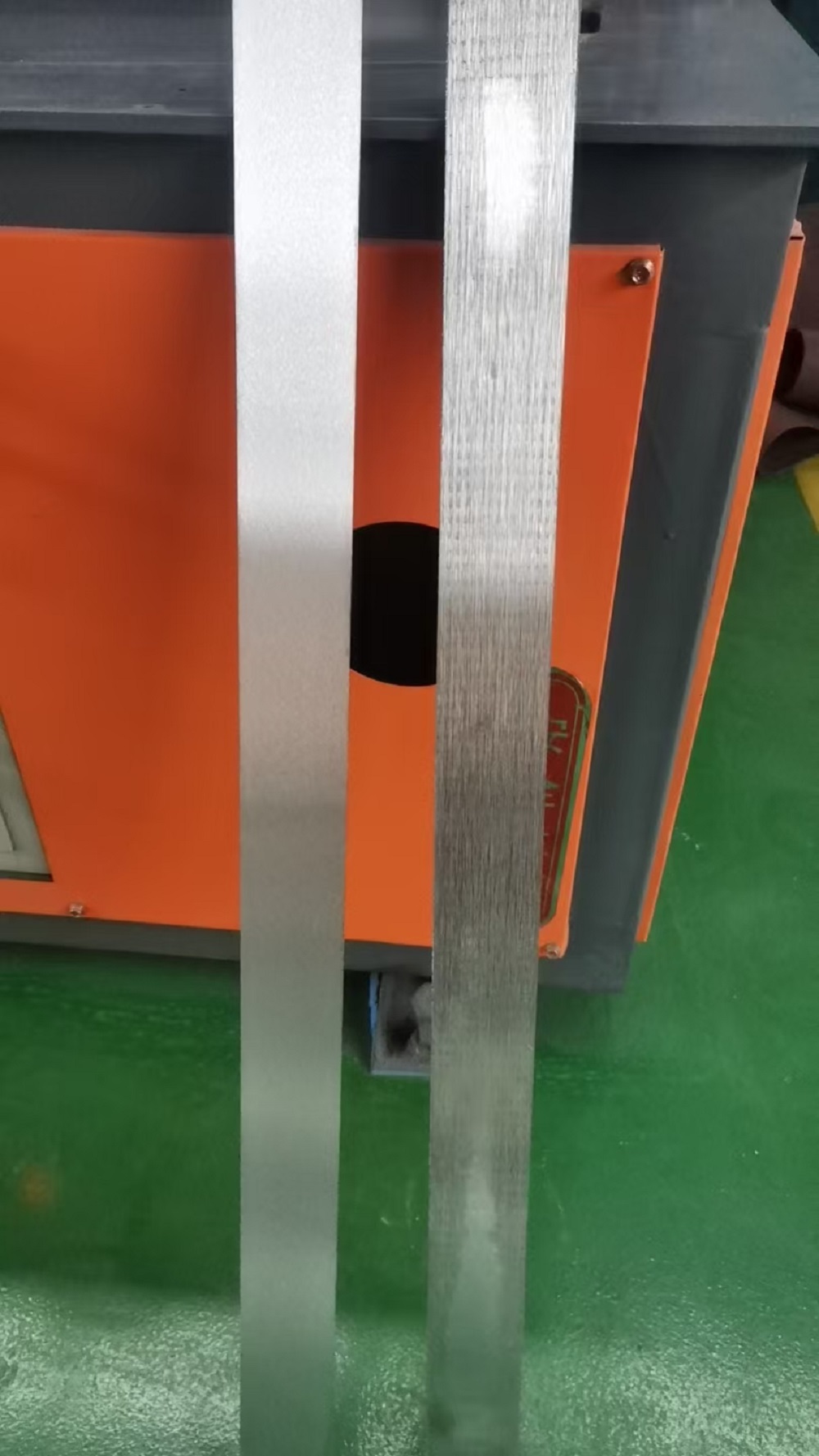

PICTURES OF STAINLESS STEEL PLATE POLISHING MACHINE
F.A.Q.
It is capable of 1-100mm.
Yes, it works for both of them.
Hangzhou Wise Machinery Co., Ltd. are professional pipe polishing machine manufacturer located in Xingtai city of China, we are close to Port Tianjin and Port Qingdao. We mainly sell to North America, Europe and the Middle East countries.
We accept T/T payment directly to our company account and we can also accept payment through Paypal. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship from one set.
We will test at least one pipes on every polishing machine before shipping out. For all of our machine we offer one year warranty.
We use wrapping film and wooden crate to pack each machine.
Yes, we have ready stock for regular machines, but if your voltage are different from what are in China we will need 7 to 10days to customize motor for you.
Get A Quote
Related Products
Related products
-
Metal Plate Polishing Machine

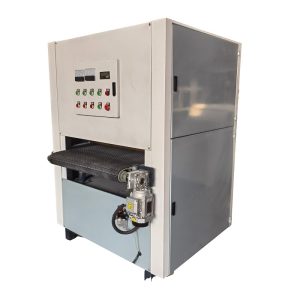

Metal Plate Deburring Machine grinding steel plate steel polishing machines
Read more -
Metal Plate Polishing Machine

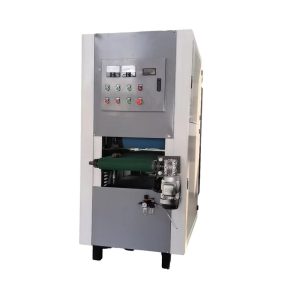

Metal Finishing Machine Polishing Sheet metal surface polishing machine
