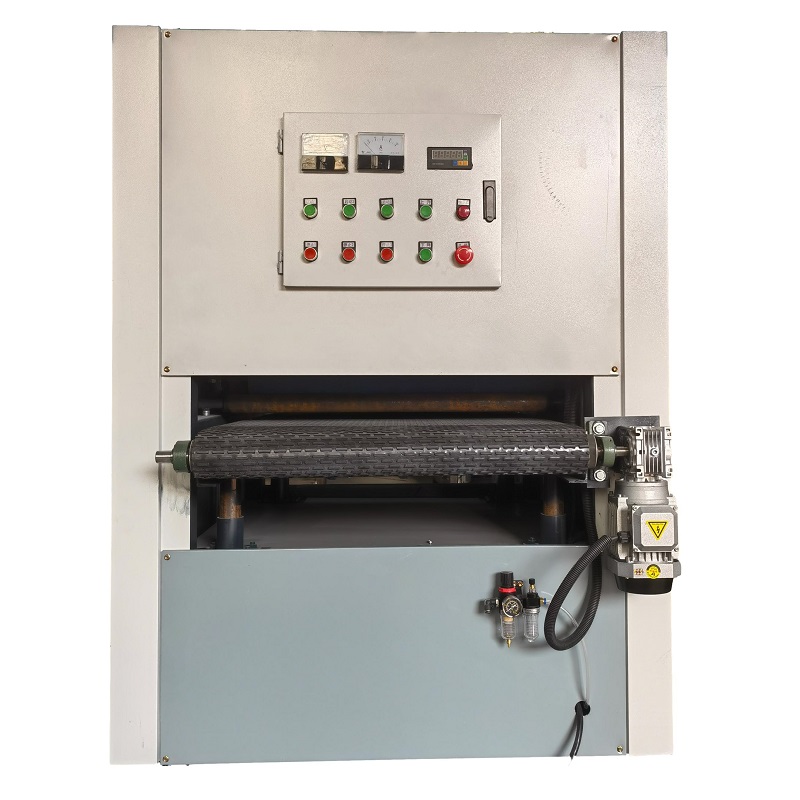

Metal Plate Deburring Machine grinding steel plate steel polishing machines
- Technical Data
- Metal Plate Deburring Machine grinding steel plate steel polishing machines
- Model no.: WSPG-400
- Capacityof plate width: 1-400mm
- Capacityof plate thickness: 1-100mm
- Capacity of plate length:Any
- Up and down type:electric control
- Mainmotor: 5.5kw
- Up and downmotor: 55kw
- Conveyormotor: 0.55kw
- Voltage:single phase / three phase
- Sand belt size: 380x1600mm
- Weight: 500kgs
- Machine size: 1400*800*1750mm
Metal Plate Deburring Machine grinding steel plate steel polishing machines-PRODUCT DESCRIPTION
Metal Plate Deburring Machine is mainly used for grinding and polishing plates. It uses a buffing wheel to get the best finish.
COMPANY BRIEF INTRODUCTION
Hangzhou Wise Machinery Co., Ltd. is a surface treatment and polishing machine manufacturer integrating innovative R&D, production and sales. The company is located in Hangzhou City.
Metal Plate Deburring Machine’s products includes smart polishing machines, automatic sanding machines, automatic belt sanding and polishing machine. Applicable industries includes surface treatment of iron, copper, aluminum, stainless steel, titanium-magnesium alloy pipe and tubes and other metal products in furniture, aviation, automobile, bathroom, new energy, architectural decoration, home appliances, kitchen utensils, electronics, luggage accessories, etc. Besides, we can customize non-standard special polishing machine according to customer’s requirement.
TECHNICAL DATA OF STEEL PLATE DEBURRING MACHINE
WSPG-400 Technical Data
| Model | PG-400 | PG-400-Q | PG-600 | PG-600-Q | PG-800 | PG-800-Q | PG-1000 | PG-1000-Q | PG-1200 | PG-1200-Q |
| Weight | 500kg | 580kg | 600kg | 680kg | 700kg | 820kg | 800kg | 920 kg | 900kg | 1030kg |
| Machine Size(m) | 1.4*0.8*1.75 | 1.45*0.8*1.75 | 1.4*1*1.75 | 1.45*1*1.75 | 1.4*1.2*1.75 | 1.45*1.2*1.75 | 1.4*1.4*1.75 | 1.45*1.4*1.75 | 1.4*1.6*1.75 | 1.45*1.6*1.75 |
| Up-Down | Electric | Numerical | Electric | Numerical | Electric | Numerical | Electric | Numerical | Electric | Numerical |
| Voltage | 380V or customize | |||||||||
| Main Motor | 5.5kw | 5.5kw | 7.5kw | 7.5kw | 5.5kw(2pcs) | 5.5kw(2pcs) | 5.5kw(2pcs) | 5.5kw(2pcs) | 7.5kw(2pcs) | 7.5kw(2pcs) |
| Lifting Motor | 0.55kw | |||||||||
| Conveyor Motor | 0.55kw | |||||||||
| Shell Thickness | 1.25mm cold rolling steel plate（powder coating） | |||||||||
| Body | 60*60 square pipe（2.5mm） | |||||||||
| Width | ＜400mm | ＜400mm | ＜600mm | ＜600mm | ＜800mm | ＜800mm | ＜1000mm | ＜1000mm | ＜1200mm | ＜1200mm |
| Thickness | 1-100mm（or customized） | |||||||||
| Sand Belt (mm) | 380*1600 | 380*1600 | 580*1600 | 580*1600 | 780*1600 | 780*1600 | 980*1600 | 980*1600 | 1180*1600 | 1180*1600 |
VIDEO OF METAL PLATE DEBURRING
FIND MORE POLISHING MACHINE
| Please click below links to see more options of polishing machines. | |
| ROUND STRAIGHT PIPE POLISHING MACHINE | SINGLE-HEAD PIPE POLISHING MACHINE |
| MULTI-HEAD PIPE POLISHING MACHINE | |
| ROUND BENT PIPE POLISHING MACHINE | BENT PIPE POLISHING MACHINE |
| ROUND ROD POLISHING MACHINE | BOLT AND ROD POLISHING MACHINE |
| SQUARE PIPE POLISHING MACHINE | SQUARE AND RECTANGULAR PIPE POLISHING MACHINE |
| PLATE POLISHING MACHINE | METAL SHEET PLATE POLISHING MACHINE |
FIND MORE POLISHING FINISH
| Please click below links to see more options of polishing effect. | |
| RUST REMOVAL | REMOVE THE RUST |
| SATIN POLISHING | SATIN FINISH |
| HAIR LINE POLISHING | HAIR LINE FINISH |
| MIRROR POLISHING | MIRROR FINISH |
| REMOVE PITS | REMOVE ALL PITS |
F.A.Q.
It is capable of 1-100mm.
Yes, it works for both of them.
Hangzhou Wise Machinery Co., Ltd. are professional pipe polishing machine manufacturer located in Xingtai city of China, we are close to Port Tianjin and Port Qingdao. We mainly sell to North America, Europe and the Middle East countries.
We accept T/T payment directly to our company account and we can also accept payment through Paypal. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship from one set.
We will test at least one pipes on every polishing machine before shipping out. For all of our machine we offer one year warranty.
We use wrapping film and wooden crate to pack each machine.
Yes, we have ready stock for regular machines, but if your voltage are different from what are in China we will need 7 to 10days to customize motor for you.
