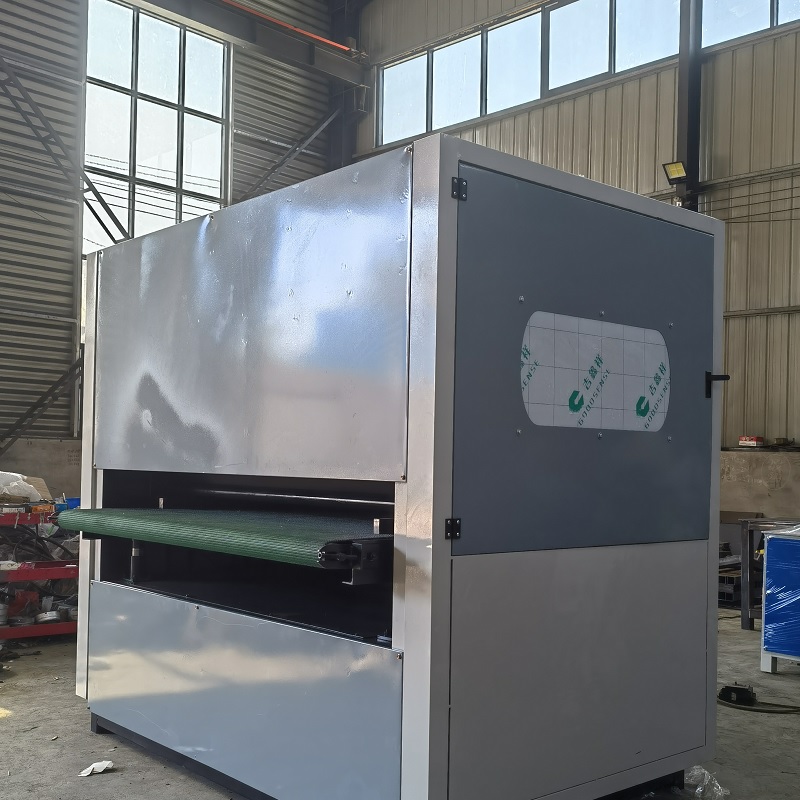

Steel plate polishing machine
- Technical Details
- Steel plate polishing machine
- Model no.: WSPG-400
- Working capacity (min.and max.width): 1-400mm
- Working capacity (min.and max.thickness):1-100mm
- Working capacity (min.and max.length):Any
- Up and down type:electric controlled
- Mainmotor: 5.5kw
- Up and downmotor: 55kw
- Conveyormotor: 0.55kw
- Voltage:single-phase / 3-phase customized
- Sand belt size: 380x1600mm
- Weight: 500kgs
- Machine size: 1.4*0.8*1.75m

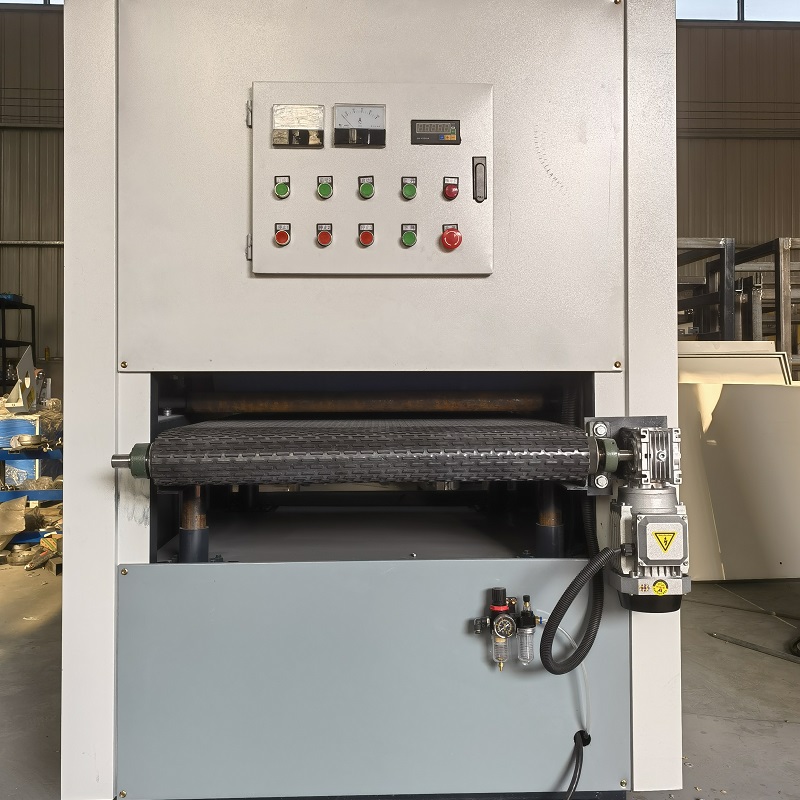

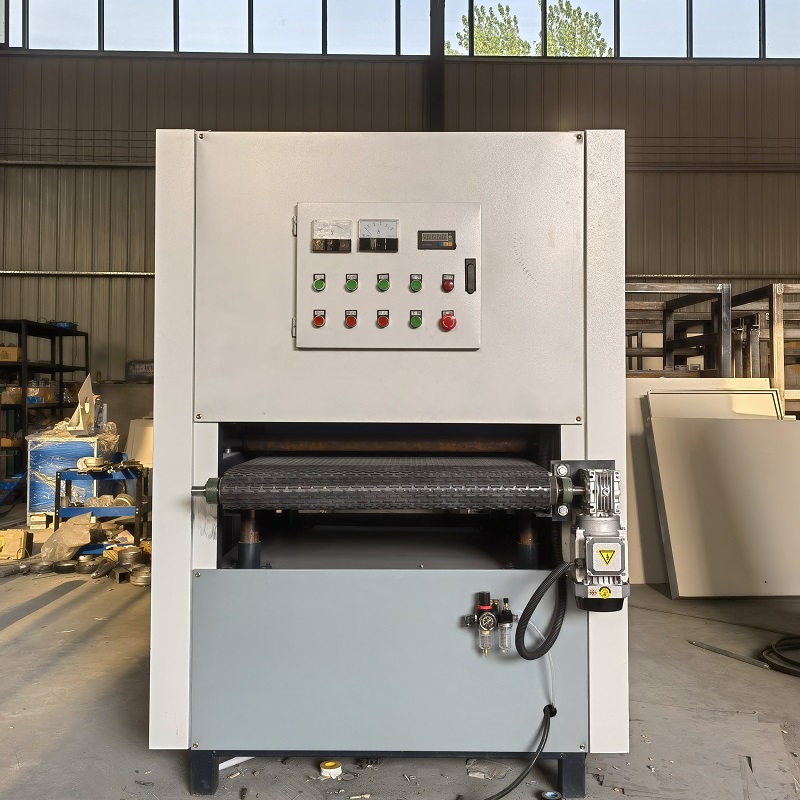

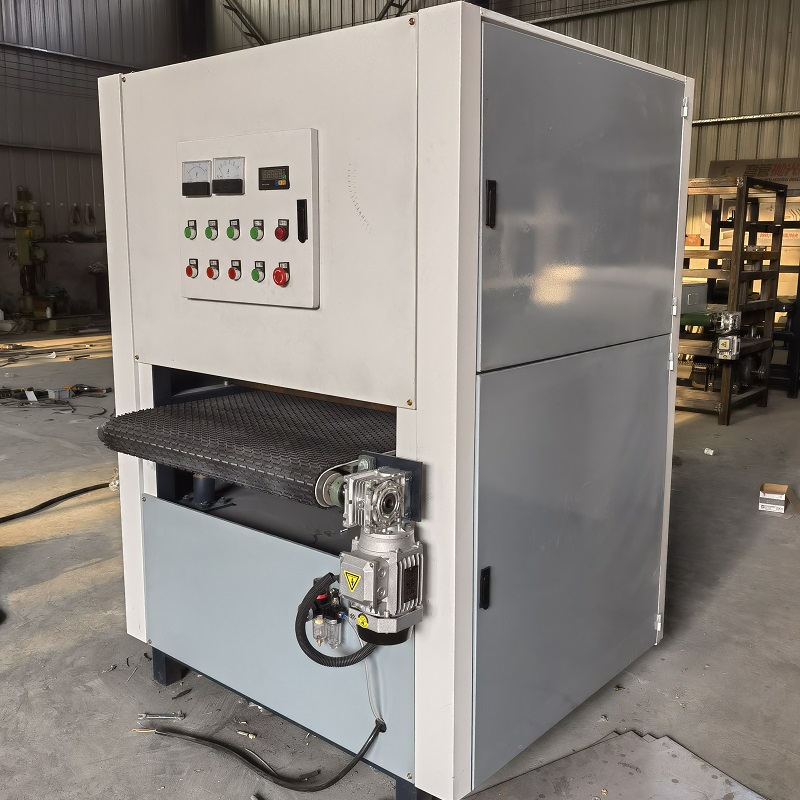

Steel plate polishing machine-PRODUCT DESCRIPTION
Steel plate polishing machine is mainly used for grinding and polishing metal sheet plates. The difference of PG-400 and PG-400-Q is that on PG-400 you need to adjust the machine manually according to various thickness plate, while on PG-400-Q it is fully automatic. The PG-400-Q machine is pneumatic driven, once you input the right thickness of metal plate, the machine will automatically adjust and if the sand belt is not in right position it will be modified automatically, back to the right position.
APPLICATION OF STEEL PLATE GRINDING MACHINE
Metal polishing machine are used for below item polishing
- Steel plate deburring and derusting
- Stainless steel plate grinding
- Aluminum plate polishing and removing the burrs, scum and coating
- Other industrial metal plate sanding
- Small thin parts sanding and buffing machine
TECHNICAL DATA OF METAL POLISHING MACHINE
WSPG-400 Technical Data
| Model | PG-400 | PG-400-Q | PG-600 | PG-600-Q | PG-800 | PG-800-Q | PG-1000 | PG-1000-Q | PG-1200 | PG-1200-Q |
| Weight | 500kg | 580kg | 600kg | 680kg | 700kg | 820kg | 800kg | 920 kg | 900kg | 1030kg |
| Machine Size(m) | 1.4*0.8*1.75 | 1.45*0.8*1.75 | 1.4*1*1.75 | 1.45*1*1.75 | 1.4*1.2*1.75 | 1.45*1.2*1.75 | 1.4*1.4*1.75 | 1.45*1.4*1.75 | 1.4*1.6*1.75 | 1.45*1.6*1.75 |
| Up-Down | Electric | Numerical | Electric | Numerical | Electric | Numerical | Electric | Numerical | Electric | Numerical |
| Voltage | 380V or customize | |||||||||
| Main Motor | 5.5kw | 5.5kw | 7.5kw | 7.5kw | 5.5kw(2pcs) | 5.5kw(2pcs) | 5.5kw(2pcs) | 5.5kw(2pcs) | 7.5kw(2pcs) | 7.5kw(2pcs) |
| Lifting Motor | 0.55kw | |||||||||
| Conveyor Motor | 0.55kw | |||||||||
| Shell Thickness | 1.25mm cold rolling steel plate（powder coating） | |||||||||
| Body | 60*60 square pipe（2.5mm） | |||||||||
| Width | ＜400mm | ＜400mm | ＜600mm | ＜600mm | ＜800mm | ＜800mm | ＜1000mm | ＜1000mm | ＜1200mm | ＜1200mm |
| Thickness | 1-100mm（or customized） | |||||||||
| Sand Belt (mm) | 380*1600 | 380*1600 | 580*1600 | 580*1600 | 780*1600 | 780*1600 | 980*1600 | 980*1600 | 1180*1600 | 1180*1600 |

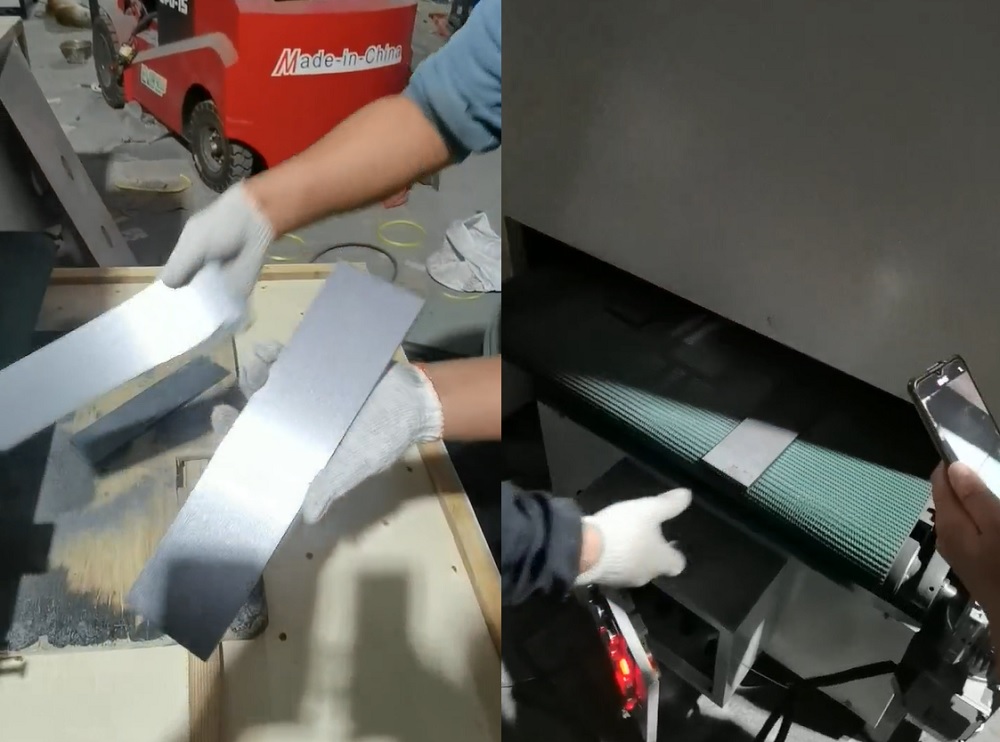

VIDEO OF OPERATION OF STEEL PLATE POLISHING MACHINE
POLISHING MACHINE MANUFACTURER
Hangzhou Wise Machinery Co., Ltd. is a factory based in China for producing and exporting polishing machine.
Our main products is suitable for polishing metal tubes such as steel pipe, stainless steel pipe, copper pipe and aluminium piping, etc. We have got a wide variety of polishing machine, for instance the round pipe, round bar, square and rectangular polishing as well as the polishing machine for steel sheet plate. Our goal is to provide our client with the good value and durable polishing machine.
F.A.Q.
It is capable of 1-100mm.
Yes, it works for both of them.
Hangzhou Wise Machinery Co., Ltd. are professional pipe polishing machine manufacturer located in Xingtai city of China, we are close to Port Tianjin and Port Qingdao. We mainly sell to North America, Europe and the Middle East countries.
We accept T/T payment directly to our company account and we can also accept payment through Paypal. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship from one set.
We will test at least one pipes on every polishing machine before shipping out. For all of our machine we offer one year warranty.
We use wrapping film and wooden crate to pack each machine.
Yes, we have ready stock for regular machines, but if your voltage are different from what are in China we will need 7 to 10days to customize motor for you.
