Automatic feeding tube polishing machine

Automatic feeding tube polishing machine

Categories Round Tube Polishing Machine, single station tube polishing machine

Technical Data
Automatic feeding tube polishing machine
Model:WSPR-1-100A
Capacity of diameter:3-100mm
Capacityof length: 1-3000mm
Station number.:one
Feeding speed: 1-6m/min(adjustable)
Abrasive wheel speed: 2800rpm
Abrasive wheel size:dia250 x thickness80mm, hole32mm
Wheel motor:4kw
Feeding motor:4kw
Total power:4.4kw
Voltage:single phase / three phase
Standard with 1 set polishingwheel
Gross weight:220kgs
Dimension:950x950x1100mm (wooden crate size)

Automatic feeding tube polishing machine-PRODUCT DESCRIPTION

Automatic feeding tube polishing machine is a tube polishing machine with automatic feeder. With this, a single head tube polishing machine can have the steel tube feeding automatically, the efficiency is higher and save labor cost. The feed-in platform will lift pipe one by one and send them to the polishing machine.

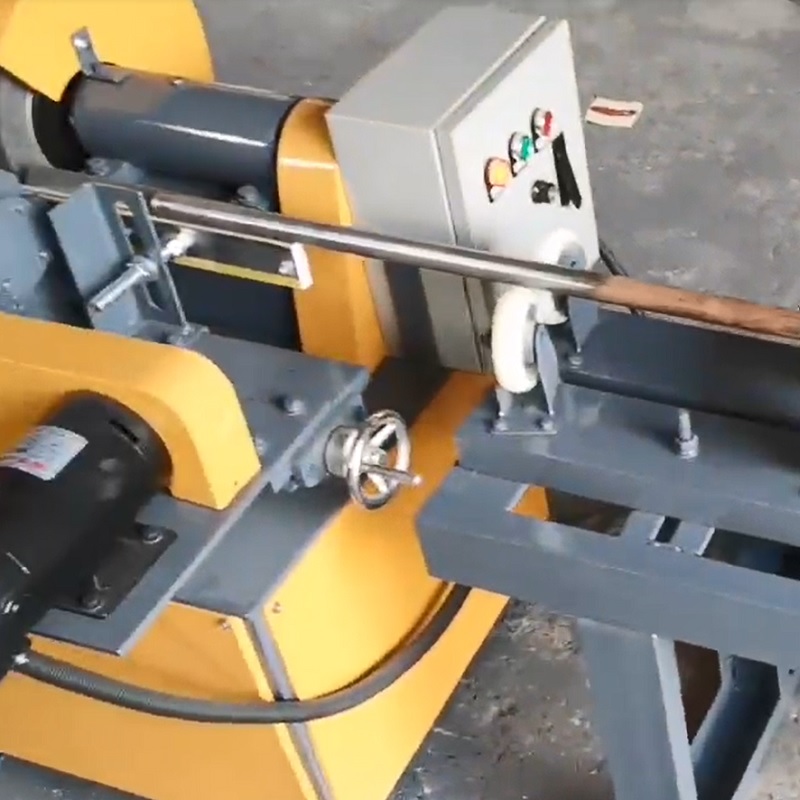

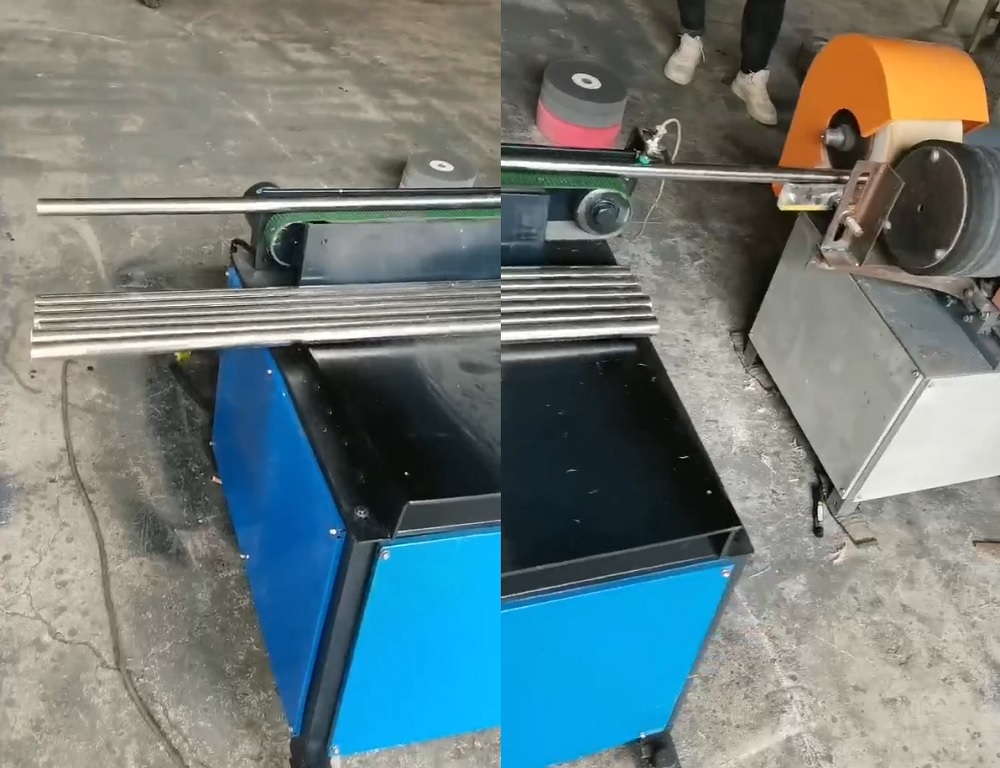

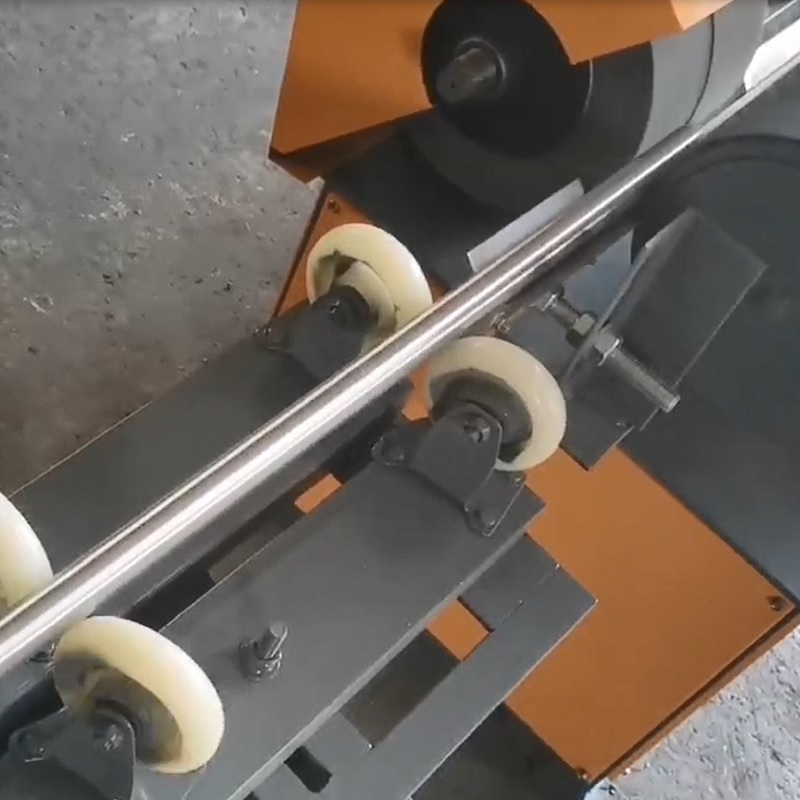

PICTURES OF AUTOMATIC FEEDING TUBE POLISHING MACHINE

VIDEO OF AUTOMATIC FEEDING TUBE POLISHING MACHINE

APPLICATION OF AUTOMATIC FEEDING TUBE POLISHING MACHINE

Surface quality improvement: The main function of the polishing machine is to improve the surface quality of the material to make it smoother and glossier.
Automated operation: Polishing machines are usually automatic equipment that can perform polishing operations efficiently and reduce the need for man operations.
Abrasive tools: Polishing machines use different types of abrasive tools, such as grinding discs, grinding wheels, abrasive belts, etc., to meet different polishing needs.
Adjustability: These machines usually have adjustable parameters to enable the operator to control the depth and speed of polishing to suit different materials and requirements.
Wide application: The polishing machine can be used on a variety of materials, for example the metal, plastic, ceramics, wood, stone, etc., and is suitable for many industries.
High efficiency: WIth the polishing machine you can get the polishing work done quickly which improves production efficiency, and reduce production costs.

FIND MORE PIPE POLISHING MACHINE

Please click below links to see more options of polishing machines.
ROUND STRAIGHT PIPE POLISHING MACHINE	SINGLE-HEAD PIPE POLISHING MACHINE
ROUND STRAIGHT PIPE POLISHING MACHINE	MULTI-HEAD PIPE POLISHING MACHINE
ROUND BENT PIPE POLISHING MACHINE	BENT PIPE POLISHING MACHINE
ROUND ROD POLISHING MACHINE	BOLT AND ROD POLISHING MACHINE
SQUARE PIPE POLISHING MACHINE	SQUARE AND RECTANGULAR PIPE POLISHING MACHINE
PLATE POLISHING MACHINE	METAL SHEET PLATE POLISHING MACHINE

FIND MORE POLISHING FINISH

Please click below links to see more options of polishing effect.

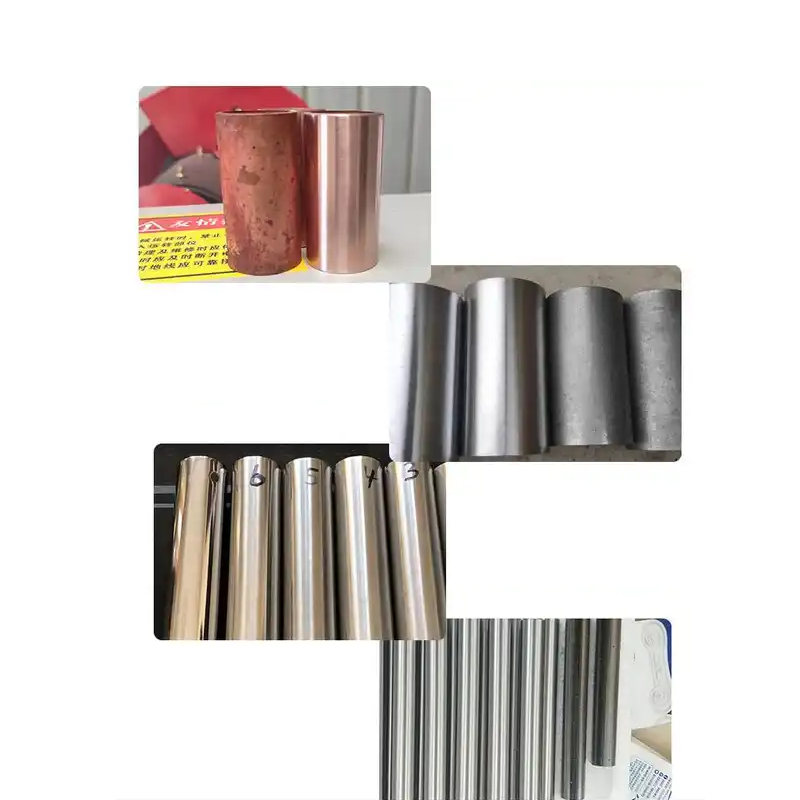

RUST REMOVAL	REMOVE THE RUST
SATIN POLISHING	SATIN FINISH
HAIR LINE POLISHING	HAIR LINE FINISH
MIRROR POLISHING	MIRROR FINISH
REMOVE PITS	REMOVE ALL PITS

POLISHING MACHINE MANUFACTURER

Hangzhou Wise Machinery Co., Ltd. is a factory based in China for producing and exporting polishing machine.
Our main products pipe polishing machine is suitable for polishing metal tubes such as steel pipe, stainless steel pipe, copper pipe and aluminium piping, etc. We have got a wide variety of pipe polishing machine, for instance the round pipe polishing machine, round bar polishing machine, square and rectangular pipe polishing machine as well as the polishing machine for steel sheet plate. Our goal is to provide our client with the good value and durable polishing machine.

F.A.Q.

Who are we?

Hangzhou Wise Machinery Co., Ltd. are professional pipe polishing machine manufacturer located in Xingtai city of China, we are close to Port Tianjin and Port Qingdao. We mainly sell to North America, Europe and the Middle East countries.

How to place order?

We accept T/T payment directly to our company account and we can also accept payment through Paypal. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship from one set.

How we guarantee the quality?

We will test at least one pipes on every polishing machine before shipping out. For all of our machine we offer one year warranty.

How is the packaging?

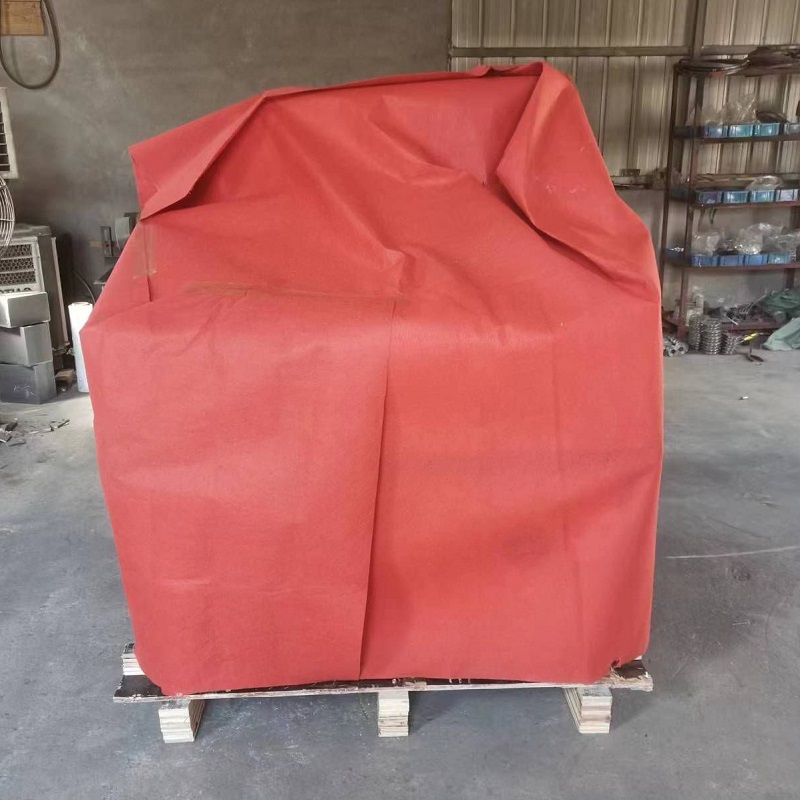

We use wrapping film and wooden crate to pack each machine.

What accessories are included in machine?

One set free abrasive wheel for every machine. The multi-station machine also comes with air blower and dust collector. Every machine has an english manual instruction.

If the budget is limited, can I just purchase a single-station machine and change polishing wheels to get similar function as a multi-head machine?

Yes, this is possible, if you polish small quantity pipes, you can first put on a rough polishing wheels on single-head machine and after all pipes are done for first time polishing, change to another fine polishing wheel and repeat.

Is the tube polishing machine fully automatic?

We have both manual feeding and automatic feeding tube polishing machine.

What is the assembly size of the abrasive wheel?

Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.

What is the difference between single-station machine and multi-station polishing machine?

Single-head machine means there is only single one grinding wheel, while for multi-head machine there is several working position with different material of buffing wheels.

Do you have machine in stock?

Yes, we have ready stock for regular machines, but if your voltage are different from what are in China we will need 7 to 10days to customize motor for you.

What is the main function of a metal tube polishing machine?

Tube polishing machine is used for polishing the surface of a metal round, square and rectangular tube. The tube will be automatically feed in the machine. After passing through the polishing heads the tubing comes out automatically to inspection table.

What is the life span of the polishing wheel?

Each abrasive wheel work for polishing 3500meters tubes.

What kind of abrasive wheel do we use on our polishing machine?

We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.

Is this pipe polishing machine working for both round pipe and round bolt?

Yes, it works for both of them.
