Tube surface polishing machine
- Technical Details
- Tube surface polishing machine
- Working capacity (min.and max.diameter) 8-160mm
- Working capacity (min.and max.pipe length) 500mm to any
- Station no. 10
- Feeding speed 1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed 2800rpm
- Abrasive wheel size Dia250xthickness80mm,hole32mm
- Wheel motor 4kw * 10pieces
- Feeding motor 1.5kw
- Air blower motor 2.2kw * 3pieces
- Total power 48kw
- Consumption 96A
- Voltage 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight 2500kgs
- Dimension 6050x1100x1200 (wooden case size)
Tube surface polishing machine-PRODUCT DESCRIPTION

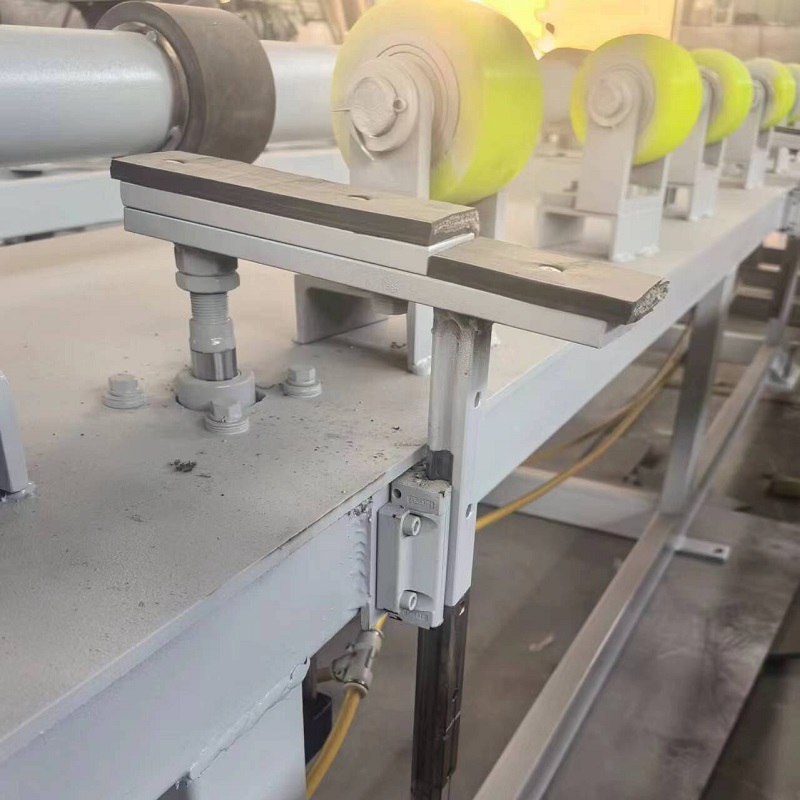

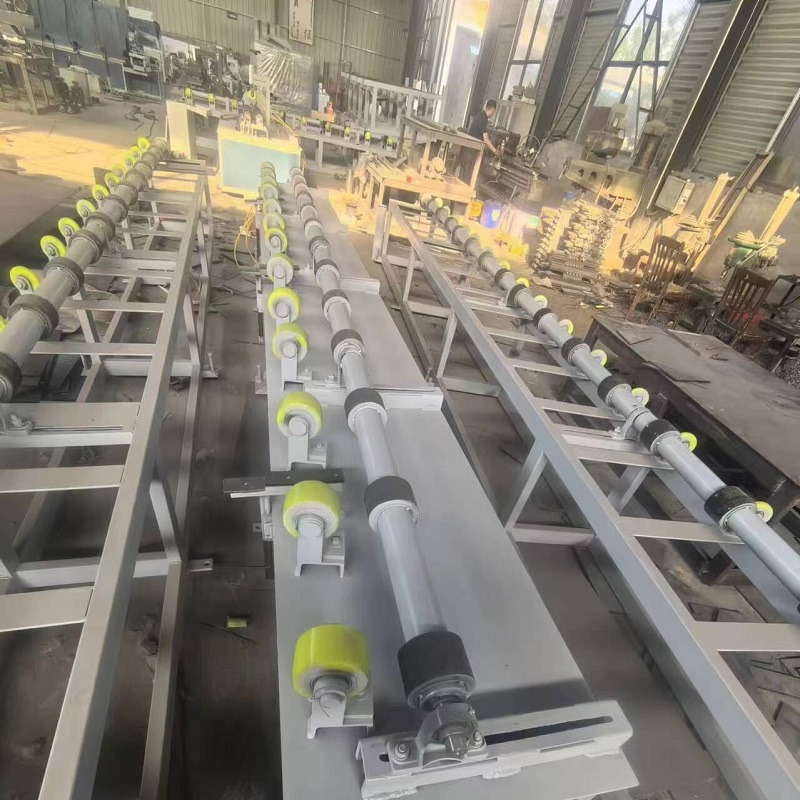

Tube surface polishing machine has automatic tube loader on it, it can pick up one by one each steel tube and pipe from a bundle pipe and feed pipe into the main machine for polishing work.
- The round tube polishing machine has the feature of high efficiency, good finish and compatible with wide range of abrasive consumables.
- The machine has the characteristics of simple and convenient operation, stable product performance and low noise.
- Suitable for polishing workpiece of different sizes and diameters. Scope of application: electroplating, hardware, mold processing, gas spring rod, hydraulic parts, copper pipe copper rod, steel pipe iron rod, stainless steel pipe, aluminum pipe, handicraft processing, steel and wood furniture, gas pipe, vehicle parts and other cylindrical polishing work.
FEATURES OF PIPE SURFACE POLISHING MACHINE
- The machine feeding speed is adjustable, with a maximum speed of 10 m/min;
- The machine is suitable for polishing and grinding the outer surface of bar and tube materials;
- Equipped with an integral sealed cover (with dust extraction fan).
VIDEO OF SURFACE POLISHING MACHINE
FIND MORE POLISHING MACHINE
| Please click below links to see more options of polishing machines. | |
| ROUND STRAIGHT PIPE POLISHING MACHINE | SINGLE-HEAD PIPE POLISHING MACHINE |
| MULTI-HEAD PIPE POLISHING MACHINE | |
| ROUND BENT PIPE POLISHING MACHINE | BENT PIPE POLISHING MACHINE |
| ROUND ROD POLISHING MACHINE | BOLT AND ROD POLISHING MACHINE |
| SQUARE PIPE POLISHING MACHINE | SQUARE AND RECTANGULAR PIPE POLISHING MACHINE |
| PLATE POLISHING MACHINE | METAL SHEET PLATE POLISHING MACHINE |
FIND MORE POLISHING FINISH
| Please click below links to see more options of polishing effect. | |
| RUST REMOVAL | REMOVE THE RUST |
| SATIN POLISHING | SATIN FINISH |
| HAIR LINE POLISHING | HAIR LINE FINISH |
| MIRROR POLISHING | MIRROR FINISH |
| REMOVE PITS | REMOVE ALL PITS |
POLISHING MACHINE MANUFACTURER
Hangzhou Wise Machinery Co., Ltd. is a factory based in China for producing and exporting polishing machine.
Our main products is suitable for polishing metal tubes such as steel pipe, stainless steel pipe, copper pipe and aluminium piping, etc. We have got a wide variety of polishing machine, for instance the round pipe, round bar, square and rectangular polishing as well as the polishing machine for steel sheet plate. Our goal is to provide our client with the good value and durable polishing machine.
F.A.Q.
Hangzhou Wise Machinery Co., Ltd. are professional pipe polishing machine manufacturer located in Xingtai city of China, we are close to Port Tianjin and Port Qingdao. We mainly sell to North America, Europe and the Middle East countries.
We accept T/T payment directly to our company account and we can also accept payment through Paypal. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship from one set.
We will test at least one pipes on every polishing machine before shipping out. For all of our machine we offer one year warranty.
We use wrapping film and wooden crate to pack each machine.
One set free abrasive wheel for every machine. The multi-station machine also comes with air blower and dust collector. Every machine has an english manual instruction.
Yes, this is possible, if you polish small quantity pipes, you can first put on a rough polishing wheels on single-head machine and after all pipes are done for first time polishing, change to another fine polishing wheel and repeat.
We have both manual feeding and automatic feeding tube polishing machine.
Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.
Single-head machine means there is only single one grinding wheel, while for multi-head machine there is several working position with different material of buffing wheels.
Yes, we have ready stock for regular machines, but if your voltage are different from what are in China we will need 7 to 10days to customize motor for you.
Tube polishing machine is used for polishing the surface of a metal round, square and rectangular tube. The tube will be automatically feed in the machine. After passing through the polishing heads the tubing comes out automatically to inspection table.
Each abrasive wheel work for polishing 3500meters tubes.
We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.
Yes, it works for both of them.
