Square pipe polishing machine

Categories rectangular and square tube polishing machine, Square Tube Polishing Machine

Technical Details
Square pipe polishing machine
Working capacity (min.and max.diameter) 10*10mm to 120*120mm
Working capacity (min.and max.pipe length) 500mm to any
Station no. 4
Feeding speed 1-10m/min(adjustable, stepless speed adjusting)
Abrasive wheel speed 2800rpm
Abrasive wheel size Dia250xthickness80mm,hole32mm
Wheel motor 4kw * 4pieces
Feeding motor 0.75kw
Air blower motor 2.2kw
Total power 19kw
Consumption 38A
Voltage 3-phase customized
Standard with 1 set grinding wheel
Gross weight 800kgs
Dimension 1800x1350x1300 (wooden case size)

Square pipe polishing machine-PRODUCT DESCRIPTION

Square pipe polishing machine are use to polish the surface of any square shape metal tube and pipes to be mirror polishing, mat polishing, sand polishing or other finish. It is equipped with 4 polishing wheels. The pipe material can be: SS:201, 202, 304, 316, 316L, etc & carbon steel etc.

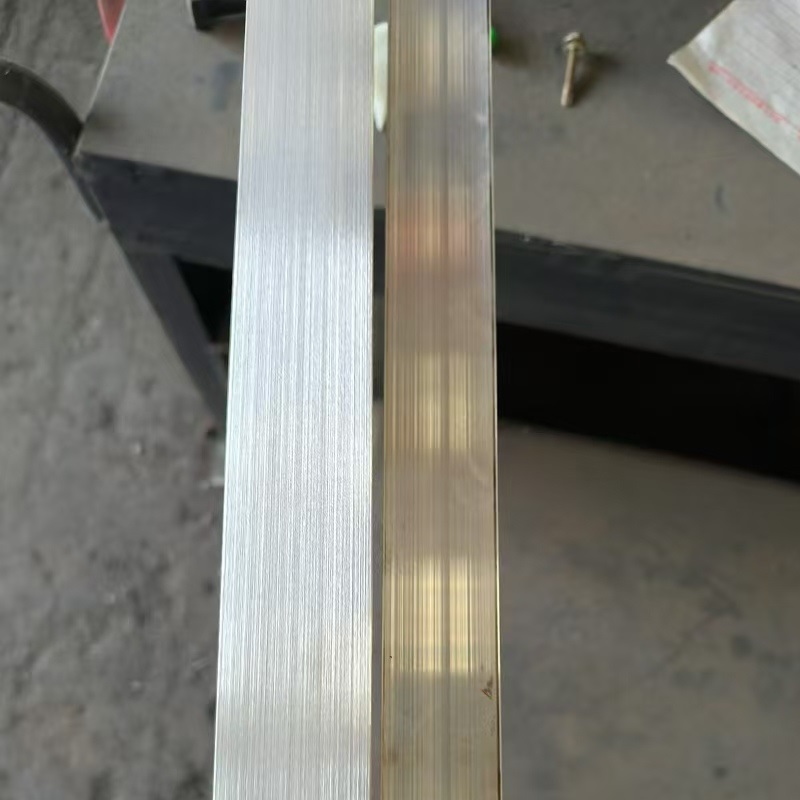

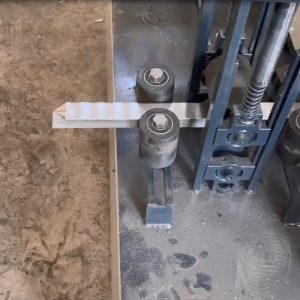

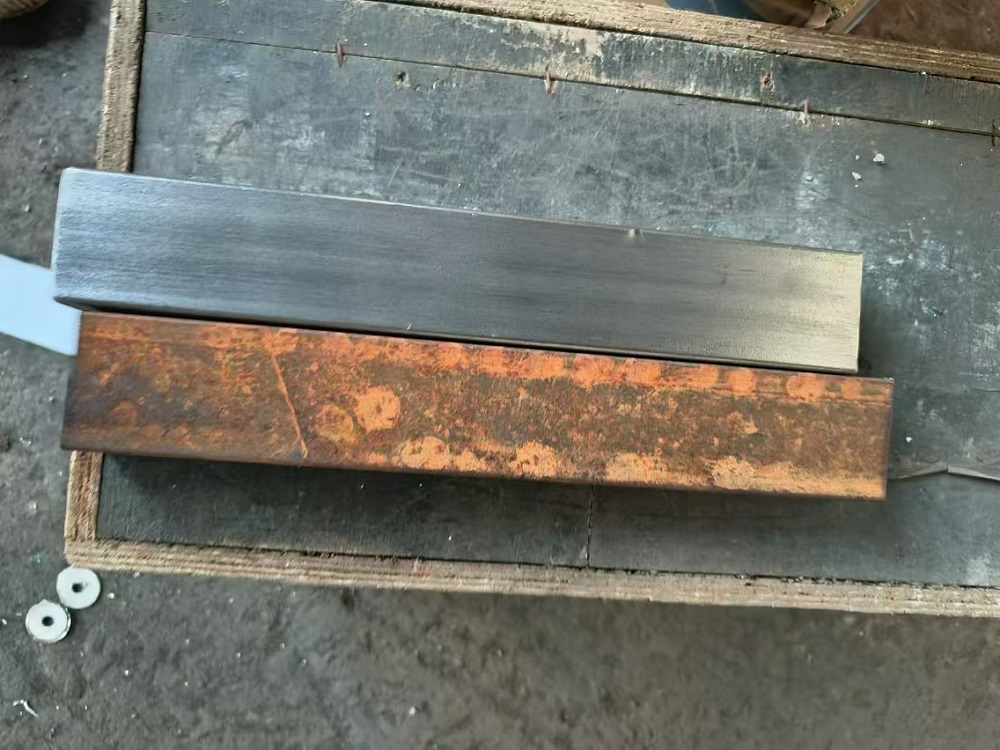

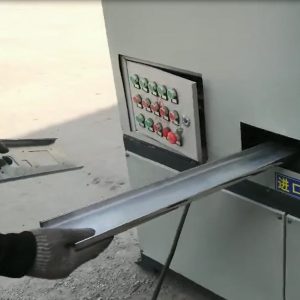

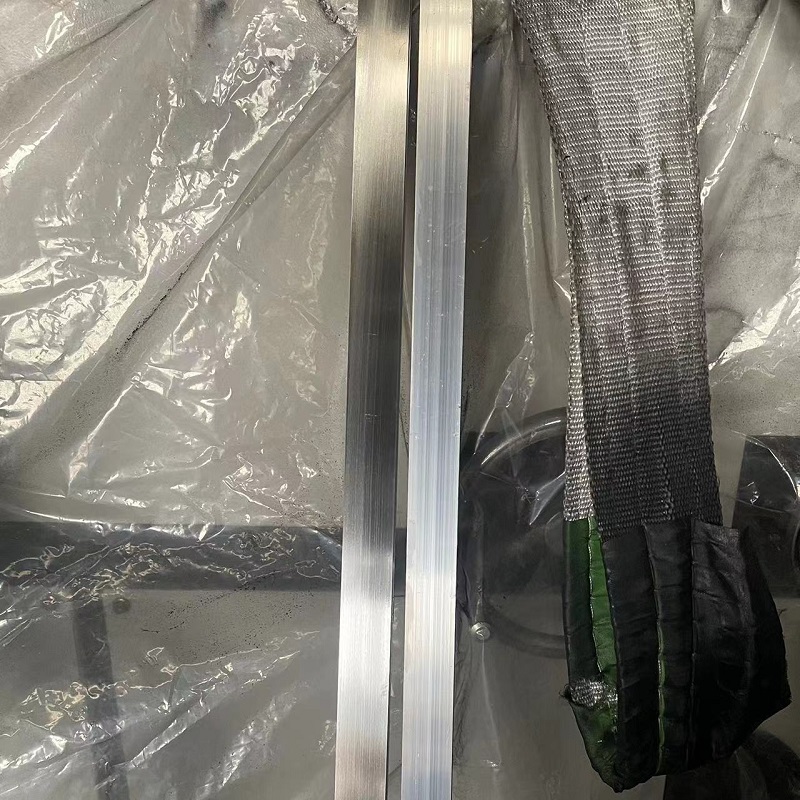

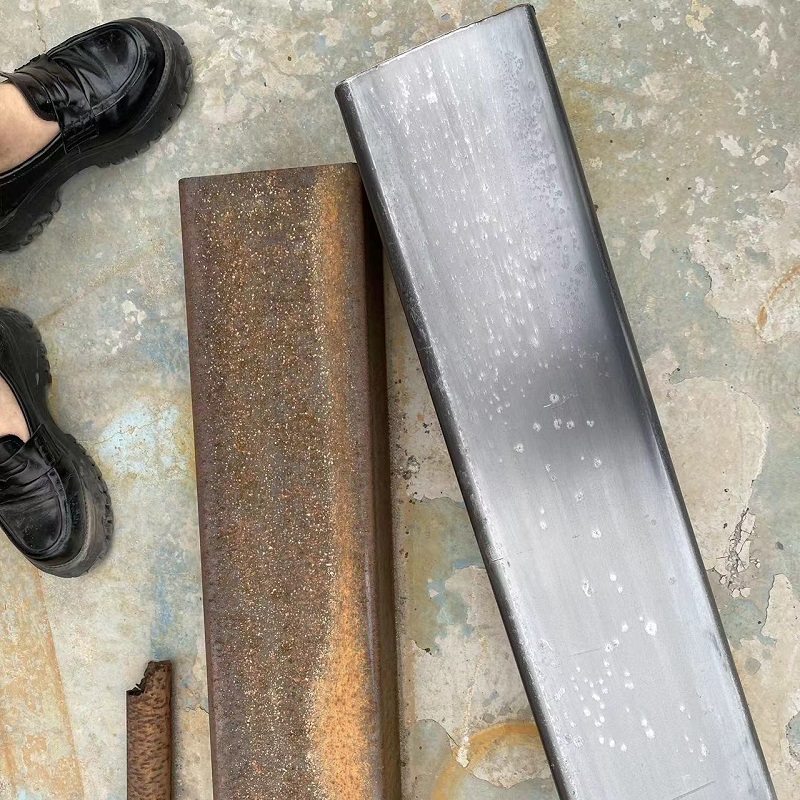

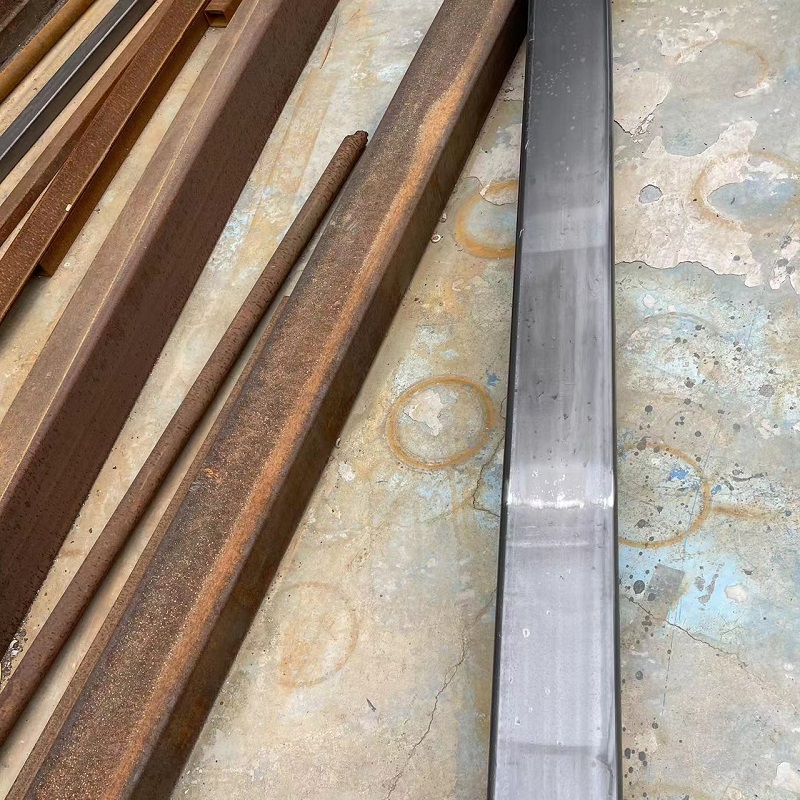

PICTURES OF SQUARE PIPE POLISHING

PRODUCT SPECIFICATION OF SQUARE PIPE POLISHING MACHINE

Square pipe polishing machine
Model no. WSPS-4-120
Working capacity (min.and max.diameter) 10*10mm to 120*120mm
Working capacity (min.and max.pipe length) 500mm to any
Station no. 4
Feeding speed 1-10m/min(adjustable, stepless speed adjusting)
Abrasive wheel speed 2800rpm
Abrasive wheel size Dia250xthickness80mm,hole32mm
Wheel motor 4kw * 4pieces
Feeding motor 0.75kw
Air blower motor 2.2kw
Total power 19kw
Consumption 38A
Voltage 3-phase customized
Standard with 1 set grinding wheel
Gross weight 800kgs
Dimension 1800x1350x1300 (wooden case size)

Item#	WSPS-1-120	Abrasive wheel size	Dia250xthickness80mm
Working capacity	120mm	Wheel motor	4kw x 4pieces
Working capacity	any	Feeding motor	0.75kw
Station no.	1 Station up/down/left/right	Voltage	single-phase / 3-phase
Feeding speed	1-6m/min(adjustable)	Gross weight	1650kgs
Abrasive wheel speed	2800rpm	Dimension	180015001750mm

APPLICATION OF SQUARE POLISHING MACHINE

Mainly used for polishing and drawing the surface of stainless steel pipe with drawing. As the stainless steel polishing machine polishing

technology is mature , widely used in decoration . Convenient operation, high quality, reasonable price, consistent with the quality of domestic

and international market demands, making high-quality, high brightness of the tube.

VIDEO OF SQUARE TUBE POLISH MACHINE

FIND MORE PIPE POLISHING MACHINE

Please click below links to see more options of polishing machines.
ROUND STRAIGHT PIPE POLISHING MACHINE	SINGLE-HEAD PIPE POLISHING MACHINE
ROUND STRAIGHT PIPE POLISHING MACHINE	MULTI-HEAD PIPE POLISHING MACHINE
ROUND BENT PIPE POLISHING MACHINE	BENT PIPE POLISHING MACHINE
ROUND ROD POLISHING MACHINE	BOLT AND ROD POLISHING MACHINE
SQUARE PIPE POLISHING MACHINE	SQUARE AND RECTANGULAR PIPE POLISHING MACHINE
PLATE POLISHING MACHINE	METAL SHEET PLATE POLISHING MACHINE

FIND MORE POLISHING FINISH

Please click below links to see more options of polishing effect.
RUST REMOVAL	REMOVE THE RUST
SATIN POLISHING	SATIN FINISH
HAIR LINE POLISHING	HAIR LINE FINISH
MIRROR POLISHING	MIRROR FINISH
REMOVE PITS	REMOVE ALL PITS

POLISHING MACHINE MANUFACTURER

Hangzhou Wise Machinery Co., Ltd. is a factory based in China for producing and exporting polishing machine.
Our main products pipe polishing machine is suitable for polishing metal tubes such as steel pipe, stainless steel pipe, copper pipe and aluminium piping, etc. We have got a wide variety of pipe polishing machine, for instance the round pipe polishing machine, round bar polishing machine, square and rectangular pipe polishing machine as well as the polishing machine for steel sheet plate. Our goal is to provide our client with the good value and durable polishing machine.

F.A.Q.

Is the rectangular tube / profile / U-steel polishing machine fully automatic?

We have both manual feeding and automatic feeding.

What kind of grinding wheel do we use on our square tubing polishing machine?

We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.

Can the rectangular pipe and tube polishing machine polish four sides of the pipe?

We have two different type machine, one is to polish two side of pipe, while another is 4-side polishing which can polish left, right, top and bottom side in one time.

What is the difference between single-station machine and multi-station polishing machine?

Single-head machine means there is only single one polishing head (with up/down/left/right) four wheels while for multi-head machine there is several working position with different material of polishing wheels. More polishing head bring you brigher grinding finish.

Is this square pipe polishing machine working for both square tube and flat bar?

Yes, it works for both of them.

Who are we?

Hangzhou Wise Machinery Co., Ltd. are professional pipe polishing machine manufacturer located in Xingtai city of China, we are close to Port Tianjin and Port Qingdao. We mainly sell to North America, Europe and the Middle East countries.

How to place order?

We accept T/T payment directly to our company account and we can also accept payment through Paypal. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship from one set.

How we guarantee the quality?

We will test at least one pipes on every polishing machine before shipping out. For all of our machine we offer one year warranty.

How is the packaging?

We use wrapping film and wooden crate to pack each machine.

Do you have machine in stock?

Yes, we have ready stock for regular machines, but if your voltage are different from what are in China we will need 7 to 10days to customize motor for you.
