Round pipe polishing machine

Categories Round Tube Polishing Machine, single station tube polishing machine

Technical Data
Round pipe polishing machine
Model: WSPR-1-100
Capacity of diameter:2-100mm
Station number:one
Feeding speed:0-6m/min(adjustable)
Abrasive wheel speed:1400rpm
Abrasive wheel size:dia250 x thickness80mm, hole32mm
Wheel motor:4kw
Feeding motor:4kw
Total power:4.4kw
Voltage:single phase / three phase
Standard with 1 set polishingwheel
Gross weight:200kgs
Dimension:950x950x1100mm (wooden crate size)

Round pipe polishing machine-PRODUCT DESCRIPTION

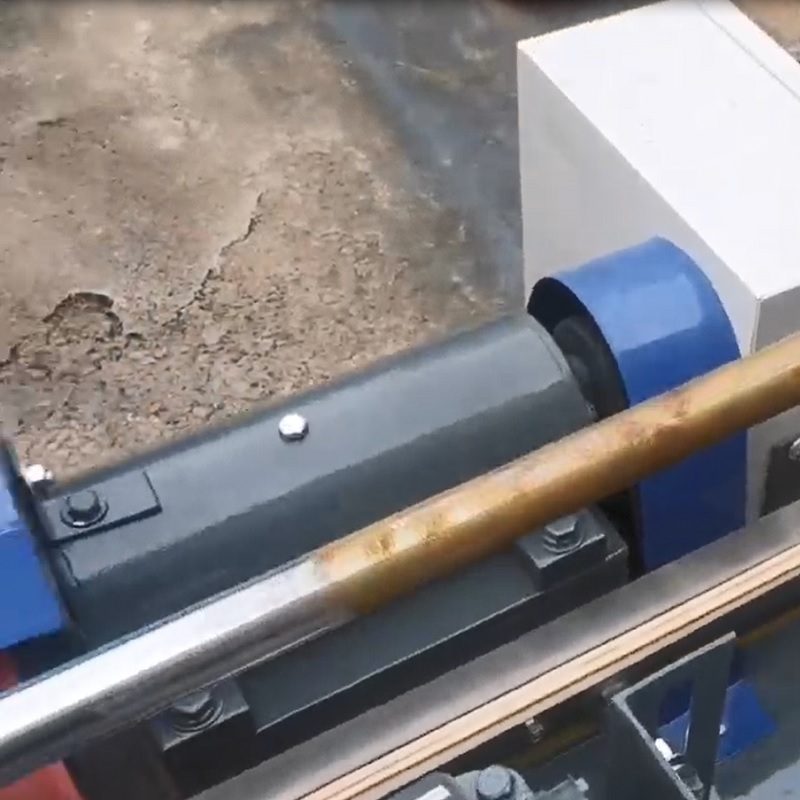

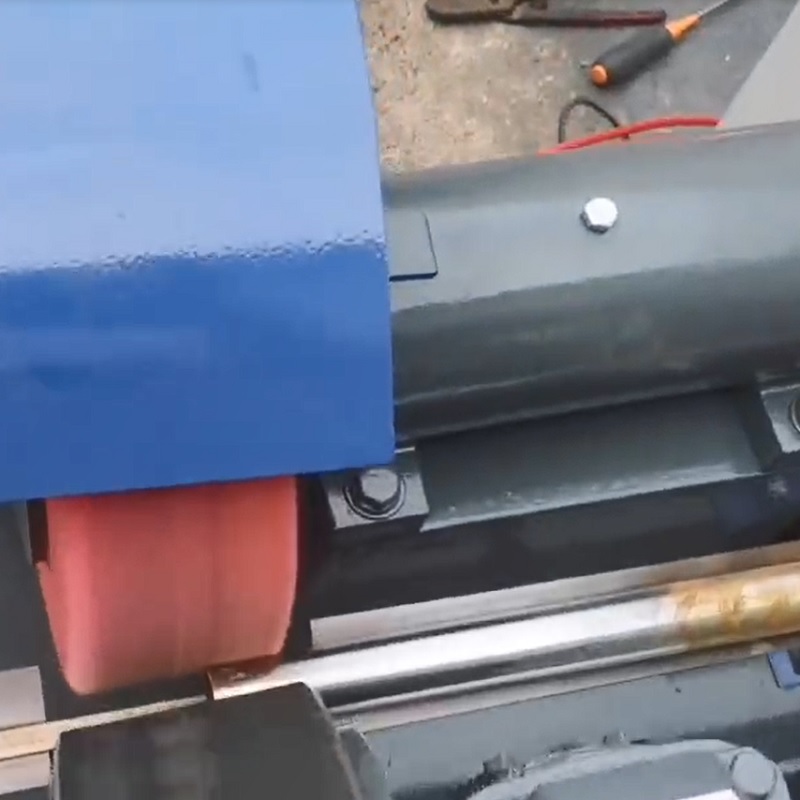

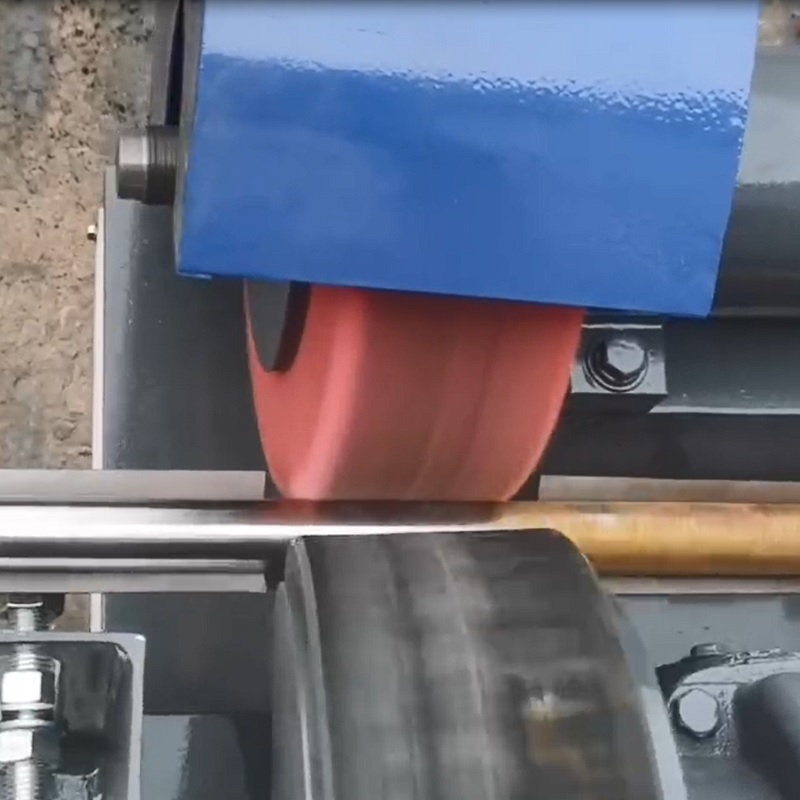

Our round pipe polishing machine can be used for round metal tube and pipe polishing, worker will have to feed the tubing manually into the machine head, there is a polishing wheel driven by the main motor which will polish the tubes automatically and then push it to the outlet. By using different material and grit polishing wheels and choosing a proper speed you can have various finish on the surface of your steel tube.

Item#	WSPR-1-100	Abrasive wheel size	Dia250xthickness80mm
Working capacity	Diameter 2-100mm	Wheel motor	4kw
Working capacity	Length 1-3000mm	Feeding motor	0.4kw
Station no.	1 Station	Voltage	single-phase / 3-phase
Feeding speed	0-6m/min(adjustable)	Gross weight	200kgs
Abrasive wheel speed	2800rpm	Dimension	9509501100mm

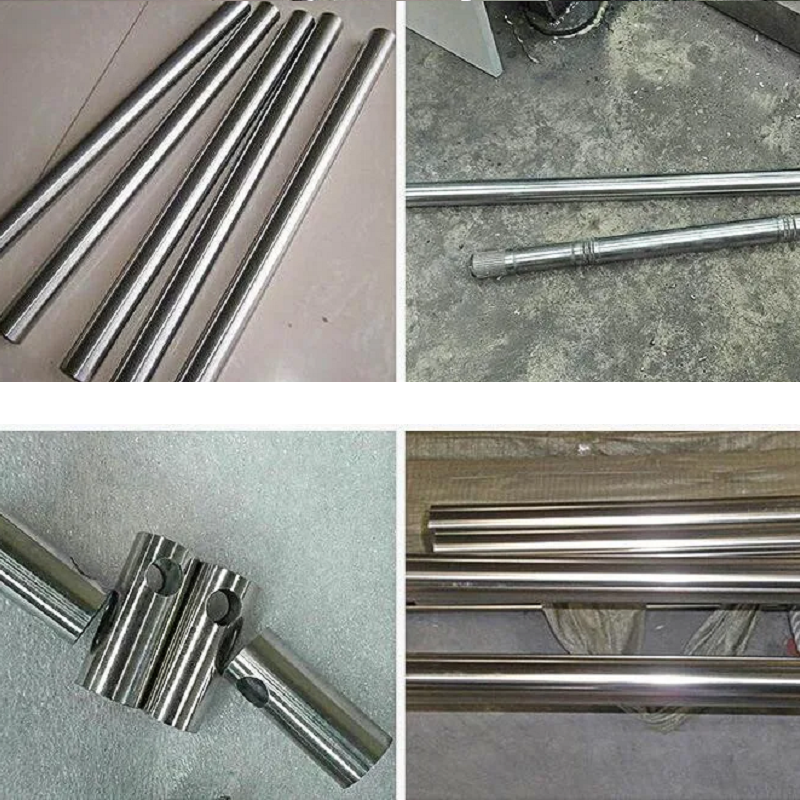

APPLICATION OF ROUND TUBE POLISHING MACHINE

Polishing machine are generally used for below applications.

Steel tube rust removal
Metallic tube coating removing
Satin finishing polishing
Metal tube polishing before powder coating
Tubes polishing before painting
Tubing diameter reducing sanding
Stainless steel tube polishing for mirror finish
Aluminum tube brushed effect grinding
Pipe hair line finish polishing
Copper tube buffing bright and shiny surface

DIFFERENT FINISH OF ROUND PIPE POLISHING MACHINE

Grinding finish: Usually use 60#-80# grit abrasive belt or flap wheels.
Brushed finish: Usually use 120#-180# grit abrasive belt or flap wheels.
Sanitary finish: Usually use 180#-240# grit abrasive belt or flap wheels.
Polished finish: Usually use 240#-320# grit abrasive belt or flap wheels, then use sisal wheel.
Glossy finish: Usually use 400#-600# grit abrasive belt or flap wheels, sisal wheel, common cloth wheel.
Mirror finish: Usually use 600#-800# grit abrasive belt,then use sisal wheel,hard cloth wheel,at last step use cotton wheels to get 100% 8K Mirror finishing.

VIDEO OF PIPES POLISHING MACHINE

FIND MORE POLISHING MACHINE

Please click below links to see more options of polishing machines.
ROUND STRAIGHT PIPE POLISHING MACHINE	SINGLE-HEAD PIPE POLISHING MACHINE
ROUND STRAIGHT PIPE POLISHING MACHINE	MULTI-HEAD PIPE POLISHING MACHINE
ROUND BENT PIPE POLISHING MACHINE	BENT PIPE POLISHING MACHINE
ROUND ROD POLISHING MACHINE	BOLT AND ROD POLISHING MACHINE
SQUARE PIPE POLISHING MACHINE	SQUARE AND RECTANGULAR PIPE POLISHING MACHINE
PLATE POLISHING MACHINE	METAL SHEET PLATE POLISHING MACHINE

FIND MORE POLISHING FINISH

Please click below links to see more options of polishing effect.
RUST REMOVAL	REMOVE THE RUST
SATIN POLISHING	SATIN FINISH
HAIR LINE POLISHING	HAIR LINE FINISH
MIRROR POLISHING	MIRROR FINISH
REMOVE PITS	REMOVE ALL PITS

POLISHING MACHINE MANUFACTURER

Hangzhou Wise Machinery Co., Ltd. is a factory based in China for producing and exporting polishing machine.
Our main products is suitable for polishing metal tubes such as steel pipe, stainless steel pipe, copper pipe and aluminium piping, etc. We have got a wide variety of polishing machine, for instance the round pipe, round bar, square and rectangular polishing as well as the polishing machine for steel sheet plate. Our goal is to provide our client with the good value and durable polishing machine.

F.A.Q.

Who are we?

Hangzhou Wise Machinery Co., Ltd. are professional pipe polishing machine manufacturer located in Xingtai city of China, we are close to Port Tianjin and Port Qingdao. We mainly sell to North America, Europe and the Middle East countries.

How to place order?

We accept T/T payment directly to our company account and we can also accept payment through Paypal. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship from one set.

How we guarantee the quality?

We will test at least one pipes on every polishing machine before shipping out. For all of our machine we offer one year warranty.

How is the packaging?

We use wrapping film and wooden crate to pack each machine.

What accessories are included in machine?

One set free abrasive wheel for every machine. The multi-station machine also comes with air blower and dust collector. Every machine has an english manual instruction.

If the budget is limited, can I just purchase a single-station machine and change polishing wheels to get similar function as a multi-head machine?

Yes, this is possible, if you polish small quantity pipes, you can first put on a rough polishing wheels on single-head machine and after all pipes are done for first time polishing, change to another fine polishing wheel and repeat.

Is the tube polishing machine fully automatic?

We have both manual feeding and automatic feeding tube polishing machine.

What is the assembly size of the abrasive wheel?

Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.

What is the difference between single-station machine and multi-station polishing machine?

Single-head machine means there is only single one grinding wheel, while for multi-head machine there is several working position with different material of buffing wheels.

Do you have machine in stock?

Yes, we have ready stock for regular machines, but if your voltage are different from what are in China we will need 7 to 10days to customize motor for you.

What is the main function of a metal tube polishing machine?

Tube polishing machine is used for polishing the surface of a metal round, square and rectangular tube. The tube will be automatically feed in the machine. After passing through the polishing heads the tubing comes out automatically to inspection table.

What is the life span of the polishing wheel?

Each abrasive wheel work for polishing 3500meters tubes.

What kind of abrasive wheel do we use on our polishing machine?

We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.

Is this pipe polishing machine working for both round pipe and round bolt?

Yes, it works for both of them.
