PVC pipe polishing
- PVC pipe polishing machine
- Model:WSPR-1-100
- Working capacity (min.and max.diameter):2-100mm
- Working capacity (min.and max.pipe length):1-3000mm
- Station no.:1
- Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed: 2800rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw
- Feeding motor:4kw
- Total power:4kw
- Consumption:9A
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:200kgs
- Dimension:950x950x1100mm (wooden case size)
PVC pipe polishing-PRODUCT DESCRIPTION
PVC pipe polishing machine are suitable for polishing plastic pipe in different sizes and diameters . It is used for polishing the outer surface of various plastic rods and pipe by an abrasive wheel.
TECHNICAL DATA OF PVC PIPE POLISHING MACHINE
- Model:WSPR-1-100
- Working capacity (min.and max.diameter):2-100mm
- Working capacity (min.and max.pipe length):1-3000mm
- Station no.:1
- Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed: 2800rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw
- Feeding motor:4kw
- Total power:4kw
- Consumption:9A
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:200kgs
- Dimension:950x950x1100mm (wooden case size)

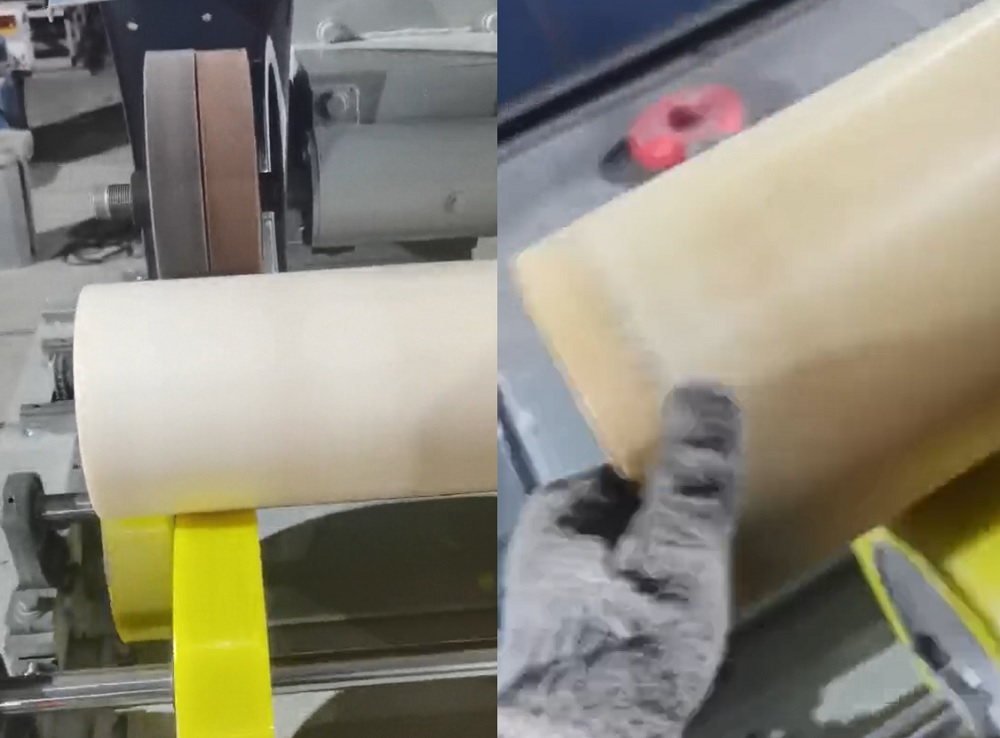

VIDEO OF HOW TO POLISH A PVC PIPE

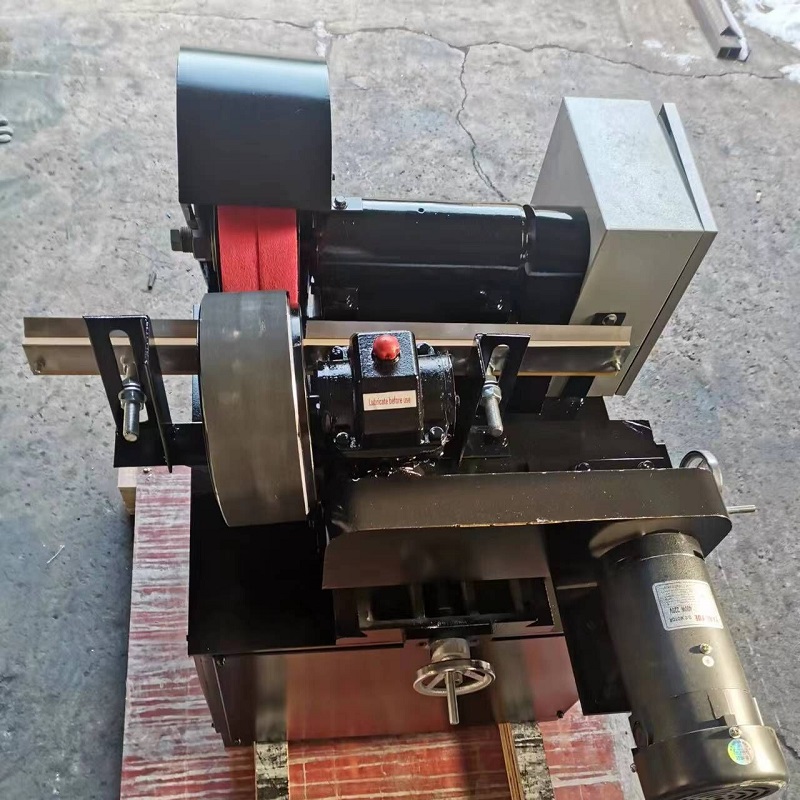

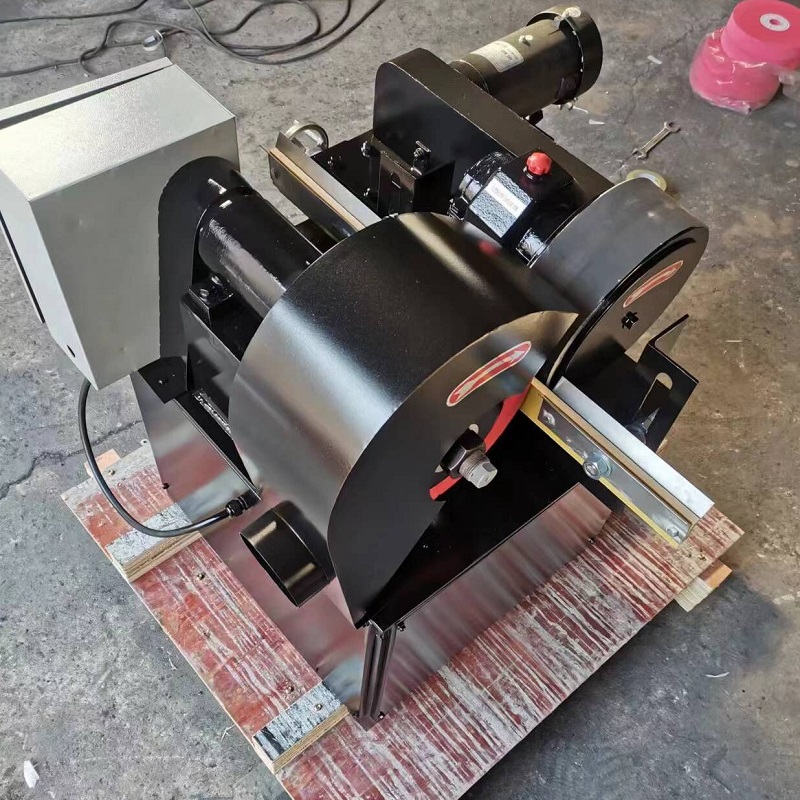

PICTURES OF PVC TUBE POLISHING MACHINE

F.A.Q.
Hangzhou Wise Machinery Co., Ltd. are professional pipe polishing machine manufacturer located in Xingtai city of China, we are close to Port Tianjin and Port Qingdao. We mainly sell to North America, Europe and the Middle East countries.
We accept T/T payment directly to our company account and we can also accept payment through Paypal. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship from one set.
We will test at least one pipes on every polishing machine before shipping out. For all of our machine we offer one year warranty.
We use wrapping film and wooden crate to pack each machine.
One set free abrasive wheel for every machine. The multi-station machine also comes with air blower and dust collector. Every machine has an english manual instruction.
Yes, this is possible, if you polish small quantity pipes, you can first put on a rough polishing wheels on single-head machine and after all pipes are done for first time polishing, change to another fine polishing wheel and repeat.
We have both manual feeding and automatic feeding tube polishing machine.
Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.
Single-head machine means there is only single one grinding wheel, while for multi-head machine there is several working position with different material of buffing wheels.
Yes, we have ready stock for regular machines, but if your voltage are different from what are in China we will need 7 to 10days to customize motor for you.
Tube polishing machine is used for polishing the surface of a metal round, square and rectangular tube. The tube will be automatically feed in the machine. After passing through the polishing heads the tubing comes out automatically to inspection table.
Each abrasive wheel work for polishing 3500meters tubes.
We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.
Yes, it works for both of them.
