GRP pipe polishing machine
- Technical Details
- GRP pipe polishing machine
- Model no.: WSPR-4-200
- Working capacity (min.and max.diameter) :20-200mm
- Working capacity (min.and max.pipe length):500mm to any
- Station no.:4
- Feeding speed : 1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed:2800rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw * 4pieces
- Feeding motor:75kw
- Air blower motor:2kw
- Total power:19kw
- Voltage:3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:1000kgs
- Dimension:2460x1100x1200 (wooden case size)
GRP pipe polishing machine-PRODUCT DESCRIPTION
GRP pipe polishing machine is for glass-reinforced plastics pipe polishing. In China, for polishing GRP pipe half client use 4-station machine, while the other client use 6-station machine. 4-station machine is standard with four working position (polishing head) which makes it possible to polish one pipe 4 times in one time passing by. We can put different material buffing wheels in each working position so that we can get both rough polishing and fine polishing done in a short time. If you have enough space in your factory, you can also choose 6-station GRP pipe polishing machine.
SPECIFICATION OF GRP PIPE GRINDING MACHINE
- Technical Details
- GRP pipe polishing machine
- Model no.: WSPR-4-200
- Working capacity (min.and max.diameter) :20-200mm
- Working capacity (min.and max.pipe length):500mm to any
- Station no.:4
- Feeding speed : 1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed:2800rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw * 4pieces
- Feeding motor:75kw
- Air blower motor:2kw
- Total power:19kw
- Voltage:3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:1000kgs
- Dimension:2460x1100x1200 (wooden case size)

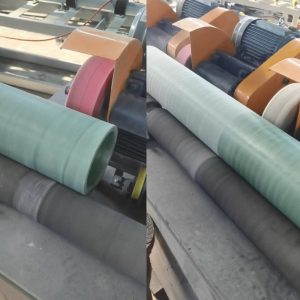

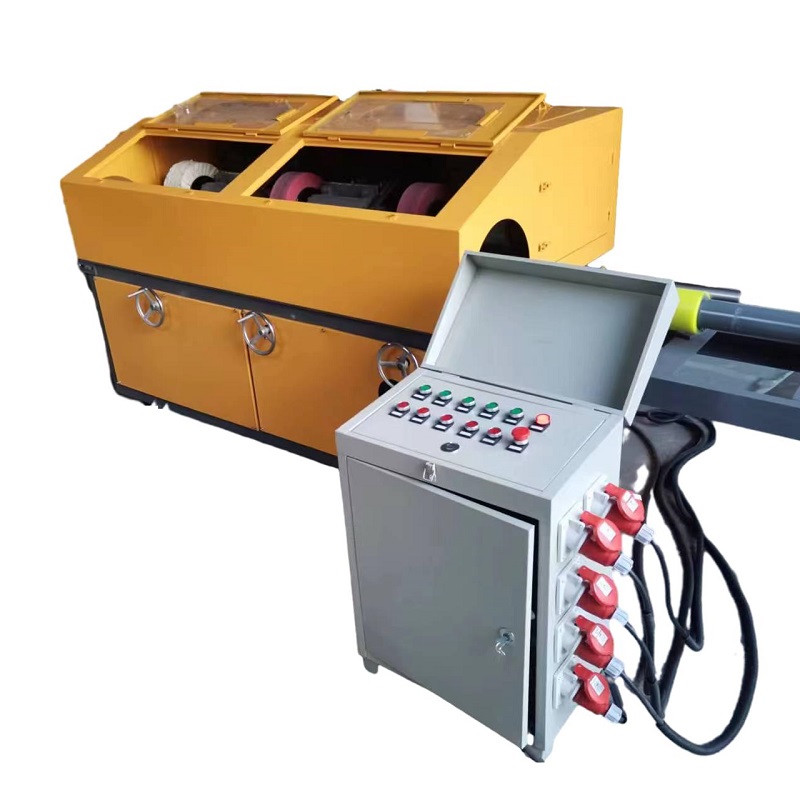

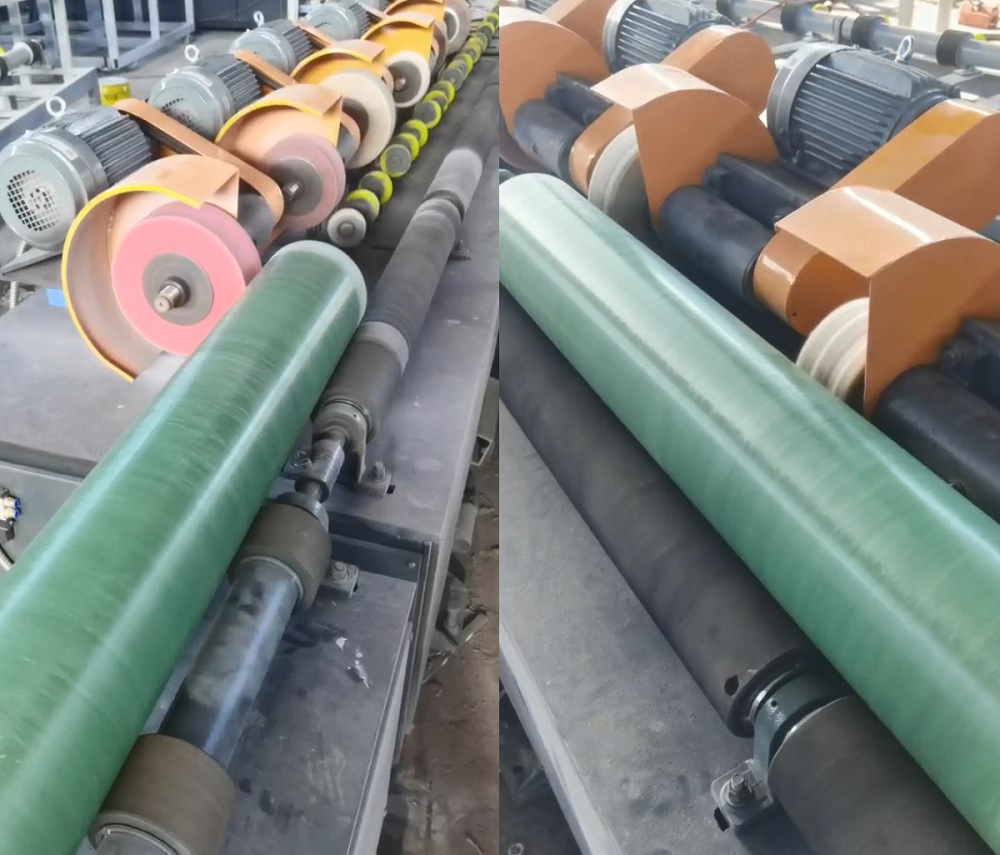

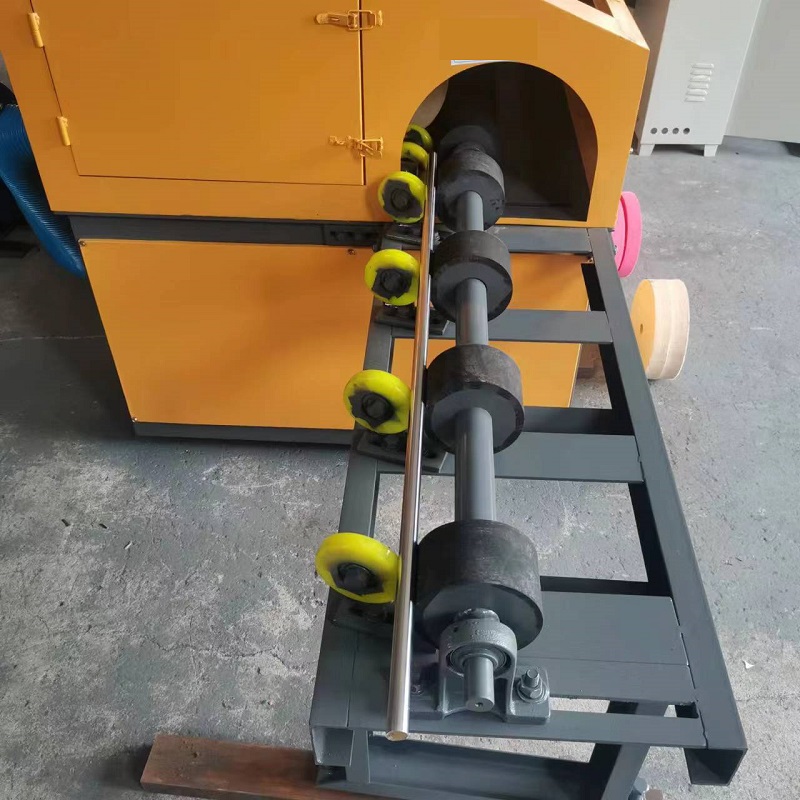

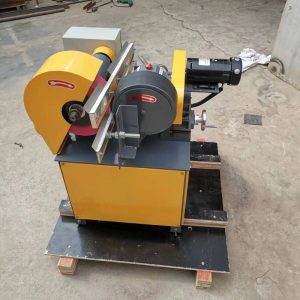

PICTURE OF GRP PIPE POLISHING MACHINE
VIDEO OF GRP PIPE POLISHING MACHINE


FIND MORE PIPE POLISHING MACHINE
| Please click below links to see more options of polishing machines. | |
| ROUND STRAIGHT PIPE POLISHING MACHINE | SINGLE-HEAD PIPE POLISHING MACHINE |
| MULTI-HEAD PIPE POLISHING MACHINE | |
| ROUND BENT PIPE POLISHING MACHINE | BENT PIPE POLISHING MACHINE |
| ROUND ROD POLISHING MACHINE | BOLT AND ROD POLISHING MACHINE |
| SQUARE PIPE POLISHING MACHINE | SQUARE AND RECTANGULAR PIPE POLISHING MACHINE |
| PLATE POLISHING MACHINE | METAL SHEET PLATE POLISHING MACHINE |
FIND MORE POLISHING FINISH
| Please click below links to see more options of polishing effect. | |
| RUST REMOVAL | REMOVE THE RUST |
| SATIN POLISHING | SATIN FINISH |
| HAIR LINE POLISHING | HAIR LINE FINISH |
| MIRROR POLISHING | MIRROR FINISH |
| REMOVE PITS | REMOVE ALL PITS |
POLISHING MACHINE MANUFACTURER
Hangzhou Wise Machinery Co., Ltd. is a factory based in China for producing and exporting polishing machine.
Our main products pipe polishing machine is suitable for polishing metal tubes such as steel pipe, stainless steel pipe, copper pipe and aluminium piping, etc. We have got a wide variety of pipe polishing machine, for instance the round pipe polishing machine, round bar polishing machine, square and rectangular pipe polishing machine as well as the polishing machine for steel sheet plate. Our goal is to provide our client with the good value and durable polishing machine.
F.A.Q.
Hangzhou Wise Machinery Co., Ltd. are professional pipe polishing machine manufacturer located in Xingtai city of China, we are close to Port Tianjin and Port Qingdao. We mainly sell to North America, Europe and the Middle East countries.
We accept T/T payment directly to our company account and we can also accept payment through Paypal. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship from one set.
We will test at least one pipes on every polishing machine before shipping out. For all of our machine we offer one year warranty.
We use wrapping film and wooden crate to pack each machine.
One set free abrasive wheel for every machine. The multi-station machine also comes with air blower and dust collector. Every machine has an english manual instruction.
Yes, this is possible, if you polish small quantity pipes, you can first put on a rough polishing wheels on single-head machine and after all pipes are done for first time polishing, change to another fine polishing wheel and repeat.
We have both manual feeding and automatic feeding tube polishing machine.
Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.
Single-head machine means there is only single one grinding wheel, while for multi-head machine there is several working position with different material of buffing wheels.
Yes, we have ready stock for regular machines, but if your voltage are different from what are in China we will need 7 to 10days to customize motor for you.
Tube polishing machine is used for polishing the surface of a metal round, square and rectangular tube. The tube will be automatically feed in the machine. After passing through the polishing heads the tubing comes out automatically to inspection table.
Each abrasive wheel work for polishing 3500meters tubes.
We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.
Yes, it works for both of them.
