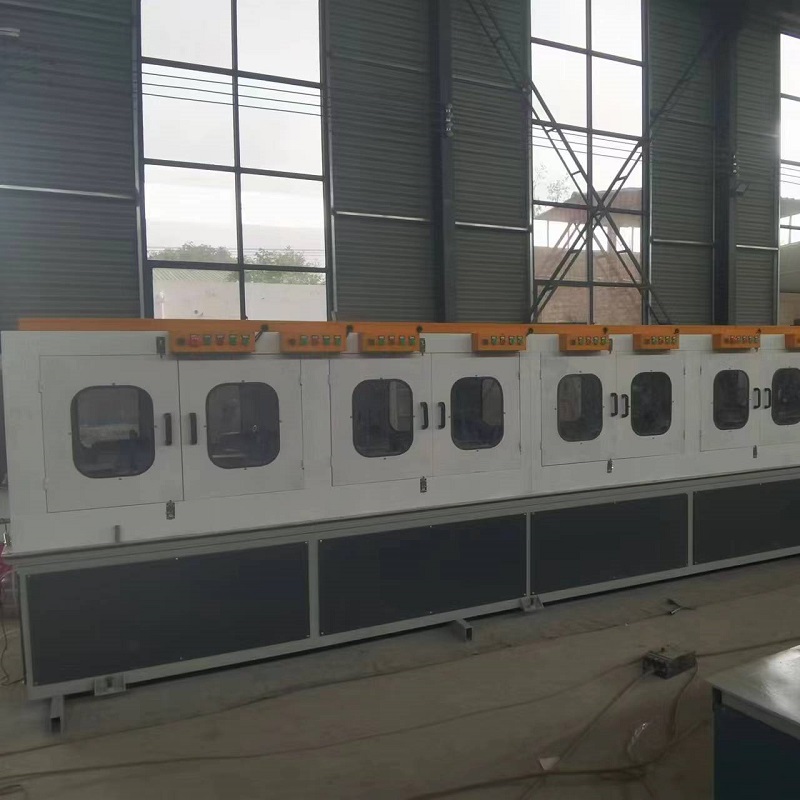

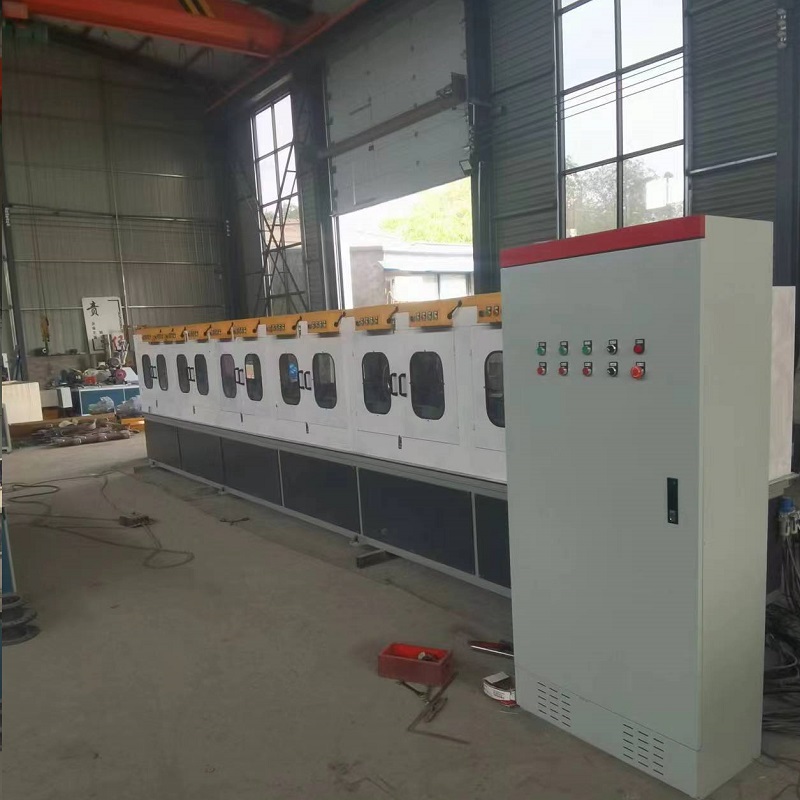

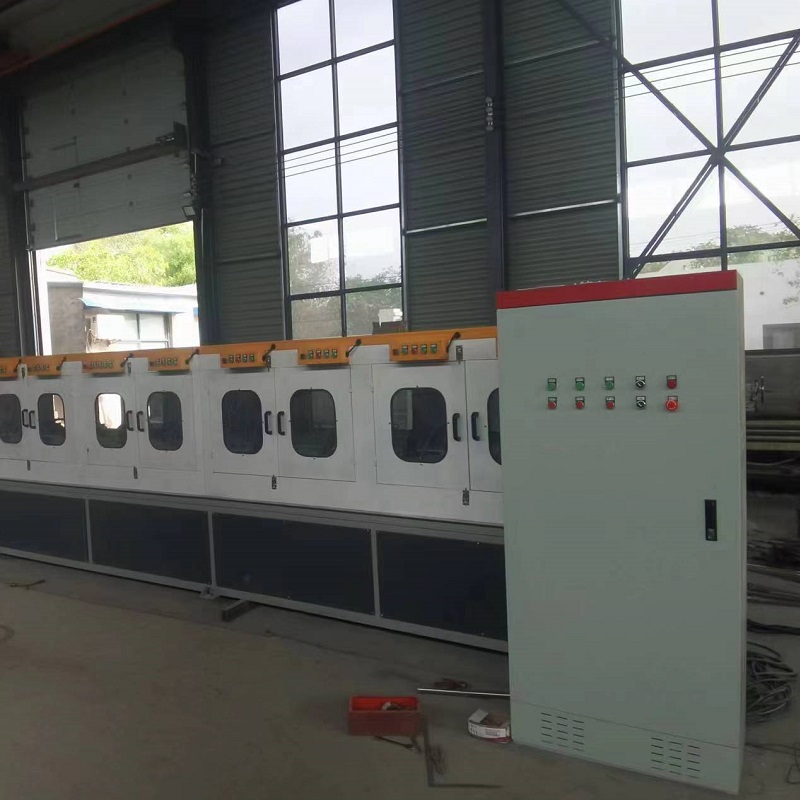

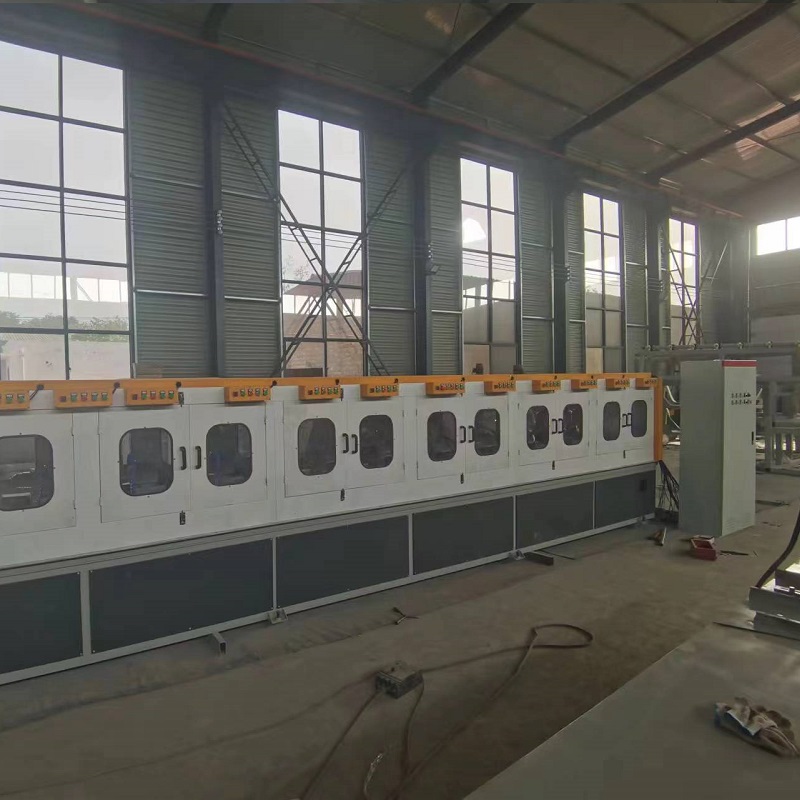

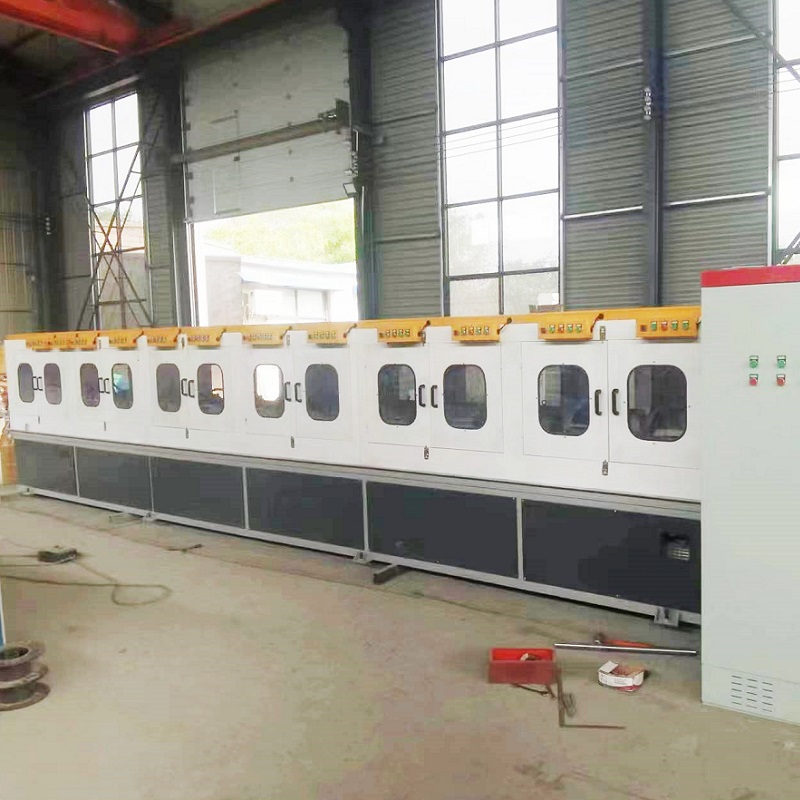

12-Station mirror finish pipe polishing machine

  • Technical Details
  • 12-Station mirror finishpipe polishing machine
  • Model no.: WSPR-12-160
  • Working capacity (min.and max.diameter):12-160mm
  • Working capacity (min.and max.pipe length):500mm to any
  • Working station no.:12
  • Feeding speed:1-15m/min(adjustable, stepless speed adjusting)
  • Abrasive wheel speed:2800rpm
  • Abrasive wheel size:Dia250xthickness80mm,hole32mm
  • Wheel motor:4kw * 12pieces
  • Feeding motor:5kw
  • Air blower motor:2kw * 4pieces
  • Total power:58kw
  • Consumption:116A
  • Voltage:3-phase customized
  • Standard with 1 set=12pcsgrinding wheel
  • Gross weight:3000kgs
  • Dimension:7400x1100x1200 (wooden case size)

12-Station mirror finish pipe polishing machine-PRODUCT DESCRIPTION

12-Station mirror finish pipe polishing machine have twelve working position (polishing head) which makes it possible to polish one pipe twelve times. We can put different material buffing wheels in each working position so that we can get both rough polishing and fine polishing done in a short time. This machine work well for mirror finish.

12-Station mirror finish pipe polishing machine

TECHNICAL DATA OF 12-HEAD MIRROR PIPE POLISHING MACHINE

  • Technical Details
  • 12-Station mirror finish pipe polishing machine
  • Model no.: WSPR-12-160
  • Working capacity (min.and max.diameter):12-160mm
  • Working capacity (min.and max.pipe length):500mm to any
  • Working station no.:12
  • Feeding speed:1-15m/min(adjustable, stepless speed adjusting)
  • Abrasive wheel speed:2800rpm
  • Abrasive wheel size:Dia250xthickness80mm,hole32mm
  • Wheel motor:4kw * 12pieces
  • Feeding motor:5kw
  • Air blower motor:2kw * 4pieces
  • Total power:58kw
  • Consumption:116A
  • Voltage:3-phase customized
  • Standard with 1 set=12pcsgrinding wheel
  • Gross weight:3000kgs
  • Dimension:7400x1100x1200 (wooden case size)

VIDEO OF TWELVE STATION MULTI-HEAD POLISHING MACHINE

FIND MORE PIPE POLISHING MACHINE

Please click below links to see more options of polishing machines.
ROUND STRAIGHT PIPE POLISHING MACHINE SINGLE-HEAD PIPE POLISHING MACHINE
MULTI-HEAD PIPE POLISHING MACHINE
ROUND BENT PIPE POLISHING MACHINE BENT PIPE POLISHING MACHINE
ROUND ROD POLISHING MACHINE BOLT AND ROD POLISHING MACHINE
SQUARE PIPE POLISHING MACHINE SQUARE AND RECTANGULAR PIPE POLISHING MACHINE
PLATE POLISHING MACHINE METAL SHEET PLATE POLISHING MACHINE

FIND MORE POLISHING FINISH

Please click below links to see more options of polishing effect.
RUST REMOVAL REMOVE THE RUST
SATIN POLISHING SATIN FINISH
HAIR LINE POLISHING HAIR LINE FINISH
MIRROR POLISHING MIRROR FINISH
REMOVE PITS REMOVE ALL PITS

POLISHING MACHINE MANUFACTURER

Hangzhou Wise Machinery Co., Ltd. is a factory based in China for producing and exporting polishing machine.
Our main products pipe polishing machine is suitable for polishing metal tubes such as steel pipe, stainless steel pipe, copper pipe and aluminium piping, etc. We have got a wide variety of pipe polishing machine, for instance the round pipe polishing machine, round bar polishing machine, square and rectangular pipe polishing machine as well as the polishing machine for steel sheet plate. Our goal is to provide our client with the good value and durable polishing machine.

F.A.Q.

Who are we?

Hangzhou Wise Machinery Co., Ltd. are professional pipe polishing machine manufacturer located in Xingtai city of China, we are close to Port Tianjin and Port Qingdao. We mainly sell to North America, Europe and the Middle East countries.

How to place order?

We accept T/T payment directly to our company account and we can also accept payment through Paypal. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship from one set.

How we guarantee the quality?

We will test at least one pipes on every polishing machine before shipping out. For all of our machine we offer one year warranty.

How is the packaging?

We use wrapping film and wooden crate to pack each machine.

What accessories are included in machine?

One set free abrasive wheel for every machine. The multi-station machine also comes with air blower and dust collector. Every machine has an english manual instruction.

If the budget is limited, can I just purchase a single-station machine and change polishing wheels to get similar function as a multi-head machine?

Yes, this is possible, if you polish small quantity pipes, you can first put on a rough polishing wheels on single-head machine and after all pipes are done for first time polishing, change to another fine polishing wheel and repeat.

Is the tube polishing machine fully automatic?

We have both manual feeding and automatic feeding tube polishing machine.

What is the assembly size of the abrasive wheel?

Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.

What is the difference between single-station machine and multi-station polishing machine?

Single-head machine means there is only single one grinding wheel, while for multi-head machine there is several working position with different material of buffing wheels.

Do you have machine in stock?

Yes, we have ready stock for regular machines, but if your voltage are different from what are in China we will need 7 to 10days to customize motor for you.

What is the main function of a metal tube polishing machine?

Tube polishing machine is used for polishing the surface of a metal round, square and rectangular tube. The tube will be automatically feed in the machine. After passing through the polishing heads the tubing comes out automatically to inspection table.

What is the life span of the polishing wheel?

Each abrasive wheel work for polishing 3500meters tubes.

What kind of abrasive wheel do we use on our polishing machine?

We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.

Is this pipe polishing machine working for both round pipe and round bolt?

Yes, it works for both of them.
